Festo 159585 Filter Regulator Unit
New
In stock1 unitReady to ship
Filter Regulator Unit
Festo LFR-D-MIDI-A filter regulator unit designed for industrial pneumatic systems, providing compressed air filtration, accurate pressure regulation, and stable airflow. The unit supports MIDI size installations and is suitable for applications requiring clean air supply and reliable pressure control.AirComponentCompressedFestofilterIndustrialLFR-D-Midi-AMidiPneumaticPreparationPressureregulatorSizeUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

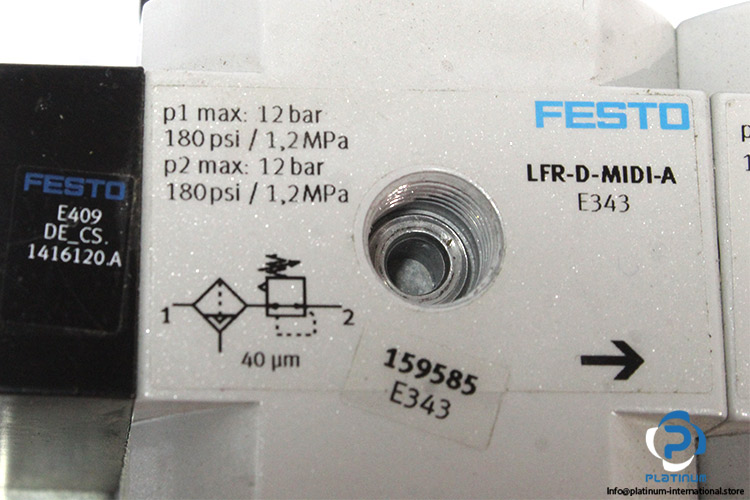

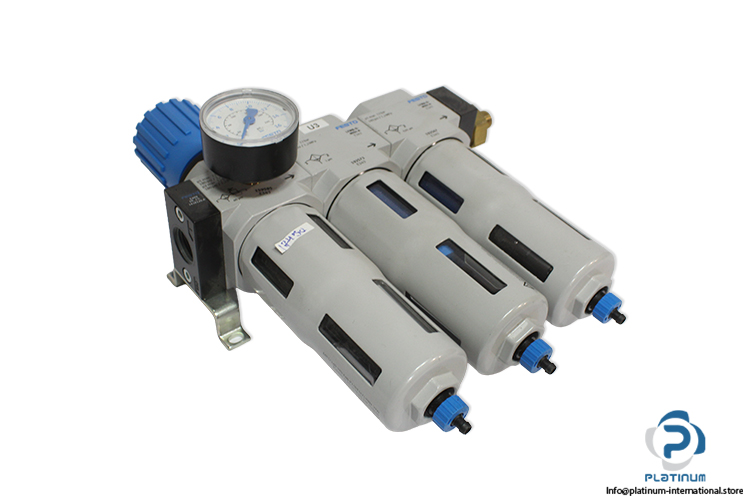

Festo LFR-D-MIDI-A Filter Regulator Unit
A high-performance filter regulator unit manufactured by Festo, designed to supply clean compressed air and provide precise pressure regulation in industrial pneumatic systems. This MIDI-size unit is engineered for stable operation, high nominal flow capacity, and reliable long-term performance in automation equipment and industrial machinery applications.
Manufacturer: Festo
Type: Filter Regulator Unit
Model: LFR-D-MIDI-A
Part No.: 159585
Code: E343
| Series | D |
| Size | Midi |
| Fluid | Compressed Air |
| Body Size | 30 |
| Grade of Filtration | 40 µm |
| P1 Max. | 12 bar / 180 PSI / 1.2 MPa |
| P2 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Operating Pressure Range | 2 to 12 bar |
| Pressure Regulation Range | 0.5 to 12 bar |
| Standard Nominal Flow Rate | 3400 l/min |
| Ambient and Fluid Temperature | 5 to 60 °C |
| Port Size | G 1/2 |
| Bowl Guard | Metal Bowl Guard |
| Housing Material | Die-Cast Zinc |

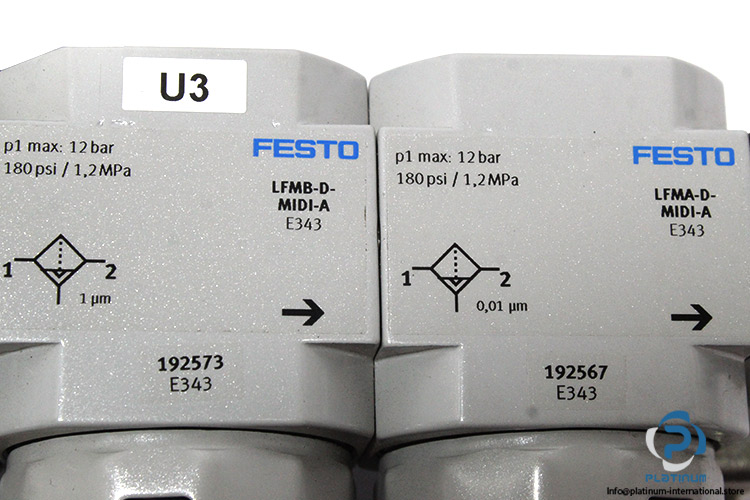

| Attachment “ FESTO 192573 FINE FILTER Manufacturer | Festo |
| Part No. | 192573 |
| Code | E343 |
| Operating Medium | Compressed Air |
| Series | D |
| Size | Midi |
| Design | Fibre Filter |
| Grade of Filtration | 1 µm |
| Condensate Drain | Fully Automatic |
| Operating Pressure P1 Max. | 12 bar / 180 PSI / 1.2 MPa |
| Attachment “ FESTO 192567 MICRO FILTER Manufacturer | Festo |
| Part No. | 192567 |
| Code | E343 |
| Operating Medium | Compressed Air |
| Series | D |
| Size | Midi |
| Design | Fibre Filter |
| Grade of Filtration | 0.01 µm |
| Condensate Drain | Fully Automatic |
| Pneumatic Connection | Sub-Base |
| Operating Pressure P1 Max. | 12 bar / 180 PSI / 1.2 MPa |

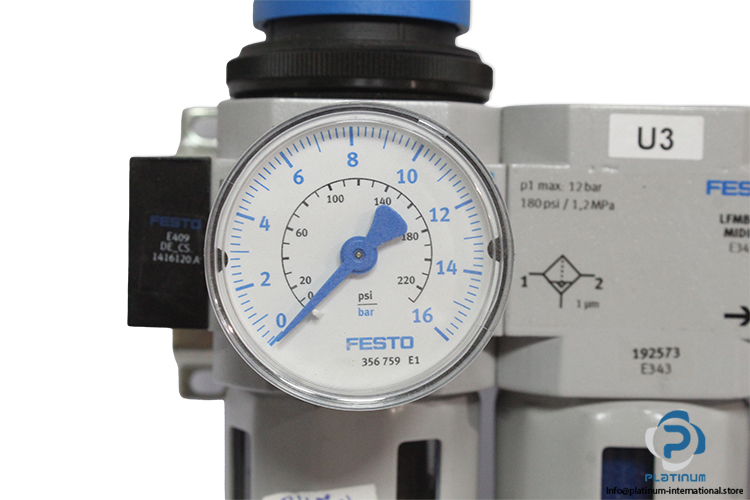

| Attachment “ FESTO 356759 PRESSURE GAUGE Manufacturer | Festo |
| Part No. | 356759 |
| Operating Medium | Inert Gases, Neutral Fluids |
| Pressure Range | 0 to 16 bar |
| Nominal Size of Pressure Gauge | 50 |
| Pneumatic Connection | G 1/4 |
| Materials in Contact with Media | Brass |
| Material Housing | ABS |
| Ambient Temperature | -20 to 60 °C |
