Festo 159604 Service Unit
New
In stock4 unitsReady to ship
Service Unit and Pressure Gauge
The Festo FRC-1/8-D-MINI service unit features a filter regulator, pressure gauge, and mist lubricator for efficient air system management. The Festo PAGN-40-16-G18 pressure gauge is designed for precise pressure monitoring in industrial pneumatic applications.AirComponentsCompressedFestofilterFRC-1/8-D-MINIGaugeLubricatorMistPAGN-40-16-G18PneumaticPressureProportionalregulatorServiceSystemUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

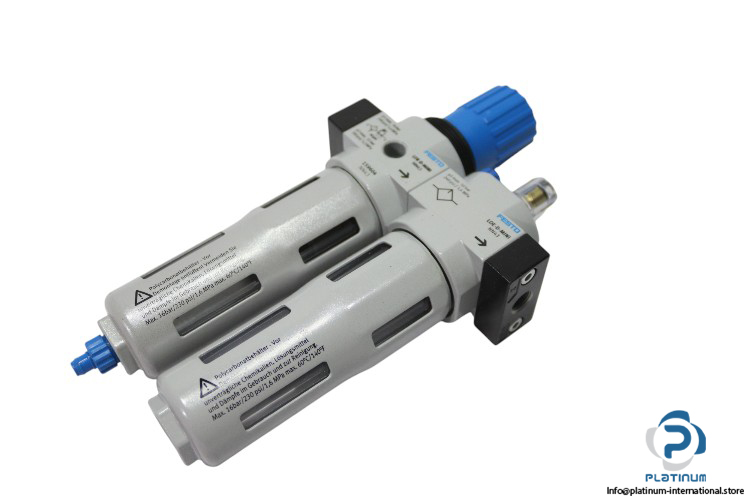

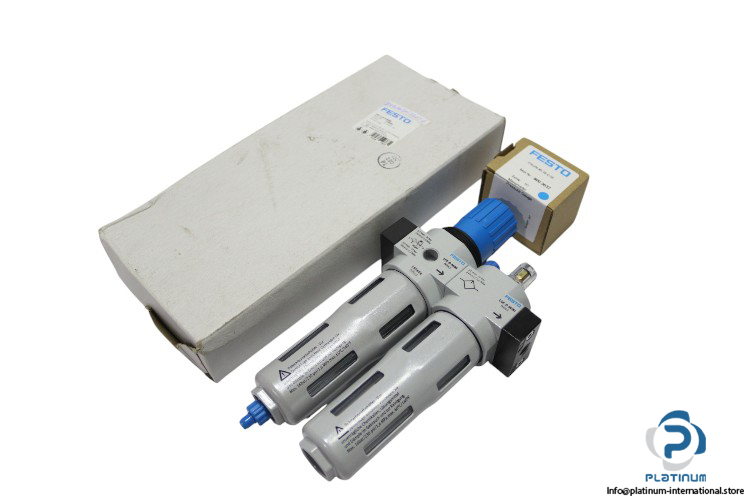

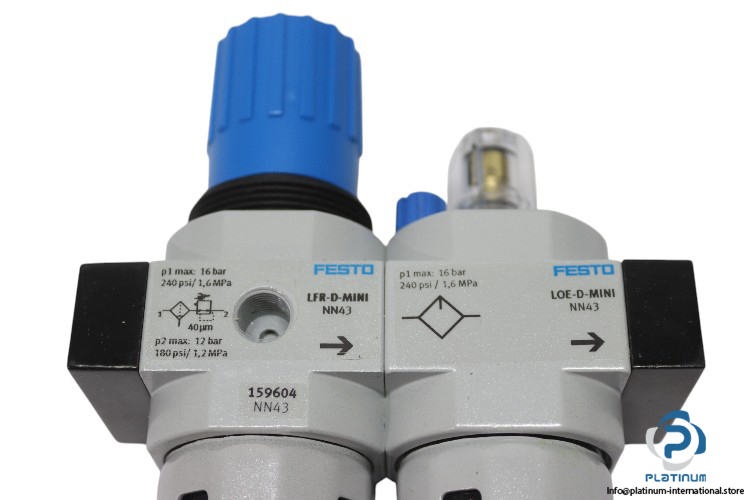

Festo FRC-1/8-D-MINI “ Service Unit
The Festo FRC-1/8-D-MINI service unit offers efficient fluid control in compressed air systems. It includes a filter regulator with a pressure gauge, a proportional standard mist lubricator, and a manual condensate drain, making it an ideal choice for industrial pneumatic applications.
Manufacturer: Festo
Type: Service Unit
Model: FRC-1/8-D-MINI / LFR-D-MINI / LOE-D-MINI
Part No: 159604

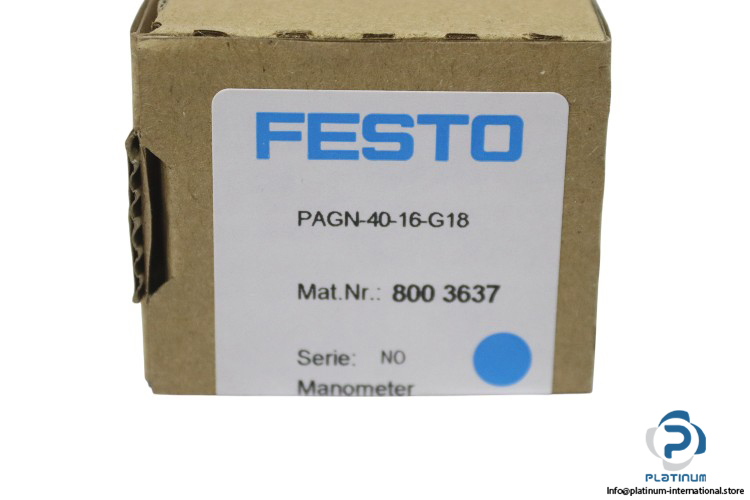

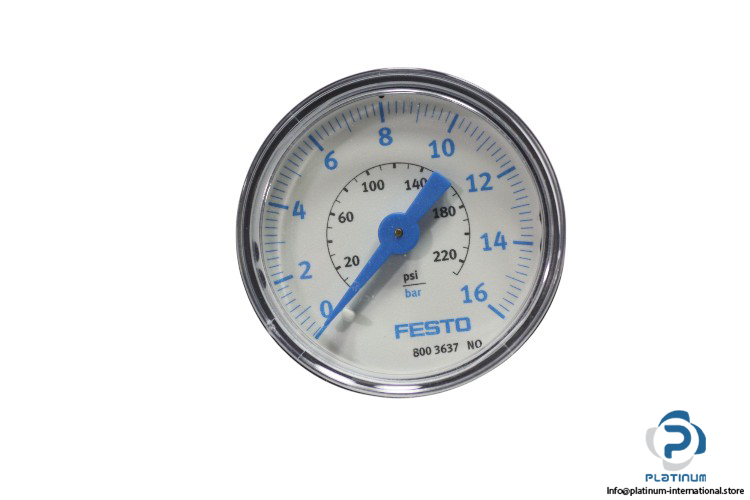

Festo PAGN-40-16-G18 “ Pressure Gauge
The Festo PAGN-40-16-G18 pressure gauge is a high-quality component for accurate pressure monitoring in pneumatic systems. It is designed to work seamlessly with various Festo service units and other industrial applications.
| Actuator Lock | Rotary knob with detent |
| Design | Filter regulator with pressure gauge, Proportional standard mist lubricator |
| Condensate Drain | Manually rotating |
| Operating Medium | Compressed air |
| Max. Condensate Volume | 22 cm³ |
| Working Pressure | 1 to 16 bar |
| Standard Nominal Flow Rate | 700 l/min |
| Ambient Temperature | -10 to +60 °C |
| Pneumatic Connection | G1/8 |
| Material Housing | Die-cast zinc |
| Material Bowl | PC |
| Attachment | FESTO 8003637 Pressure Gauge |
| Part No. | 800 3637 |
