Festo 159631 AIR Preperation Unit
Used
In stock1 unitReady to ship
FILTER REGULATOR WITH SHUT OFF VALVES
FESTO LFR-D-MINI filter regulator with HEL-D-MINI and HEE-D-MINI-24 shut off valves for precise air regulation and controlled shut-off in compact pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

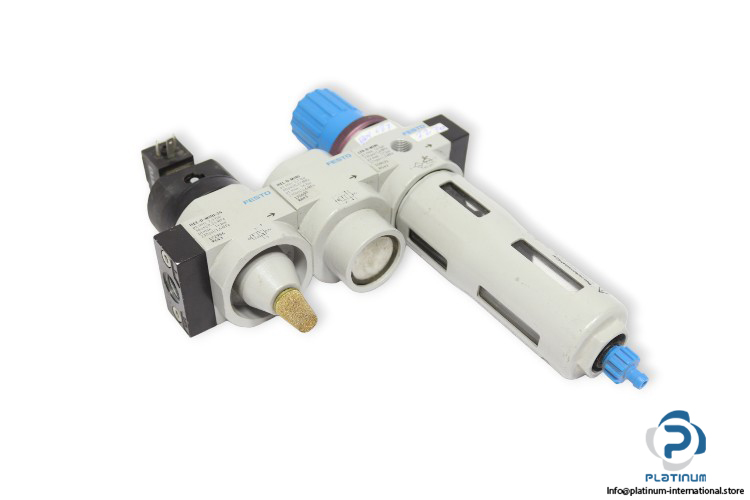

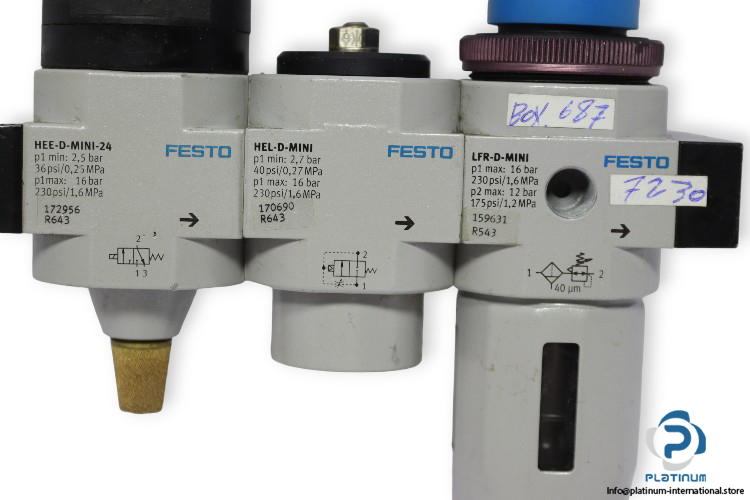

FESTO LFR-D-MINI FILTER REGULATOR WITH SHUT OFF VALVES
The FESTO LFR-D-MINI is a high-performance filter regulator engineered for precise pressure control in compact pneumatic systems. It includes two FESTO shut off valves “ HEL-D-MINI and HEE-D-MINI-24 “ for enhanced safety and operational flexibility.
Manufacturer: FESTO
Type: Filter Regulator
Model: LFR-D-MINI
Part No.: 159631
Technical Information “ Filter Regulator
- Size: MINI
- Pressure Regulation Range: 0.5 / 12 bar
- Operating Pressure: 1 / 16 bar
- Nominal Flow Rate: 1400 l/min
- Connection: G1/4
- Grade of Filtration: 40 micron
- Housing Material: Die-cast zinc
- Fluid Temperature Range: -10 / 60°C
Attachment “ FESTO HEL-D-MINI Shut Off Valve
Manufacturer: FESTO
Type: Shut Off Valve
Model: HEL-D-MINI
Part No.: 170690
- Size: MINI
- Valve Function: 2/2, Closed, Monostable
- Flow Direction: Non-Reversible
- Operating Pressure: 3 / 16 bar
- Structural Design: Piston Gate Valve
Attachment “ FESTO HEE-D-MINI-24 Shut Off Valve
Manufacturer: FESTO
Type: Shut Off Valve
Model: HEE-D-MINI-24
Part No.: 172956
- Size: MINI
- Structural Design: Piston Gate Valve
- Valve Function: 3/2, Closed, Monostable
- Operating Pressure: 2.5 / 16 bar
- Flow Direction: Non-Reversible
- Connection: G1/4
- Medium Temperature: -10 / 60 °C
