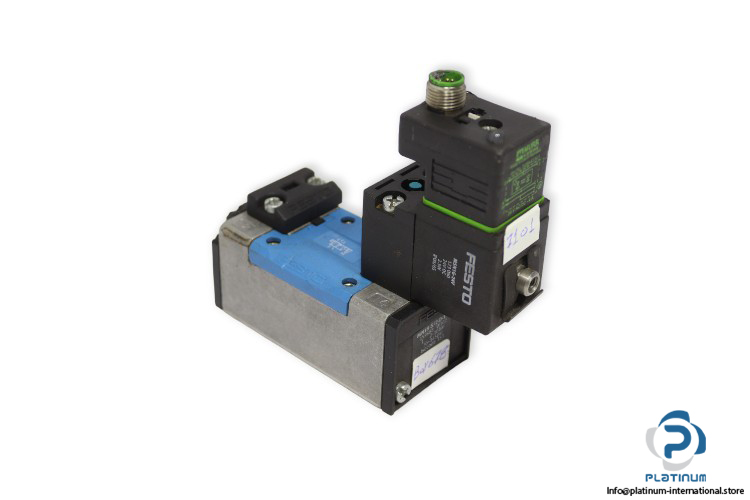

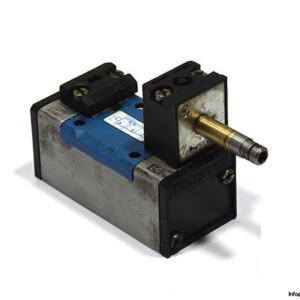

Festo 159688 Single Solenoid Valve

FESTO MN1H-5/2-D-1-C SINGLE SOLENOID VALVE WITH MURR 7000-41301 CONNECTOR

The FESTO MN1H-5/2-D-1-C is a high-performance single solenoid valve engineered for precision pneumatic control. Designed with a 5/2-way, monostable function and a piston gate valve design, it offers robust performance in a wide range of automation systems. The valve comes with a MURR 7000-41301 connector for reliable electrical connectivity.

Manufacturer: FESTO
Type: Single Solenoid Valve

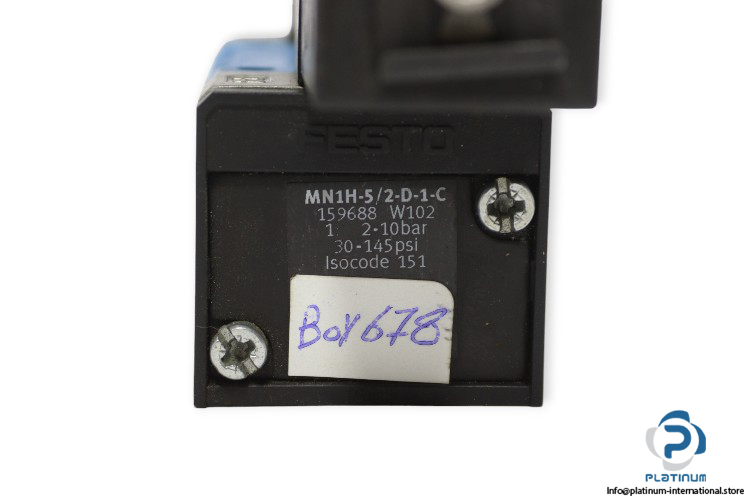

Model: MN1H-5/2-D-1-C
Part No.: 159688

Valve Technical Information

• Fluid: Air
• Design: Piston Gate Valve
• Function: 5/2-way, Monostable
• Type of Actuation: Electrically
• Operating Pressure: 2 / 10 bar
• Flow Rate: 1200 l/min
• Plug Diameter: 9 mm
• Pneumatic Connection: Sub-Based
• Material: Aluminum
• Protection Class: IP65
• Ambient Temperature: -5 / 50 °C

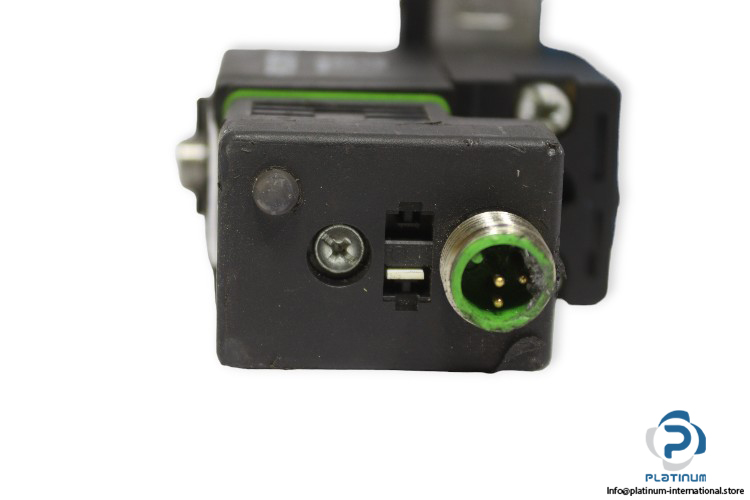

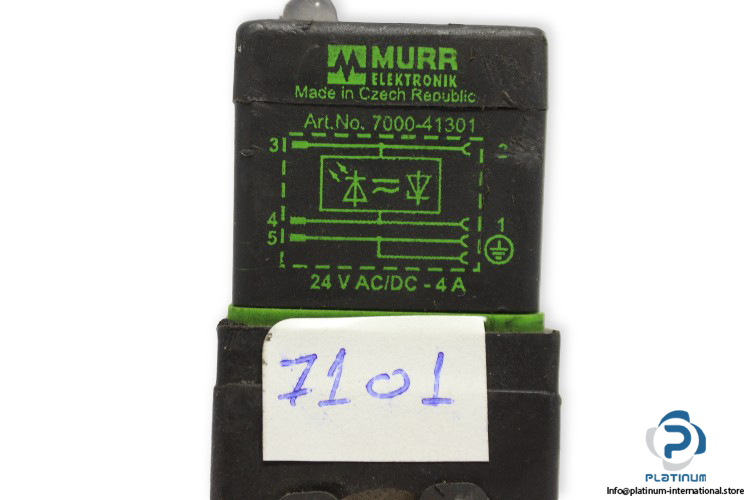

Connector Attachment: MURR 7000-41301

Manufacturer: MURR
Type: Connector
Part No.: 7000-41301

Connector Technical Information

• Connector Type: Valve Connector
• Rated Voltage: 24 V AC/DC
• Current Max.: 4 A
• Connector: Adapter, Female Plug
• Number of Pins: 3
• Electrical Mounting: Male M12 Connector 5-pin
• Locking System: Screws
