Festo 159699 Single Solenoid Valve
Used
In stock1 unitReady to ship
99,99$
SINGLE SOLENOID VALVE
FESTO MN1H-5/2-D-2-FR-C single solenoid valve with 24V DC coil, designed for 5/2-way air control with high flow and robust performance.24v5/2AirBasecoildcFestoGateMN1H-5/2-D-2-FR-CMonostableMSN1G-24VPistonPneumaticSinglesolenoidsubValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

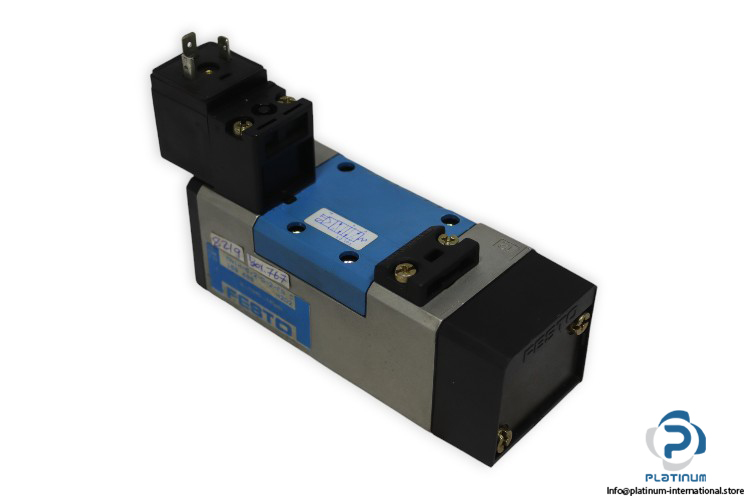

FESTO MN1H-5/2-D-2-FR-C SINGLE SOLENOID VALVE WITH MSN1G-24V COIL
The FESTO MN1H-5/2-D-2-FR-C is a high-performance single solenoid valve designed for reliable operation in industrial pneumatic systems. This 5/2-way, monostable valve features a robust piston gate design and is constructed from durable aluminum die-cast. It offers excellent flow performance and operates at a pressure range of 3 to 10 bar.
Manufacturer: FESTO
Type: Single Solenoid Valve

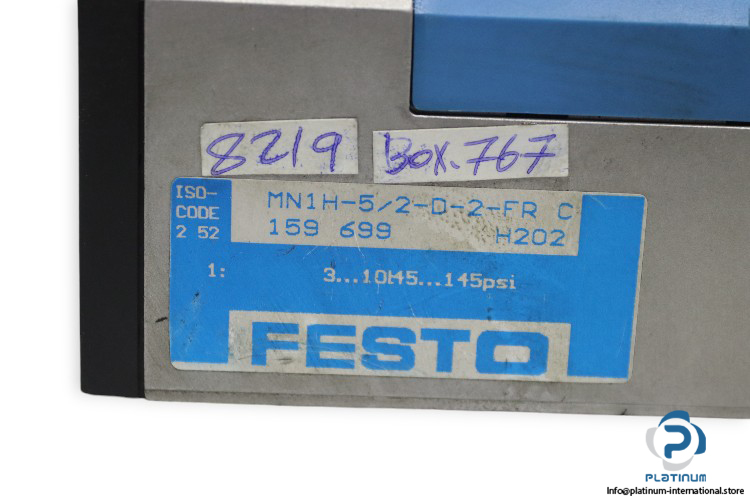

Model: MN1H-5/2-D-2-FR-C
Part No.: 159699
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 to 10 bar |
| Nominal Flow Rate | 2300 l/min |
| Pneumatic Connection | Sub-base size 2 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 to 40 °C |

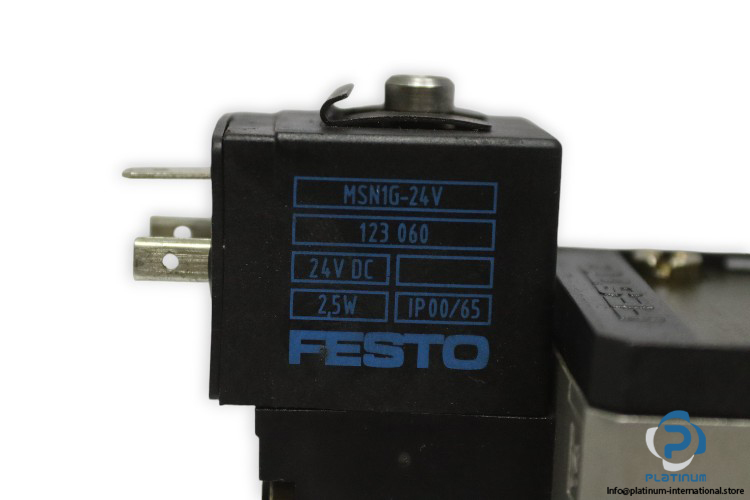

| Solenoid Coil Attachment | FESTO MSN1G-24V |
| Part No. | 123060 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP65 |
