DOUBLE SOLENOID VALVE
FESTO JMN1H-5/2-D-3-C 5/2 bistable solenoid valve with piston gate design and 24V DC coil, ideal for high-flow pneumatic control systems.24v5/2AirBaseBistablecoilControlDoubleFestoGateIndustrialJMN1H-5/2-D-3-CMSN1G-24VPistonPneumaticsolenoidsubValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

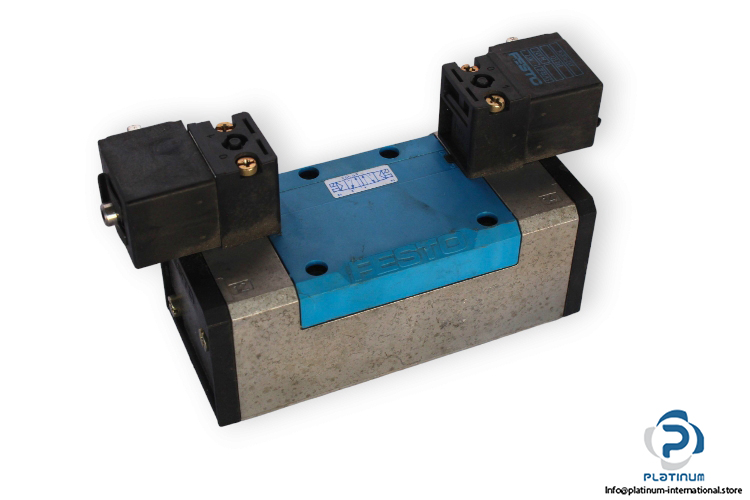

FESTO JMN1H-5/2-D-3-C DOUBLE SOLENOID VALVE WITH MSN1G-24V COIL
The FESTO JMN1H-5/2-D-3-C is a high-performance double solenoid valve engineered for demanding pneumatic applications. It features a 5/2 bistable function with a piston gate valve design, delivering reliable control of air flow. The valve is paired with the FESTO MSN1G-24V solenoid coil, ensuring efficient electrical actuation and compact integration.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: JMN1H-5/2-D-3-C
Part No.: 159714
Solenoid Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Valve Function | 5/2 bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 4500 l/min |
| Pneumatic Connection | Sub-base size 3 |
| Material | Aluminum die cast |
| Ambient Temperature | -5 / 50 °C |

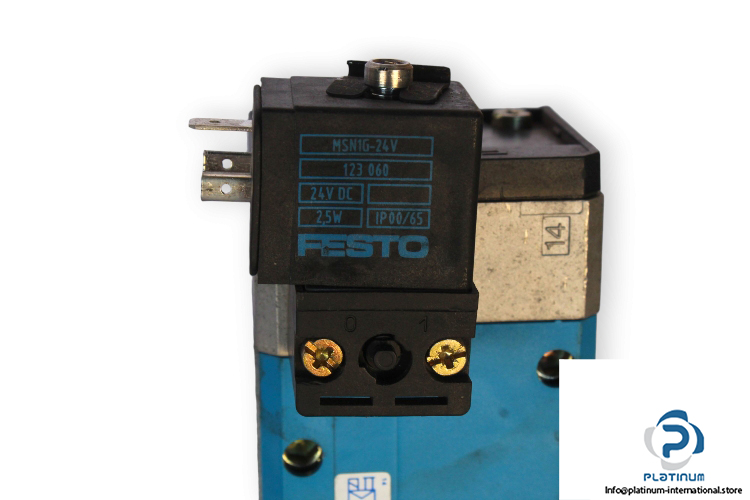

| Solenoid Coil Attachment | FESTO MSN1G-24V |
| Part No. | 123060 |
| Supply Voltage | 24 V DC |
| Power Consumption | 2.5 W |
| Protection Class | IP00 / IP65 |
