Festo 161071 Double Solenoid Valve
Used
In stock10 unitsReady to ship
DOUBLE SOLENOID VALVE WITH COIL
FESTO JMN2H-5/2-D-01 valve with MSEB-3-24V DC coil provides high flow capacity and bistable switching for efficient pneumatic control systems.100024v5/2BistablecoilControldcDoubleFestoIndustrialJMN2H-5/2-D-01l/minMSEB-3-24VPneumaticsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

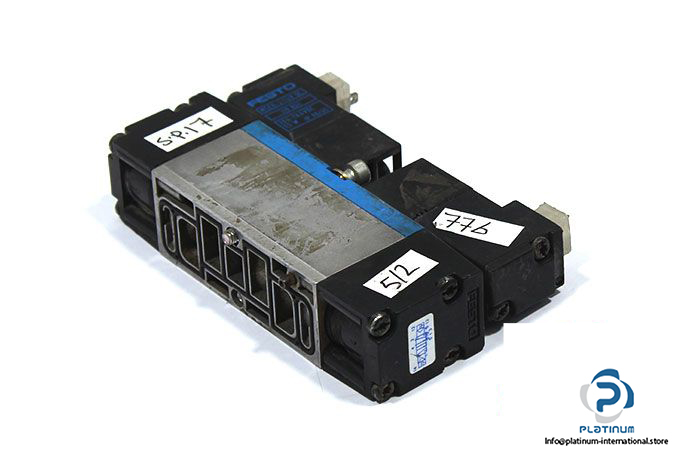

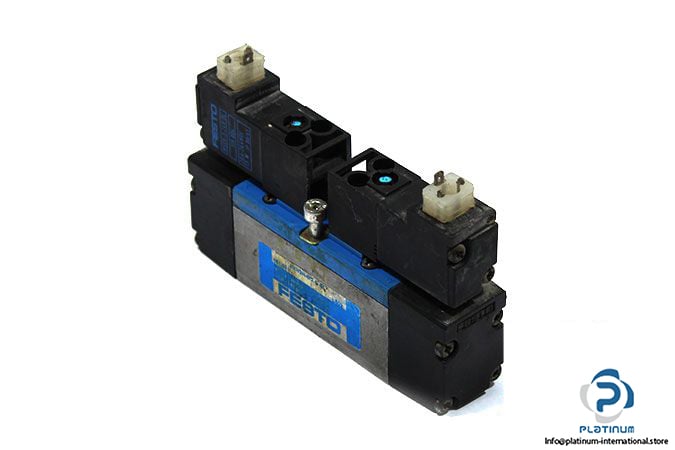

FESTO JMN2H-5/2-D-01 DOUBLE SOLENOID VALVE WITH COIL
The FESTO JMN2H-5/2-D-01 is a robust double solenoid valve built with a piston slide design for reliable pneumatic control. Featuring a 5/2 bistable function and high nominal flow rate, this unit is ideal for demanding automation tasks. It includes the FESTO MSEB-3-24V DC solenoid coil, ensuring efficient and responsive actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve

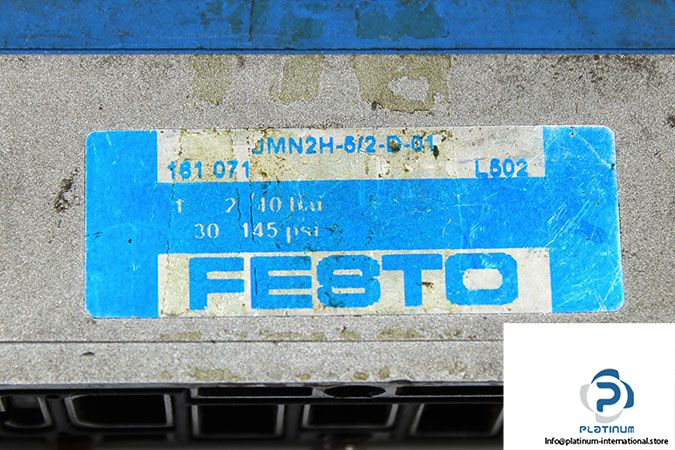

Model: JMN2H-5/2-D-01
Part No.: 161071
Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/2 bistable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 ... 10 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | Connection plate size 26 mm |
| Material | Die-cast aluminum |
| Ambient Temperature | -10 / 50 °C |

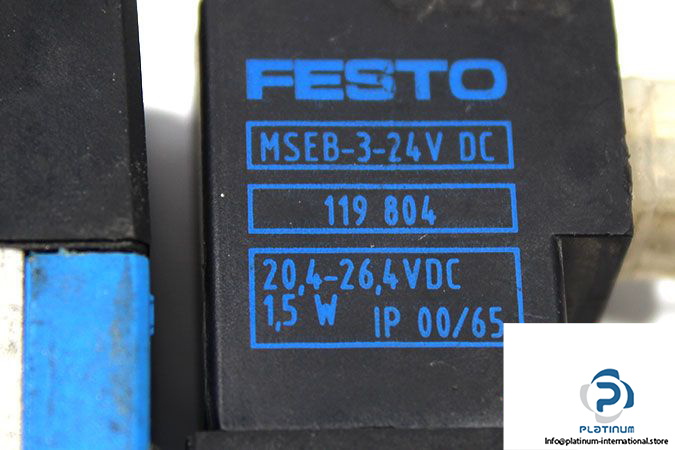

| Attachment | FESTO MSEB-3-24V DC SOLENOID COIL |
| Part No. | 119804 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
