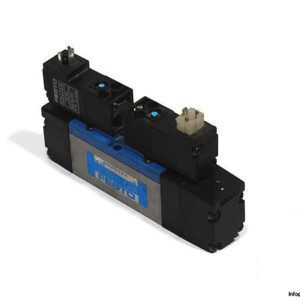

Festo 161076 Double Solenoid Valve With Connection Plate
New
In stock1 unitReady to ship
75,00$
DOUBLE SOLENOID VALVE
FESTO MN2H-5/3G-D-01-S double solenoid valve with MSEB-3-24V DC coil offers 5/3 closed control, 1000 l/min flow, and high reliability for pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

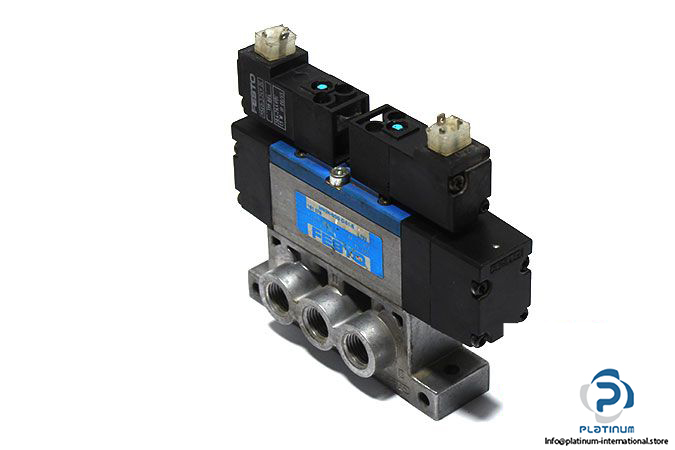

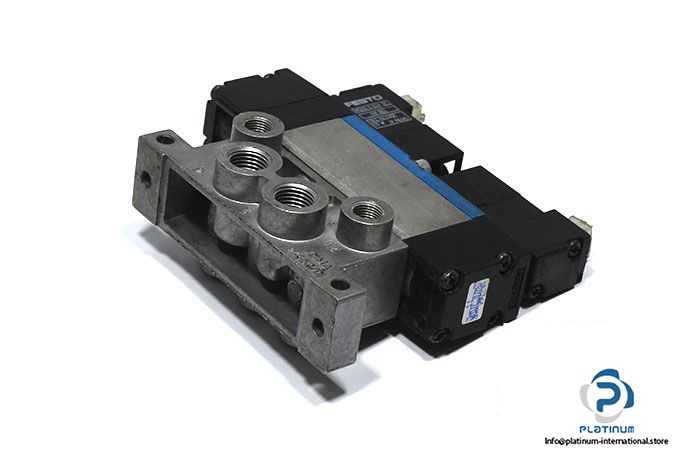

FESTO MN2H-5/3G-D-01-S DOUBLE SOLENOID VALVE WITH COIL
The FESTO MN2H-5/3G-D-01-S is a high-performance double solenoid valve designed for precise control in pneumatic systems. With a 5/3 closed function and robust aluminium die-cast housing, this valve delivers reliability in demanding industrial applications. It comes equipped with the FESTO MSEB-3-24V DC solenoid coil for optimal electrical operation.
Manufacturer: FESTO
Type: Double Solenoid Valve

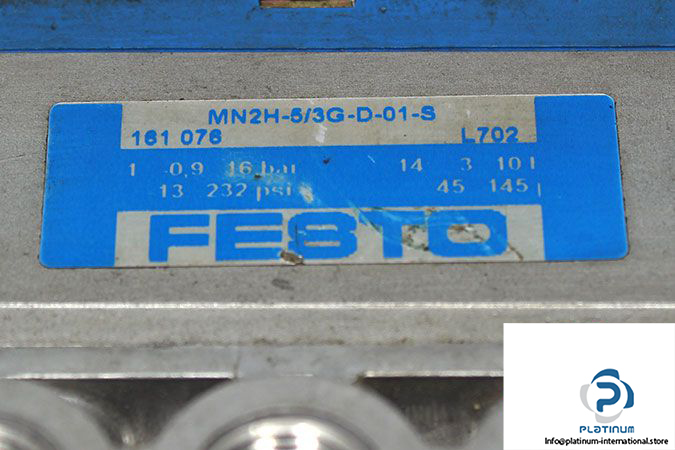

Model: MN2H-5/3G-D-01-S
Part No.: 161076
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston slide |
| Valve Function | 5/3 closed |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 to 16 bar |
| Nominal Flow Rate | 1000 l/min |
| Pneumatic Connection | Connection plate size 26 mm |
| Material | Aluminium die cast |
| Ambient Temperature | -10 to 50 °C |

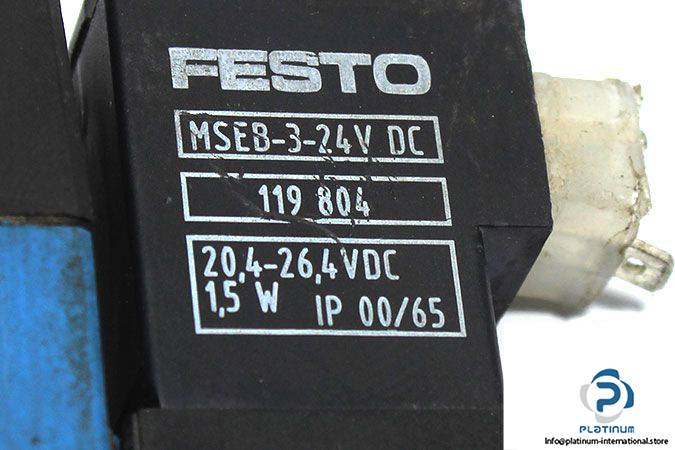

| Attachment | FESTO 119804 SOLENOID COIL |
| Part No. | 119804 |
| Supply Voltage | 20.4 “ 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
