Festo 161088 Single Solenoid Valve
SINGLE SOLENOID VALVE

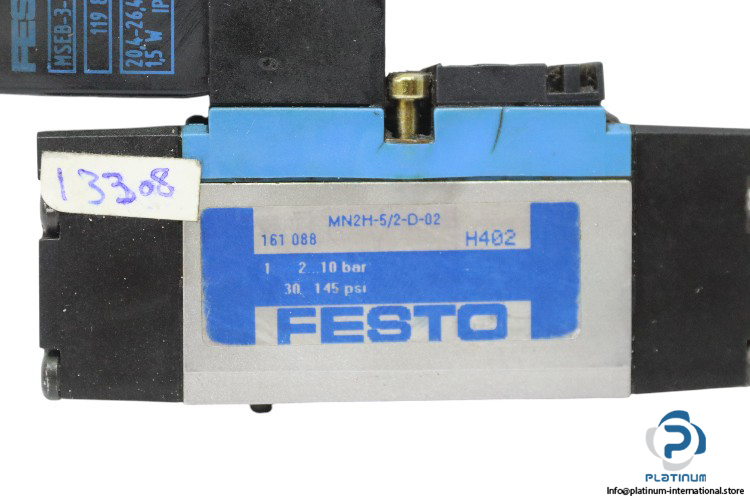

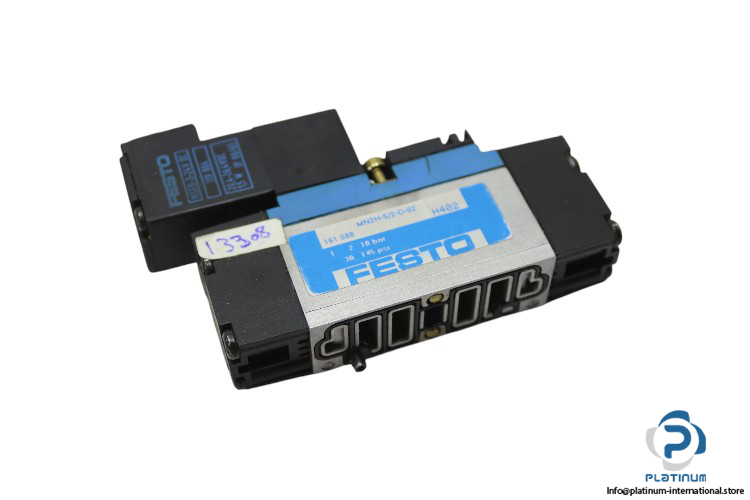

FESTO MN2H-5/2-D-02 Single Solenoid Valve with MSEB-3-24V DC Coil provides efficient electrical actuation of compressed air systems with sub-base connection and up to 10 bar pressure.FESTO MN2H-5/2-D-02 SINGLE SOLENOID VALVE WITH MSEB-3-24V DC COIL
The FESTO MN2H52D02 Single Solenoid Valve is designed for reliable and efficient control of compressed air systems. Electrically actuated and sub-based, it supports operating pressures up to 10 bar and is ideal for use in industrial pneumatic applications. This unit includes the FESTO MSEB-3-24V DC solenoid coil for precise performance and reliable actuation.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MN2H-5/2-D-02
Part No.: 161088
Valve Technical Information
Fluid: Compressed Air
Type of Actuation: Electrically
Operating Pressure: 2 / 10 bar / 30 … 145 PSI
Pneumatic Connection: Sub-Based

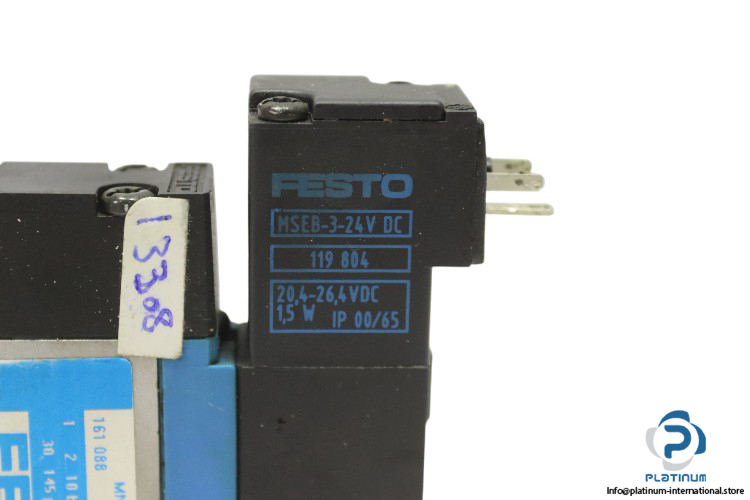

Attached Solenoid Coil
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSEB-3-24V DC
Part No.: 119804
Supply Voltage: 20.4 / 26.4 V DC
Power Consumption: 1.5 W
Protection Class: IP00/65
