Festo 161127 Precision Pressure Gauge
New
In stock1 unitReady to ship
Precision Pressure Gauge
The Festo MAP-40-6-1/8-EN is a high-accuracy pressure gauge with a 0-6 bar display range, R1/8 pneumatic connection, and IP43 protection, ideal for precise pressure measurement in pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

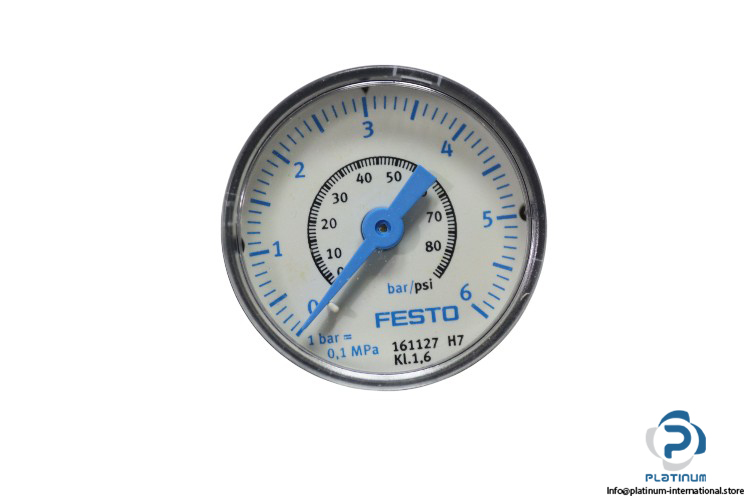

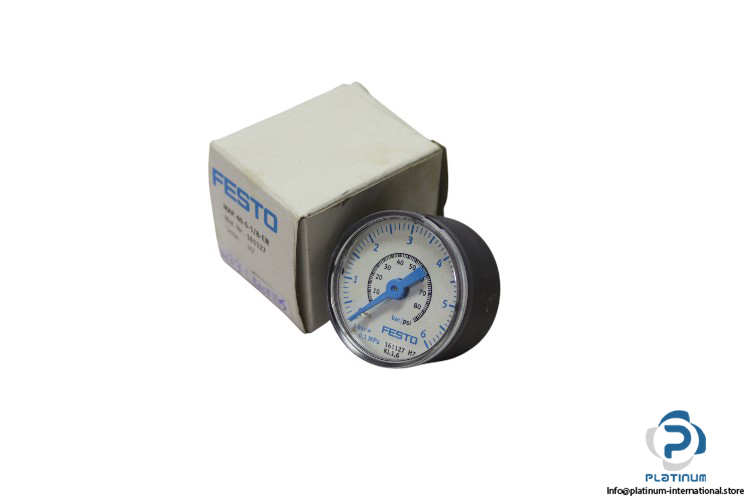

Festo MAP-40-6-1/8-EN Precision Pressure Gauge
The Festo MAP-40-6-1/8-EN precision pressure gauge is designed for accurate measurement and reliable pressure monitoring in pneumatic systems. With a nominal size of 40, this gauge offers precise readings from 0 bar to 6 bar, making it ideal for industrial and automation applications.
Manufacturer: FESTO
Type: Precision Pressure Gauge

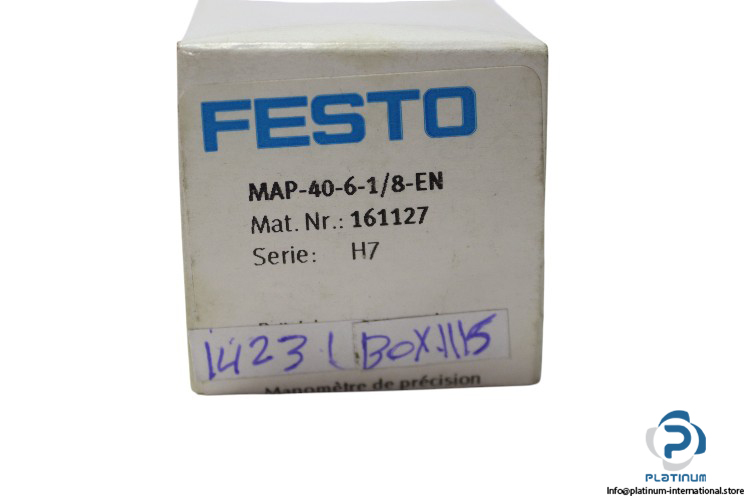

Model: MAP-40-6-1/8-EN
MRN: 161127
Ref No: H7
Technical Data:
- Pressure Gauge Nominal Size: 40
- Type of Mounting: Line installation
- Display Range: 0 bar – 6 bar
- Pneumatic Connection: R1/8
- Measurement Accuracy Class: 1.6
- Intermittent Load Factor: 0.66
- Degree of Protection: IP43
- Temperature of Medium: -20 °C to 60 °C
- Material of Screwed Plug: Brass
- Housing Material: PBT
