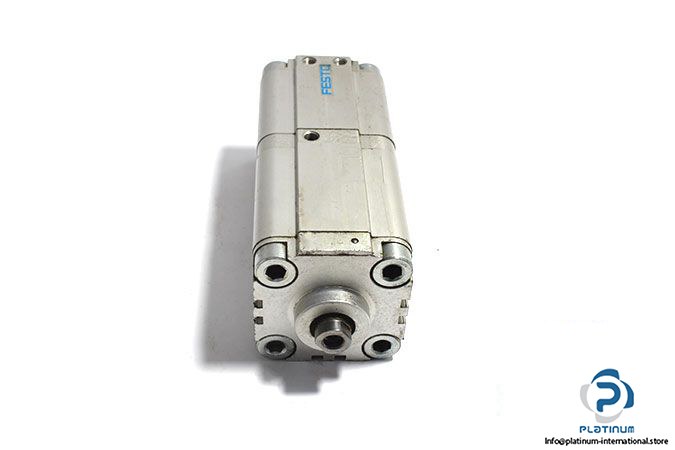

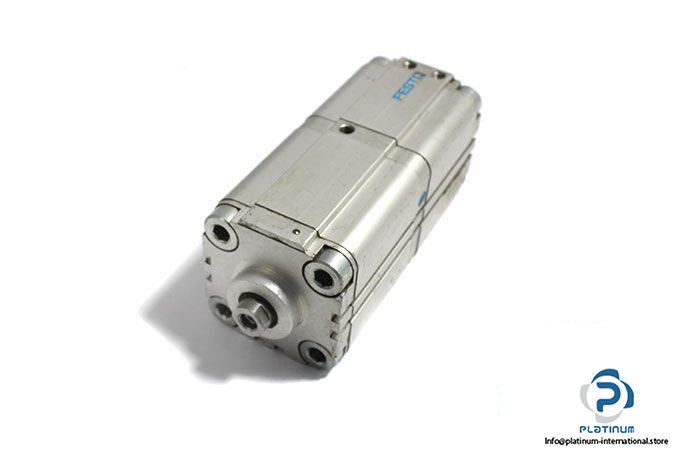

Festo 161149 Multi-Position Cylinder

Manufacturer: FESTO

Type: Multi-Position Cylinder

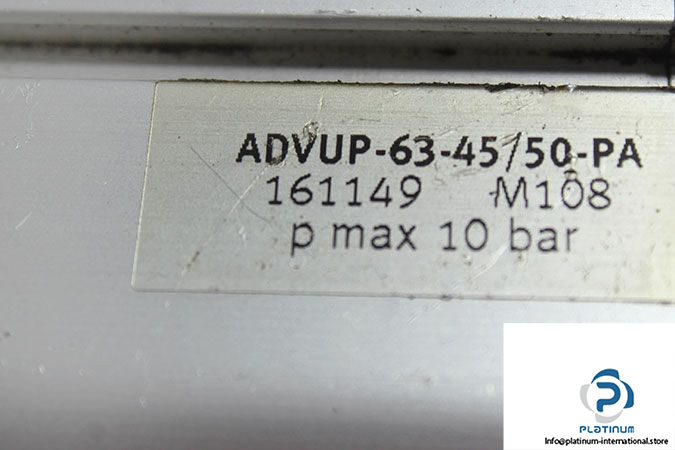

Model: ADVUP-63-45/50-PA

Part No.: 161149

Materials

,,Cylinder Tube: Aluminium wrought alloy Smooth anodised

,,Piston rod: High-alloy steel

Stroke Length ( 1 ): 45 mm

Stroke Length ( 2 ): 50 mm

Piston Diameter: 63 mm

Piston rod thread: Female thread

Operating Pressure: 0.6 … 10 bar

Cushioning: Flexible cushioning rings/pads at both ends

Position Sensing: Via proximity sensor

Pneumatic Connection: G1/8

Mode of operation: Double-Acting

Temperature: -20 … 80 °C

Weight: 4.00 kg
