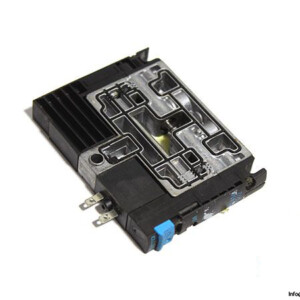

Festo 161414 AIR Solenoid Valve
New
In stock12 unitsReady to ship
39,99$
Air Solenoid Valve
The Festo CPV10-M1H-5LS-M7 air solenoid valve features a 5/2 valve function, 400 l/min flow rate, and electrically actuated operation. It is designed for use with compressed air systems operating at 3 to 8 bar.Solenoid Coil
The FESTO 384163 solenoid coil is compatible with the CPV10-M1H-5LS-M7 valve. Powered by 21 V DC, it consumes 0.46 W and provides IP00/65 protection.
Used
In stock 29,99$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

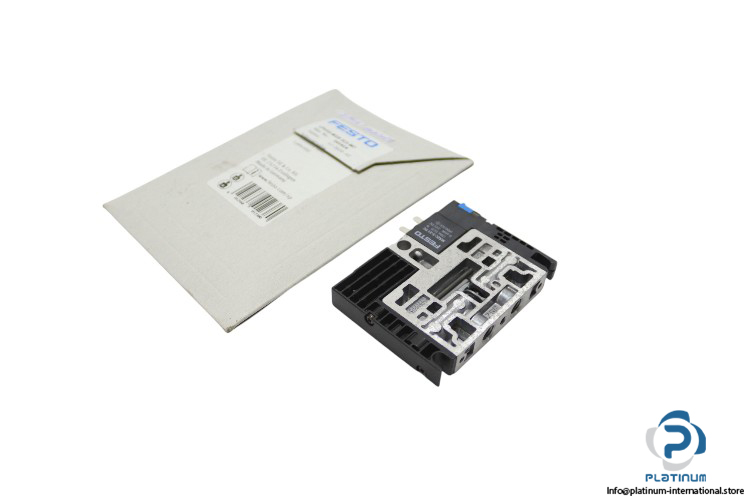

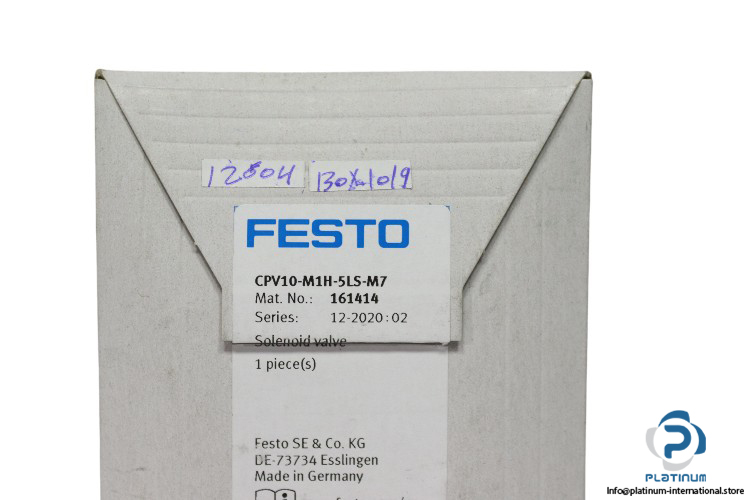

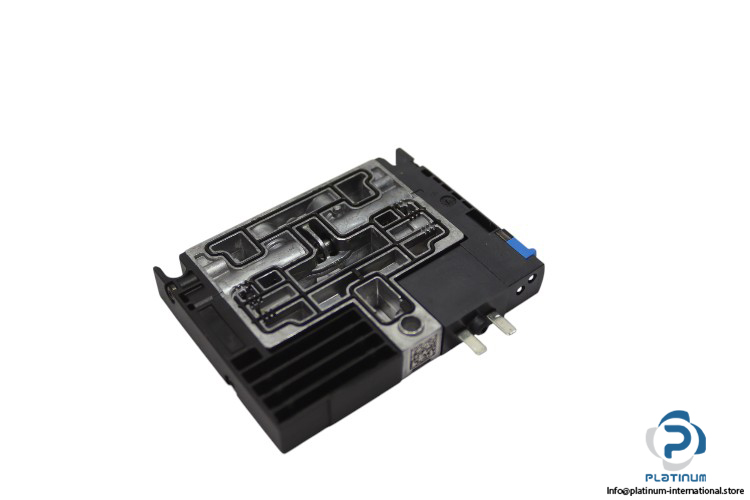

Festo CPV10-M1H-5LS-M7 “ Air Solenoid Valve
The Festo CPV10-M1H-5LS-M7 air solenoid valve is engineered for efficient control of compressed air systems. With a 5/2 valve function, this electrically actuated valve ensures reliable operation within the operating pressure range of 3 to 8 bar.
Manufacturer: Festo
Type: Air Solenoid Valve
Model: CPV10-M1H-5LS-M7
Part No: 161414

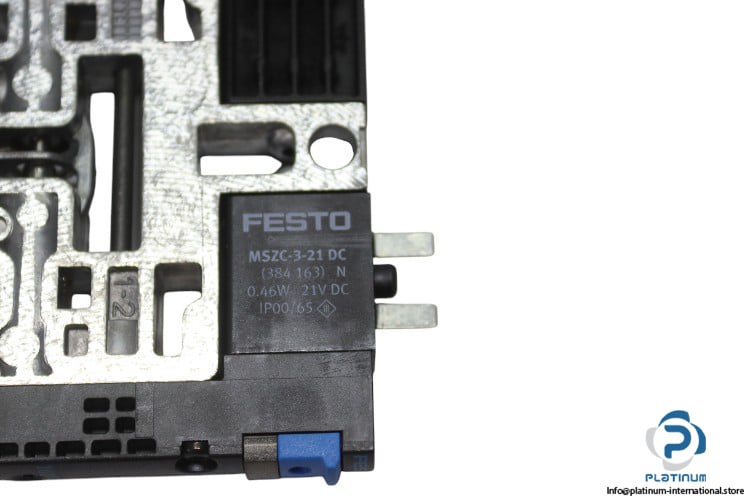

FESTO 384163 “ Solenoid Coil
| Type of Actuation | Electrically |
| Valve Function | 5/2 |
| Operating Pressure | 3 to 8 bar |
| Operating Medium | Compressed Air |
| Flow Rate | 400 l/min |
| Design | Piston Gate Valve |
| Ambient Temperature | -5 to 50 °C |
| Pneumatic Connection | Common port |
| Material Seals | NBR, HNBR |
| Material Housing | Die-cast aluminum, Brass, POM, PPS, Steel |
| Attachment | FESTO 384163 Solenoid Coil |
| Part No. | 384 163 |
| Power Supply | 21 V DC |
| Power Consumption | 0.46 W |
| Protection Class | IP00/65 |
