Festo 161445 32X100 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
The Festo DSW-32-100-PPV-B is a double-acting round cylinder with 100 mm stroke and 32 mm piston diameter. Built with aluminum alloy housing, high-alloy steel piston rod, and adjustable pneumatic cushioning for reliable automation performance.100mm32mmActingActuatorAdjustableAutomationCushioningCylinderDoubleDSW-32-100-PPV-BFestoHighIndustrialPistonPneumaticPressureRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

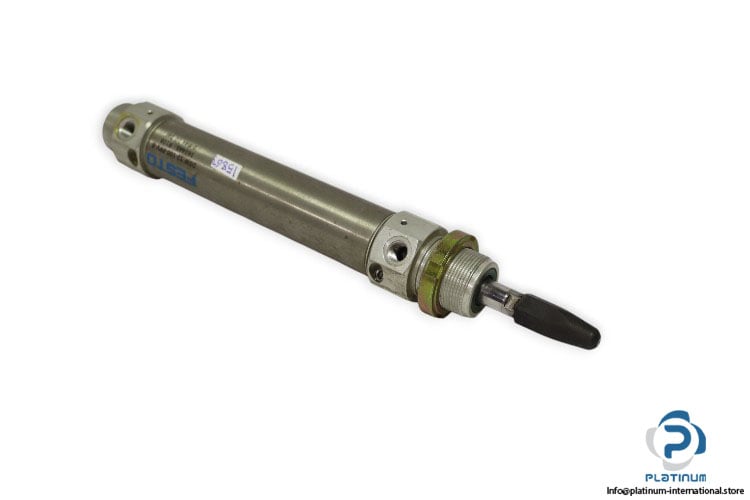

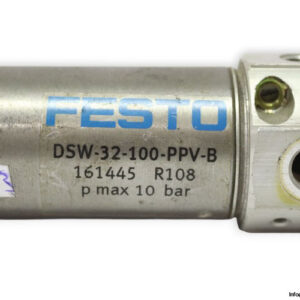

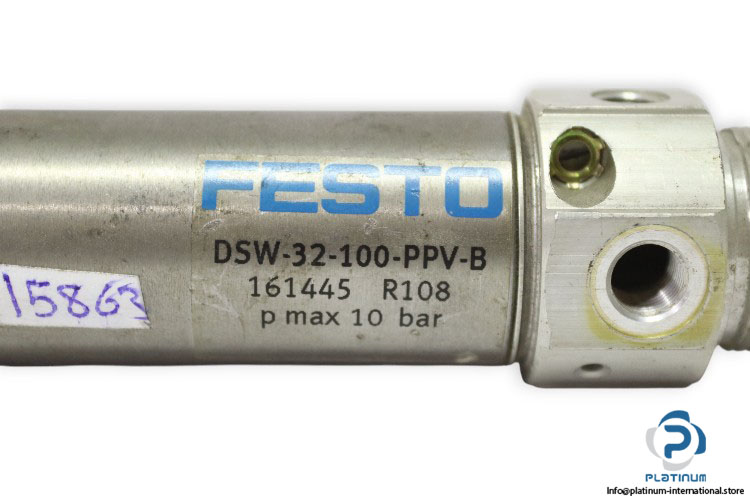

Festo DSW-32-100-PPV-B Round Cylinder
The Festo DSW-32-100-PPV-B is a robust pneumatic round cylinder designed for precision and reliability in automation systems. With a 100 mm stroke and 32 mm piston diameter, it delivers efficient double-acting performance with adjustable pneumatic cushioning at both ends.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-32-100-PPV-B
Part No.: 161445
Ref. Code: R108
Series: DSW
| Stroke Length | 100 mm |
| Piston Diameter | 32 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/8 |
| Operating Medium | Dried compressed air |
| Cushioning | Pneumatic cushioning, adjustable at both ends (PPV) |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U (PU) |
| Material Piston Rod | High-alloy steel |
| Ambient Temperature | -20 to 80 °C |
