Festo 161483 40X100 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DSW-40-100P-AB pneumatic round cylinder with 100 mm stroke, 40 mm piston diameter, and G1/4 connection. Double-acting design with flexible cushioning and durable high-alloy construction.100mmActingActuatorAlloyconnectionCylinderDoubleDSW-40-100P-ABFestoG1/4HighIndustrialPneumaticRoundSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

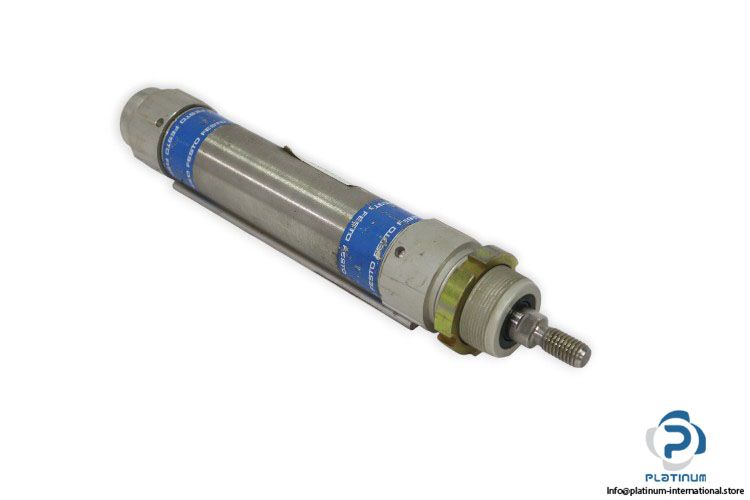

Festo DSW-40-100P-AB Round Cylinder
The Festo DSW-40-100P-AB is a robust and precise round cylinder designed for reliable pneumatic actuation in industrial environments. Featuring a double-acting piston with flexible cushioning, it provides smooth operation and high durability under demanding conditions.
Manufacturer: Festo
Type: Round Cylinder

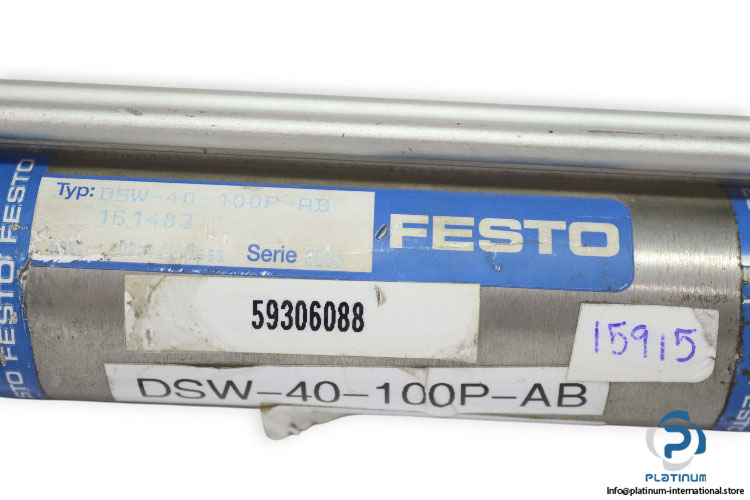

Model: DSW-40-100P-AB / DSW-40-100-P-A-B
Part No.: 161483
Series: DSW
Ref. No.: 59306088
| Stroke Length | 100 mm |
| Piston Diameter | 40 mm |
| Piston Rod Thread | 12 mm |
| Pneumatic Connection | G1/4 |
| Cushioning | Flexible cushioning rings or plates at both ends (P) |
| Operating Medium | Dried compressed air |
| Variants | Single-ended piston rod |
| Max. Operating Pressure | 10 bar |
| Shape | Circular |
| Piston Action | Double-acting |
| Ambient Temperature | -20 to 80 °C |
| Materials (Cover) | Wrought Aluminum Alloy |
| Materials (Seals) | TPE-U(PU), NBR |
| Materials (Housing) | High alloy steel, non-corrosive |
| Materials (Piston Rod) | High alloy steel |
