Festo 161505 40X200 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
Festo DSW-40-200PPVA B double-acting round cylinder with 200 mm stroke and 40 mm piston diameter. Built with high alloy steel and aluminum for strength and equipped with adjustable pneumatic cushioning.161505200mmActingAirAlloyAutomationBCylinderDoubleDSWDSW-40-200PPVAFestoHighIndustrialPneumaticRoundSeriesSteelStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

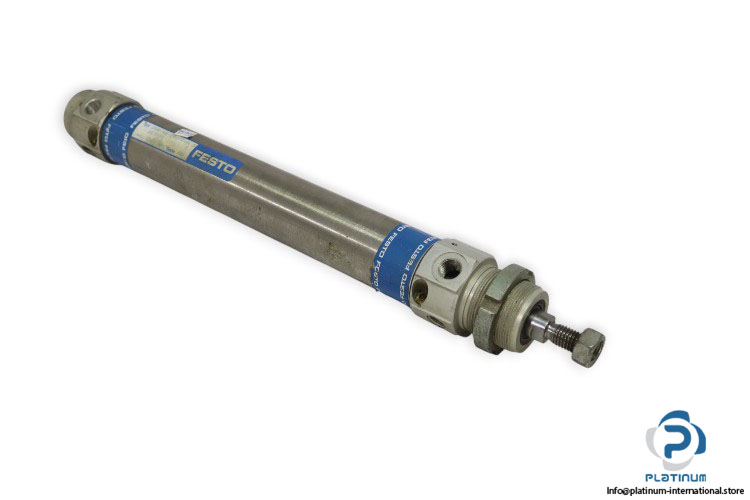

Festo DSW-40-200PPVA B Round Cylinder
The Festo DSW-40-200PPVA B is a high-performance double-acting round cylinder designed for demanding pneumatic applications. With a 200 mm stroke length, durable construction, and adjustable pneumatic cushioning at both ends, it ensures reliable and precise linear motion in industrial automation systems.
Manufacturer: Festo
Type: Round Cylinder

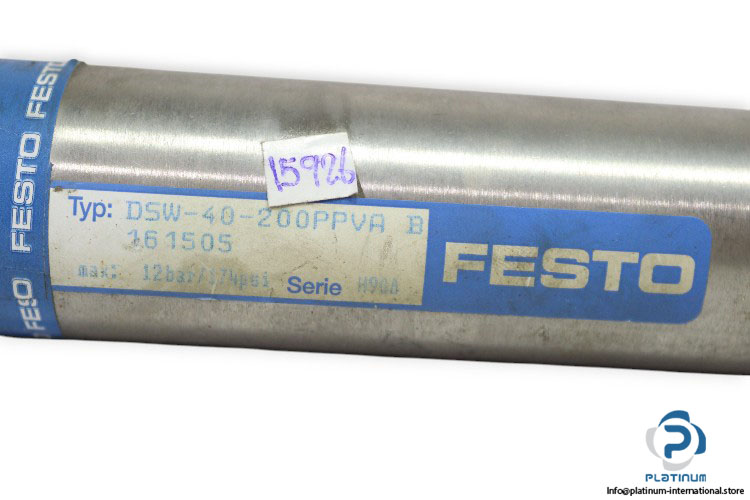

Model: DSW-40-200PPVA B
Part No.: 161505
Series: DSW
Ref. code: H908
| Stroke Length | 200 mm |
| Piston Diameter | 40 mm |
| Piston Rod Thread | 12 mm, Male |
| Pneumatic Connection | G1/4 |
| Operating Medium | Dried Compressed Air |
| Cushioning | Pneumatic cushioning, adjustable at both ends (PPV) |
| Variants | Single-ended piston rod |
| Mode of Operation | Double-acting |
| Max. Operating Pressure | 12 bar |
| Shape | Circular |
| Rod Direction | One Side |
| Ambient Temperature | -20 to 80 °C |
| Materials (Cover) | Wrought Aluminum Alloy |
| Materials (Seals) | TPE-U(PU), NBR |
| Materials (Housing) | High Alloy Steel, Non-corrosive |
| Materials (Piston Rod) | High Alloy Steel |
