Festo 161563 Round Cylinder
New
In stock1 unitReady to ship
77,77$
Round Cylinder
The Festo ESW-50-50PA B Round Cylinder offers 50 mm bore and 50 mm stroke with push-action operation, elastic cushioning, and durable stainless steel construction for industrial pneumatic applications.16156350x50ActionBCylinderESWESW-50-50PAFestoIndustrialK708mmPneumaticPneumaticsPushRoundSeriesstainlessSteel
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

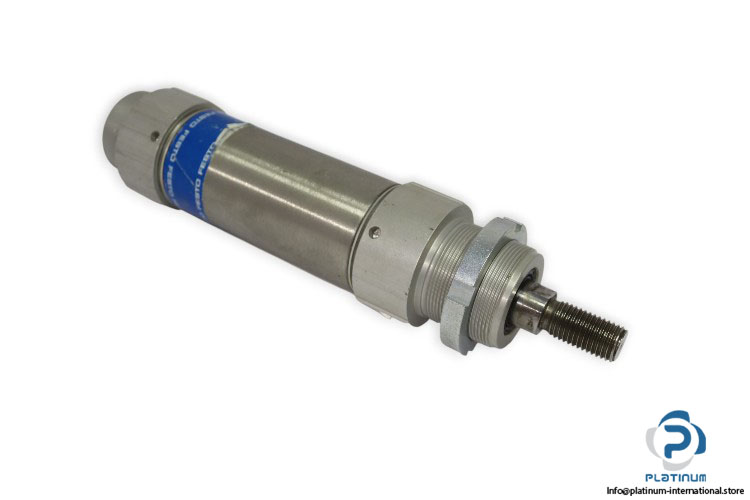

Festo Round Cylinder ESW-50-50PA B
The Festo ESW-50-50PA B is a high-quality round cylinder from the ESW series, designed for reliable performance in pneumatic applications. Built with robust materials, it delivers precision push-action operation with elastic cushioning for smooth motion control. Its compact circular shape and G1/4 connection make it suitable for a wide range of industrial automation systems.
Manufacturer: Festo
Type: Round Cylinder

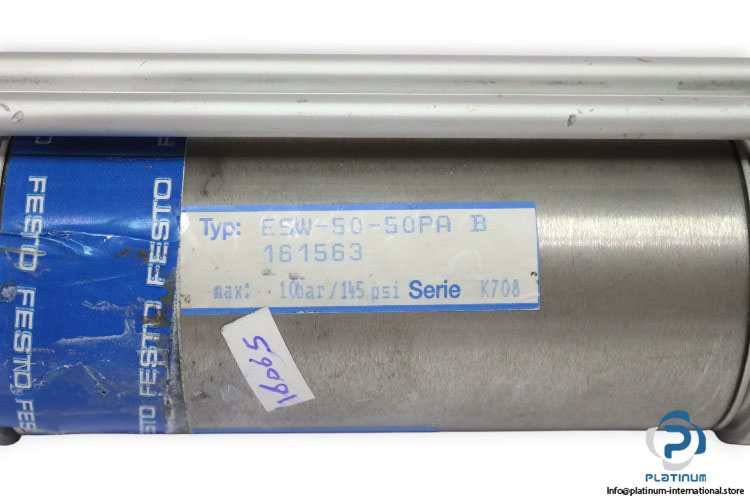

Model: ESW-50-50PA B
Part No.: 161563
Code: K708
Series: ESW
| Media | Compressed Air |
| Pressure Rating | Max. 10 bar / 145 psi |
| Bore Size | 50 mm |
| Stroke Length | 50 mm |
| Bore x Stroke | 50x50 mm |
| Cushioning | Elastic damping rings/plates on both sides (P) |
| Variants | Single-ended piston rod |
| Mode of Operation | Push-action |
| Shape | Circular |
| Ambient Temperature | -20 °C to 80 °C |
| Material Cover | Wrought aluminum alloy |
| Material Seals | NBR, TPE-U(PU) |
| Material Piston Rod | High-alloy stainless steel |
| Material Cylinder Barrel | High-alloy stainless steel |
| Connection | G1/4 |
