Festo 161589 Round Cylinder
Used
In stock5 unitsReady to ship
ROUND CYLINDER
Festo DSW-63-100PPV-B is a robust double-acting pneumatic cylinder with a 63 mm piston and 100 mm stroke, ideal for industrial motion control.1/4100mm63mmActingAluminumAutomationconnectionCylinderDoubleDSW-63-100PPV-BFestoGIndustrialPistonPneumaticRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

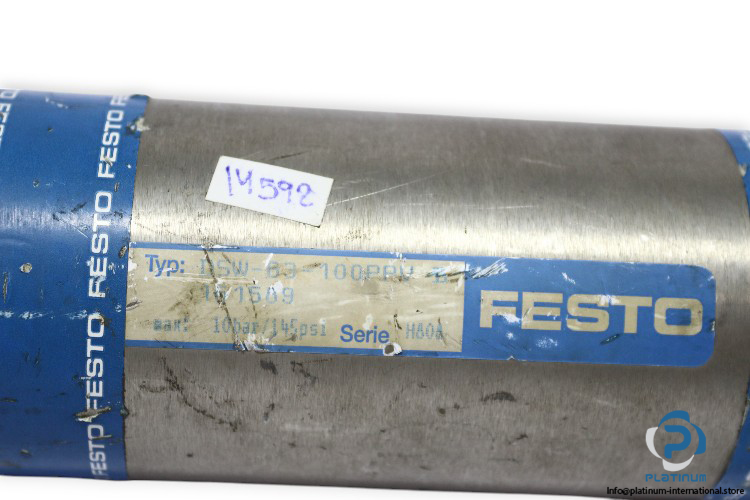

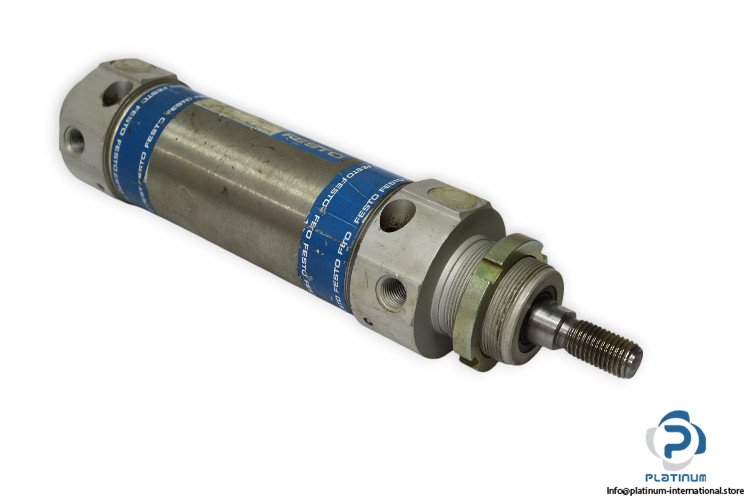

FESTO DSW-63-100PPV-B ROUND CYLINDER
The Festo DSW-63-100PPV-B is a high-performance double-acting round cylinder designed for precise pneumatic motion in industrial applications.
Manufacturer: Festo
Type: Round Cylinder
Model: DSW-63-100PPV-B
Part No.: 161589
| Piston Diameter | 63 mm |
| Stroke | 100 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 10 bar |
| Operating Medium | Compressed Air |
| Piston Rod End | Male |
| Variants | Single-Ended Piston Rod |
| Operation | Double Acting |
| Shape | Circular |
| Rod Direction | One Side |
| Ambient Temperature | -20 to 80 °C |
| Materials (Cover) | Wrought Aluminum Alloy |
| Materials (Seals) | TPE-U(P) |
