Festo 161601 Round Cylinder
Used
In stock1 unitReady to ship
Round Cylinder
The FESTO DSW-63-200-PPV-A-B Round Cylinder delivers precise motion control with a 63 mm bore, 200 mm stroke, and double-acting operation for reliable pneumatic performance.20063ActingAutomationboreCylinderDoubleDSW-63-200-PPV-A-BFestoG3/8IndustrialmmPneumaticPneumaticsPortRoundStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

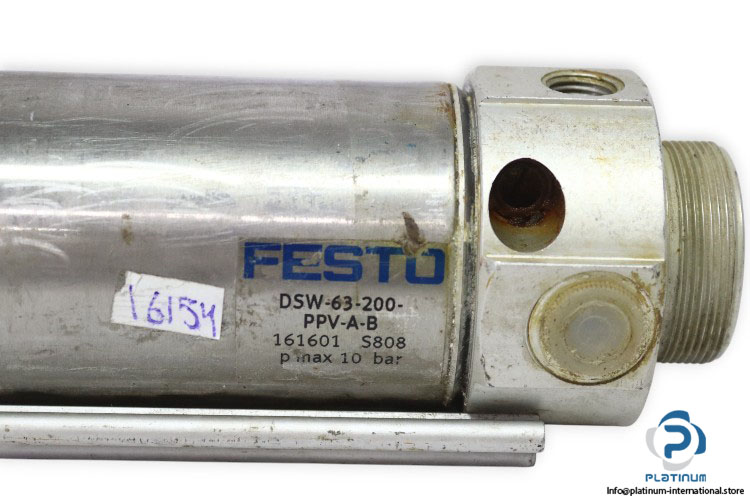

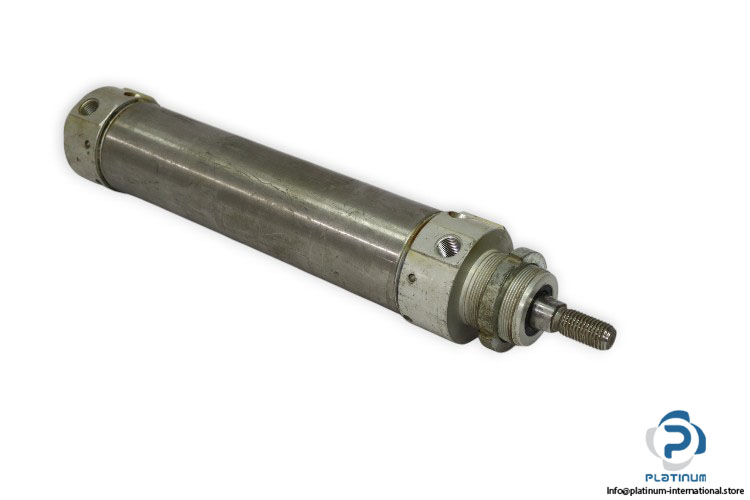

FESTO DSW-63-200-PPV-A-B Round Cylinder
The FESTO DSW-63-200-PPV-A-B Round Cylinder is designed for high-performance pneumatic applications, ensuring reliable linear motion and long operating life under demanding conditions.
Manufacturer: FESTO
Type: Round Cylinder
Model: DSW-63-200-PPV-A-B
Part No.: 161601
| Cylinder Diameter | 63 mm |
| Stroke | 200 mm |
| Pressure Max. | 10 bar |
| Operating Medium | Compressed Air |
| Piston Rod End | Male |
| Variants | Single-Ended Piston Rod |
| Shape | Circular |
| Rod Direction | One Side |
| Mode of Operation | Double Acting |
| Port Size | G3/8 |
