Festo 161830 Radial Gripper
Used
In stock1 unitReady to ship
Radial Gripper
Festo HGR-25-A radial gripper with 180° opening angle, double-acting operation, and 0.2 mm accuracy. Ideal for precise automated gripping applications.161830180ActingANDAutomationDegreeDoubleFestoGripperHGR-25-AIndustrialopeningPinionPneumaticPrecisionRackradialW9
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

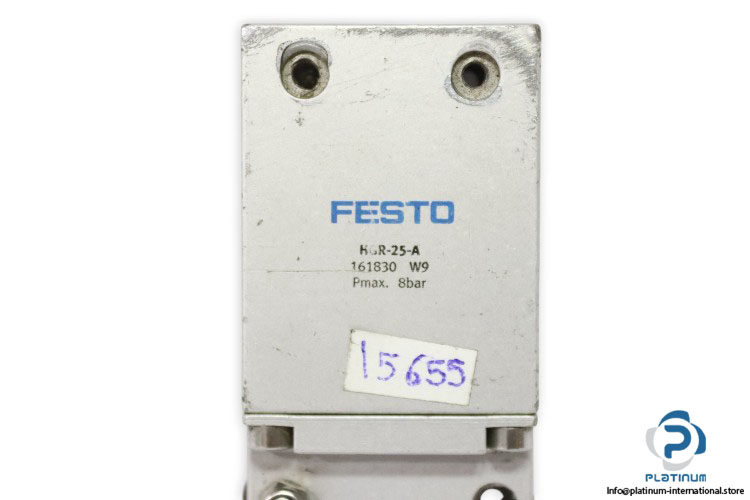

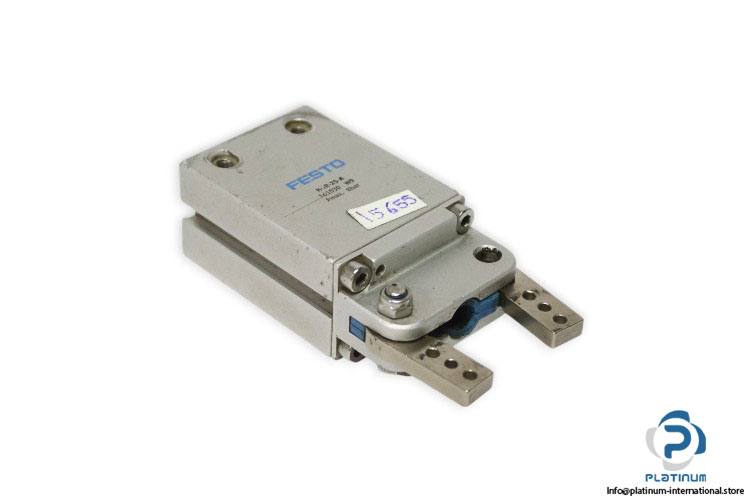

Festo HGR-25-A Radial Gripper
The Festo HGR-25-A radial gripper is a compact and precise gripping solution for automation systems, offering reliable performance with a wide opening angle and high positional accuracy. Designed for use with filtered compressed air, it features a robust rack-and-pinion mechanism for synchronized jaw movement.
Manufacturer: Festo
Type: Radial Gripper
Model: HGR-25-A
Part No.: 161830
Ref. code: W9
| Media | Filtered Compressed Air |
| Size | 25 |
| Max. Replacement Accuracy | 0.2 mm |
| Max. Opening Angle | 180° |
| Pneumatic Connection | M5 |
| Working Pressure | 2 / 8 bar |
| Mode of Operation | Double-Acting |
| Rack and Pinion | Rack and Pinion |
| Ambient Temperature | 5 to 60 °C |
