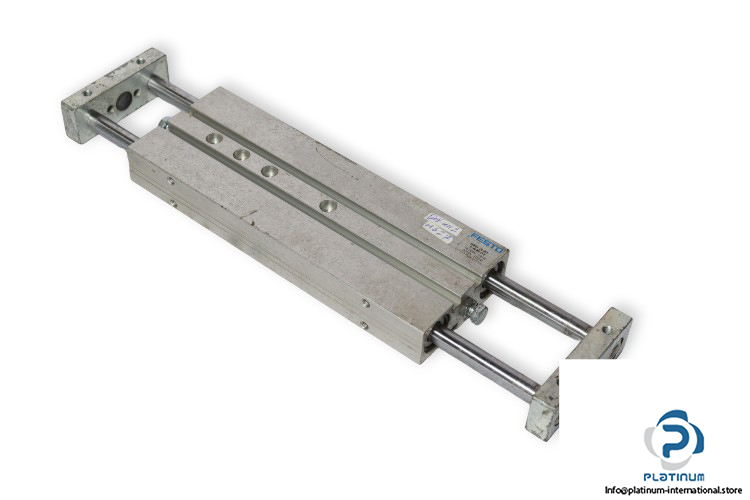

Festo 162086 Dual Piston ROD Cylinder

Manufacturer: FESTO
Type: Dual Piston Rod Cylinder

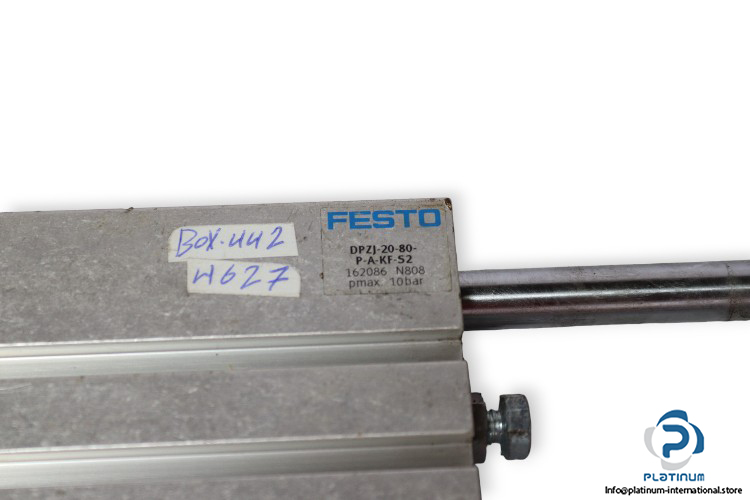

Model: DPZJ-20-80-P-A-KF-S2
Part No.: 162086

Media: Compressed Air
Piston Diameter: 20 mm
Stroke: 80 mm
Adjustable end position range/length: 10 mm
Drive unit operating mode: Yoke
Position sensing: For proximity sensor
Working Pressure: 1 … 10 bar
Max. Speed: 1 m/s
Mode of operation: Double Acting
Pneumatic connection: M5
Temperature Range: -20 … 80°C
Material: Wrought aluminum alloy
