Festo 162707 Filter Regulator
Used
In stock1 unitReady to ship
Filter Regulator
The Festo LFR-D-7-MIDI filter regulator efficiently controls and filters compressed air with a high flow rate of 4000 l/min, a 0.5 to 7 bar pressure range, and a 40 µm filtration grade.404000AirCompressedCondensatedrainFestofilterfiltrationIndustrialKnobl/minPneumaticPneumaticsregulatorRotaryµm
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

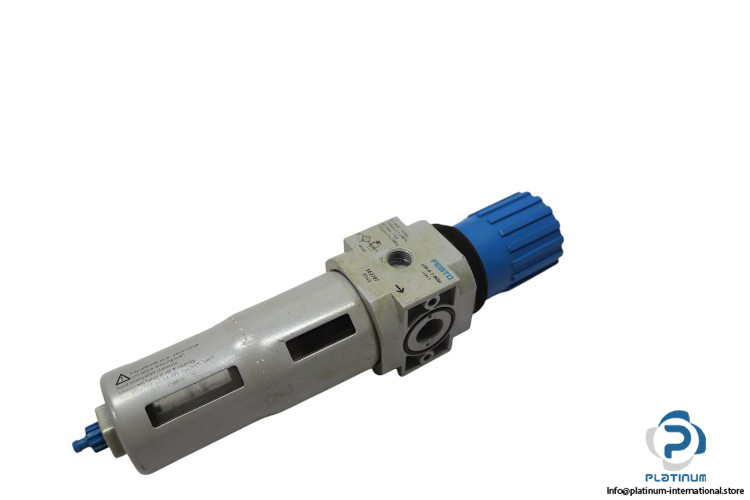

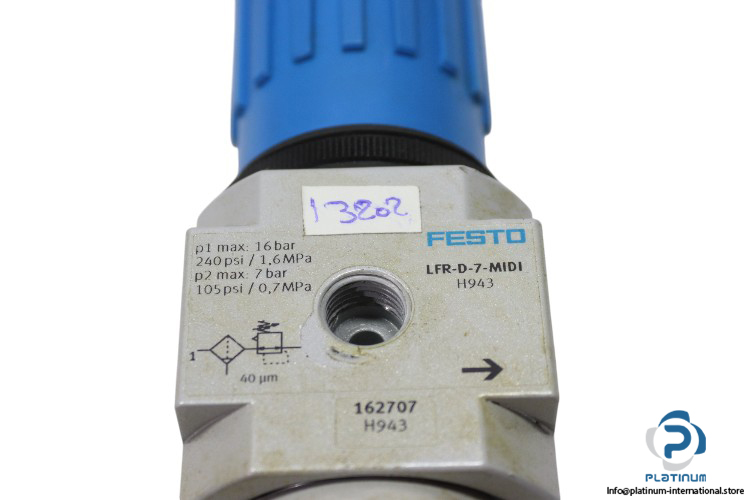

Festo LFR-D-7-MIDI Filter Regulator
The Festo LFR-D-7-MIDI filter regulator is designed for efficient filtration and pressure regulation in compressed air systems. With a high flow rate and adjustable pressure range, it offers optimal control and protection in industrial applications. This filter regulator is equipped with a rotary knob for actuator locking and a manually rotating condensate drain for easy maintenance.
Manufacturer: FESTO
Type: Filter Regulator
Model: LFR-D-7-MIDI
Part No.: 162707
Technical Data:
- Operating Medium: Compressed air
- Size: Midi
- Actuator Lock: Rotary knob with detent
- Condensate Drain: Manually rotating
- Structural Design: Filter regulator with pressure gauge
- Pneumatic Connection 1: G3/4
- Standard Nominal Flow Rate: 4000 l/min
- Pressure Regulation Range: 0.5 bar – 7 bar
- Grade of Filtration: 40 µm
- Max. Pressure Hysteresis: 0.2 bar
- Ambient Temperature: -10 °C … 60 °C
