Festo 163182 Single Solenoid Valve
New
Available on request
145,00$
SINGLE SOLENOID VALVE
FESTO CPE24-M1H-5L-QS-12 single solenoid valve with 24V DC coil, designed for 5/2-way monostable pneumatic control with high flow capacity.5/2ActuationAircoilControlCPE24-M1H-5L-QS-12dcFestoflowHighIndustrialMonostableMSEB-3-24VPneumaticQS-12solenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

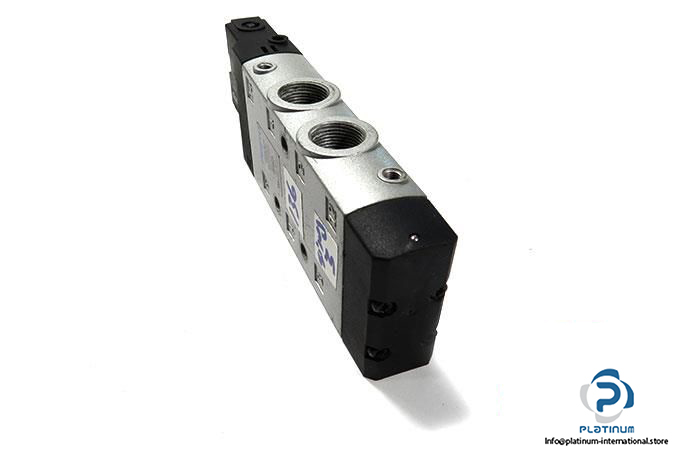

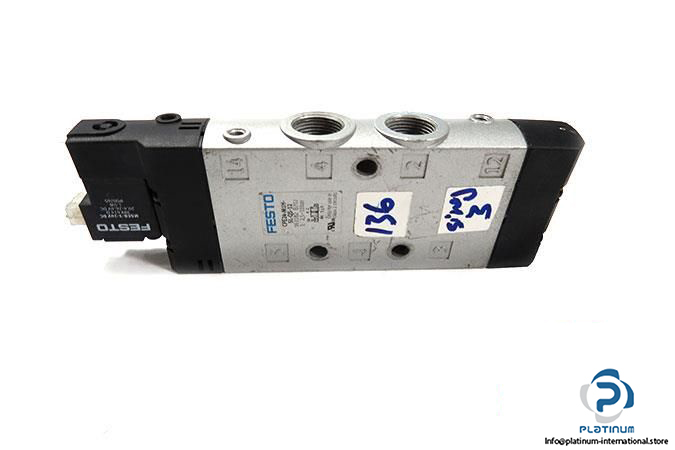

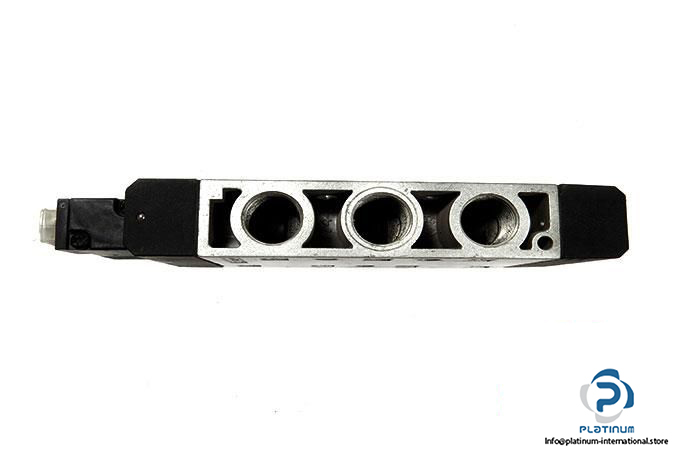

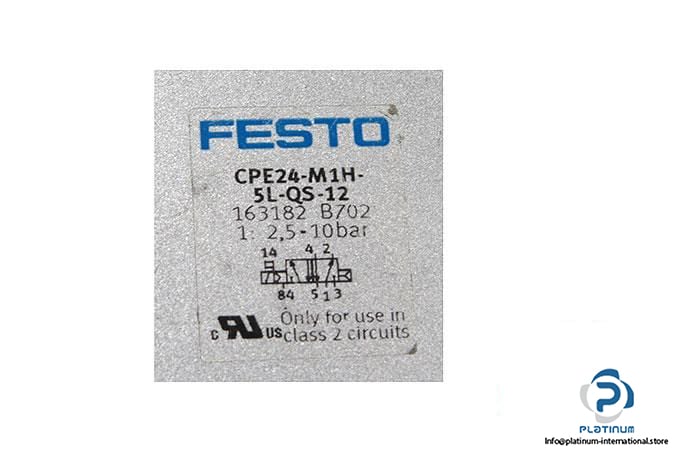

FESTO CPE24-M1H-5L-QS-12 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE24-M1H-5L-QS-12 is a high-performance single solenoid valve engineered for precise pneumatic applications. Designed with a durable die-cast aluminum body and equipped with the MSEB-3-24V DC solenoid coil, it ensures reliable actuation and long-term efficiency.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE24-M1H-5L-QS-12
Part No.: 163182
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston gate valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 ... 10 bar |
| Nominal Flow Rate | 1650 l/min |
| Pneumatic Connection | QS-12 |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |
| Solenoid Coil | FESTO MSEB-3-24V DC |
| Part No. | 389614 D |
| Supply Voltage | 24.6 ... 26.4 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00 / IP65 |
