Festo 163368 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
The Festo DNC-50-70-PPV-A ISO Cylinder is a double-acting pneumatic actuator with a 50 mm bore, 70 mm stroke, square body, and G 1/4 connection, ideal for precision-driven industrial applications.1/4125070ActingActuatorAirAutomationbarBodyboreCompressedconnectionCylinderDNC-50-70-PPV-ADoubleFestoGIndustrialISOmalemmOnePistonPneumaticPressureRODsideSquareStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

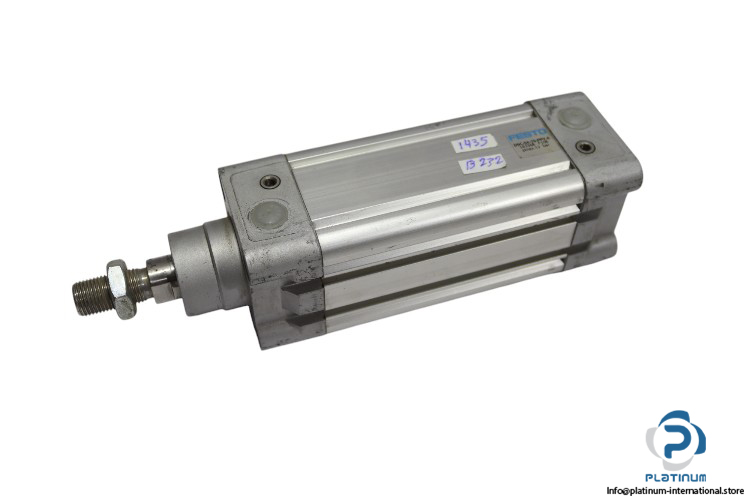

Festo DNC-50-70-PPV-A ISO Cylinder
The Festo DNC5070PPVA ISO Cylinder is a robust and precise actuator designed for industrial pneumatic applications. With a square body shape and one-sided rod direction, this double-acting cylinder provides reliable performance using compressed air at pressures up to 12 bar.
Manufacturer: FESTO
Type: ISO Cylinder

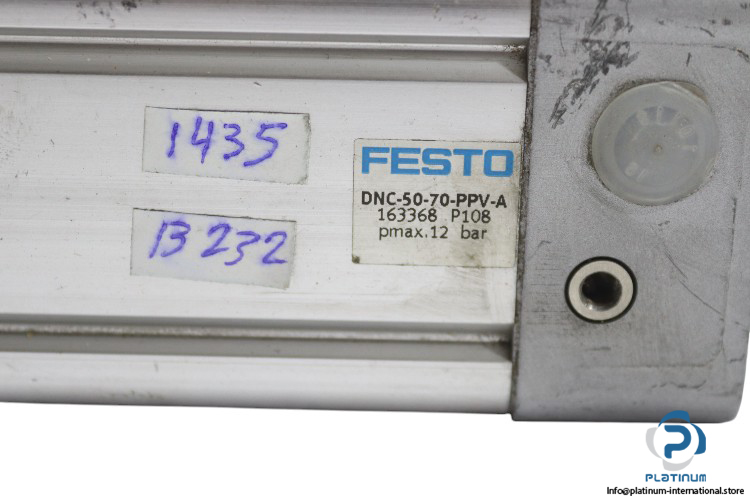

Model: DNC-50-70-PPV-A
Part No.: 163368
| Media | Compressed Air |
| Bore Diameter | 50 mm |
| Stroke | 70 mm |
| Bore x Stroke | 50 x 70 mm |
| Rod Diameter | 20 mm |
| Frame Dimensions | 64 x 210 mm |
| Pneumatic Connection | G 1/4 |
| Pressure Max. | 12 bar |
| Operation Mode | Double |
| Piston Rod End | Male |
| Shape | Square |
| Rod Direction | One Side |
