Festo 163462 ISO Cylinder With Brake
Used
In stock1 unitReady to ship
ISO CYLINDER
Robust ISO pneumatic cylinder with 800 mm stroke and 100 mm piston diameter. Features adjustable cushioning, anodized aluminum barrel, and dual pneumatic ports for precise linear motion control.800ActuatorAdjustableAluminumAutomationBarrelComponentCushioningCylinderDNC-100-800-PPV-A-KPdouble-actingFestog1/2IndustrialISOmmPneumaticStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

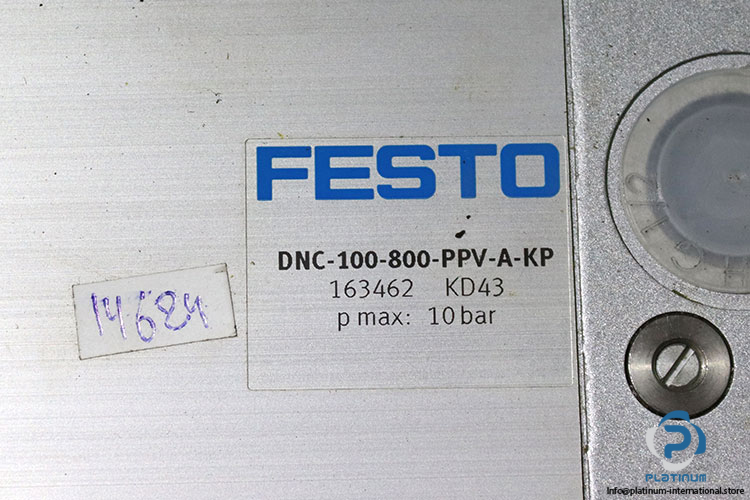

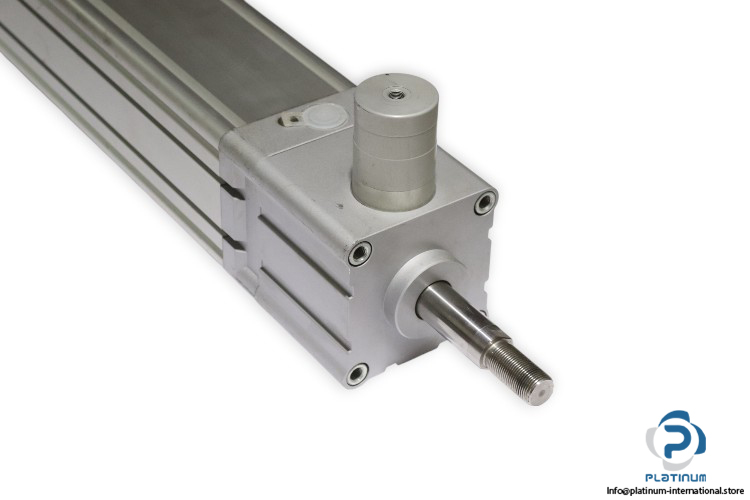

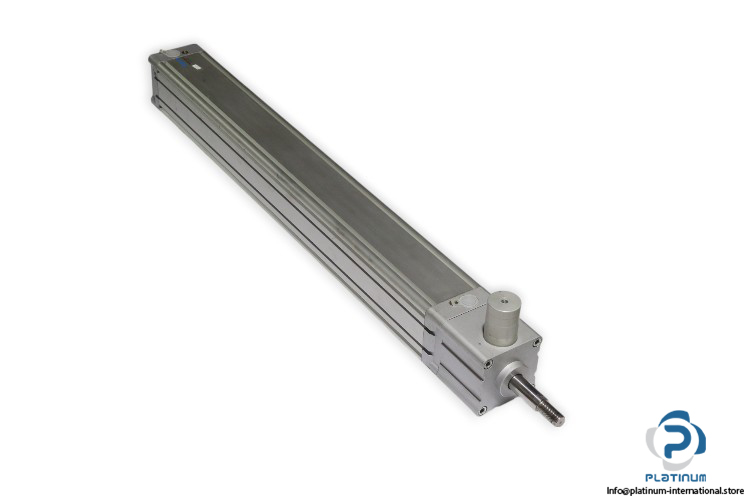

FESTO DNC-100-800-PPV-A-KP ISO CYLINDER WITH BRAKE
High-performance ISO cylinder from Festo, engineered for durability and precise linear motion in pneumatic systems. This double-acting cylinder features a long stroke and integrated pneumatic cushioning for smooth, controlled operation.
Manufacturer: Festo
Type: ISO Cylinder with Brake
Model: DNC-100-800-PPV-A-KP
Part No.: 163462
Ref. Code: KD43
| Stroke | 800 mm |
| Piston Diameter | 100 mm |
| Operating Pressure | Max. 10 bar |
| Mode of Operation | Double-acting |
| Operating Medium | Compressed air |
| Cushioning | Pneumatic cushioning, adjustable at both ends |
| Cover Material | Die-cast aluminum, coated |
| Material of Cylinder Barrel | Wrought aluminum alloy, smooth anodized |
| Ambient Temperature | -20 °C to 80 °C |
| Pneumatic Connection | G1/2, G1/8 |
