Festo 163474 ISO Cylinder
Used
In stock1 unitReady to ship
ISO Cylinder
FESTO ISO Cylinder DNC-100-320-PPV-A is designed for efficient pneumatic operation with a 100 mm bore diameter and 320 mm stroke. Features G 1/2 pneumatic connection, male piston rod end, and square shape, making it suitable for demanding applications.1/2100AirboreCompressedconnectionCylinderDNC-100-320-PPV-Adouble-actingEndFestoGIndustrialISOmalemmPistonPneumaticRODShapeSquare
New
Available on request
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

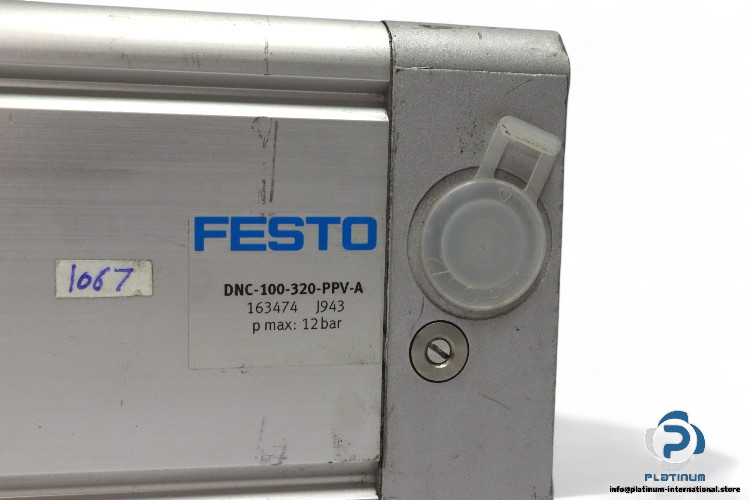

FESTO ISO Cylinder DNC-100-320-PPV-A
The FESTO ISO Cylinder DNC-100-320-PPV-A is a high-performance pneumatic cylinder designed for use in industrial applications. Featuring a 100 mm bore diameter and a 320 mm stroke, it offers efficient operation with compressed air. This double-acting cylinder is built for durability and reliability, making it ideal for demanding environments.
Manufacturer: FESTO
Model: DNC100320PPVA
Part No.: 163474
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 100 mm
- Stroke: 320 mm
- Bore x Stroke: 100 x 320 mm
- Rod Diameter: 25 mm
- Frame Dimensions: 112 x 505 mm
- Pneumatic Connection: G 1/2
- Pressure Max.: 12 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
