Festo 163506 ISO Cylinder
ISO Pneumatic Cylinder

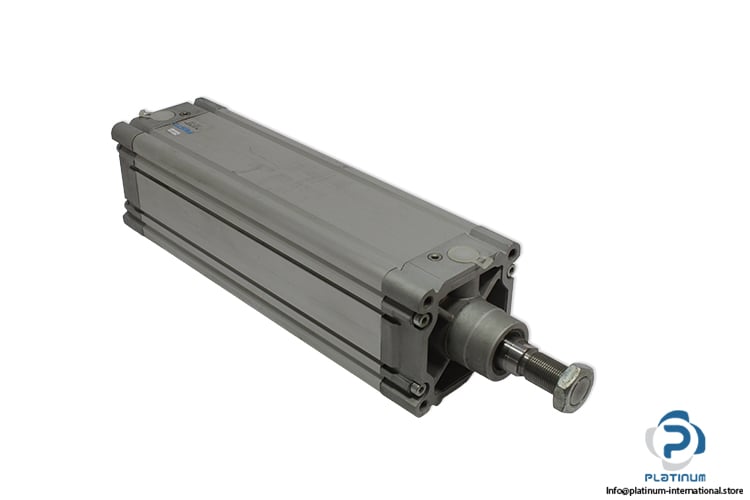

Festo ISO-standard double-acting pneumatic cylinder with 125 mm bore and 320 mm stroke, featuring adjustable cushioning and proximity switch compatibility.Festo DNC-125-320-PPV-A ISO Cylinder
A heavy-duty ISO-standard pneumatic cylinder engineered by Festo for reliable linear motion in industrial automation applications. Designed with adjustable pneumatic cushioning and robust construction, this double-acting cylinder ensures smooth operation, precise positioning, and long service life under demanding conditions. Manufacturer: Festo
Type: ISO Cylinder

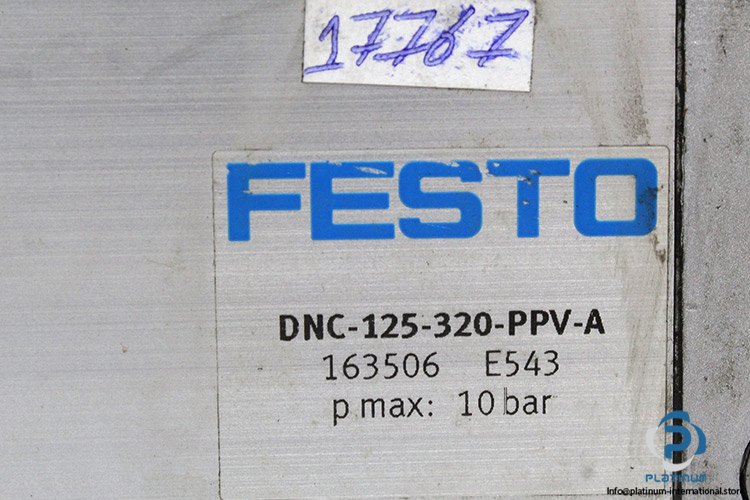

Model: DNC-125-320-PPV-A
Part No.: 163506
Code: E543
Recommendation:
This Festo ISO cylinder is ideal for automation systems requiring powerful, precise, and repeatable linear motion. For optimal performance and system integration, it is recommended to pair this cylinder with compatible Proximity Sensors, reliable Air Filters, and other pneumatic components available at Platinum International to ensure clean air supply, accurate position feedback, and extended service life.
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Stroke Length | 320 mm |
| Piston Diameter | 125 mm |
| Rod Diameter | 32 mm |
| Frame Dimension | 134 × 478 mm |
| Cushioning | Pneumatic Cushioning, Adjustable at Both Ends |
| Piston Rod End | Male Thread |
| Position Detection | Via Proximity Switch |
| Variants | Piston Rod at One End |
| Shape | Square |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | G 1/2 |
| Ambient Temperature | -20 to +80 °C |
| Material “ Cover | Die-Cast Aluminum, Coated |
| Material “ Seals | TPE-U (PU) |
| Material “ Piston Rod | High-Alloy Steel |
| Material “ Cylinder Barrel | Wrought Aluminum Alloy, Smooth Anodized |
