Festo 163786 Single Solenoid Valve
Used
Available on request
SINGLE SOLENOID VALVE
FESTO CPE18-M3H-5L-1/4 single solenoid valve with MSEB-3-230VAC coil delivers 5/2-way monostable pneumatic control, ideal for compressed air systems.5/2-WayAircoilCompressedControlCPE18-M3H-5L-1/4FestoG1/4IndustrialMSEB-3-230VACPneumaticSinglesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

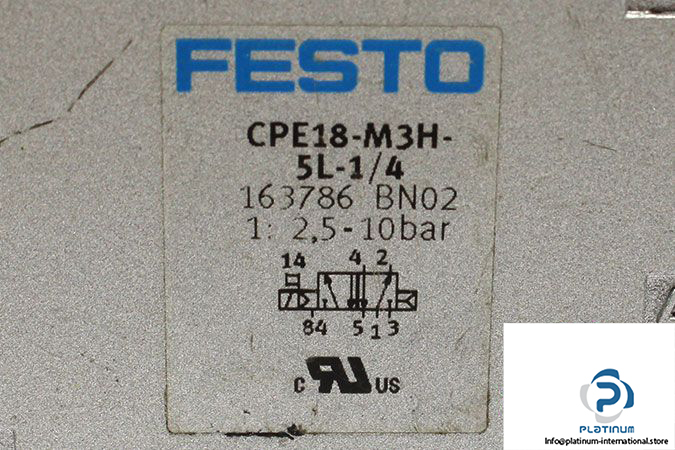

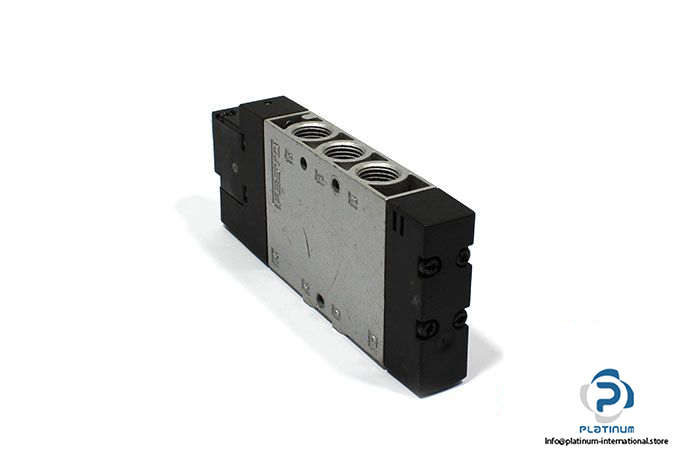

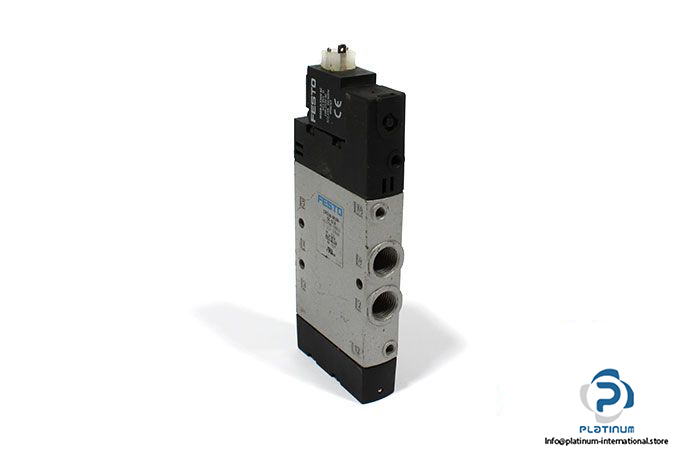

FESTO CPE18-M3H-5L-1/4 SINGLE SOLENOID VALVE WITH COIL
The FESTO CPE18-M3H-5L-1/4 is a robust 5/2-way monostable single solenoid valve engineered for precise pneumatic control. Designed with a piston gate mechanism and die-cast aluminum body, it offers reliable operation in compressed air applications. This valve is paired with the FESTO MSEB-3-230VAC solenoid coil for efficient electrical actuation.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: CPE18-M3H-5L-1/4
Part No.: 163786
Coil Technical Information
| Fluid | Compressed Air |
| Design | Piston Gate Valve |
| Function | 5/2-way, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2.5 / 10 bar |
| Nominal Flow Rate | 1500 l/min |
| Pneumatic Connection | G1/4 |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -5 / 50 °C |

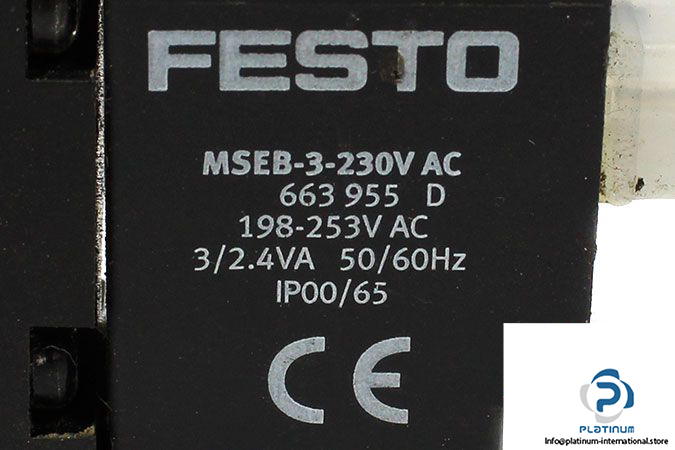

| Attachment | FESTO MSEB-3-230VAC SOLENOID COIL |
| Part No. | 663955 |
| Supply Voltage | 198 ... 253 V AC |
| Frequency | 50 ... 60 Hz |
| Power Consumption | 3 / 2.4 W |
| Protection Class | IP00 / IP65 |
