Festo 164040 Flat Cylinder

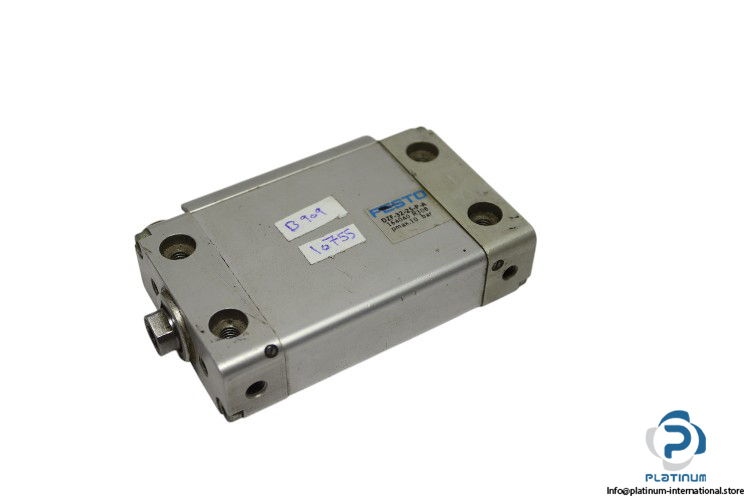

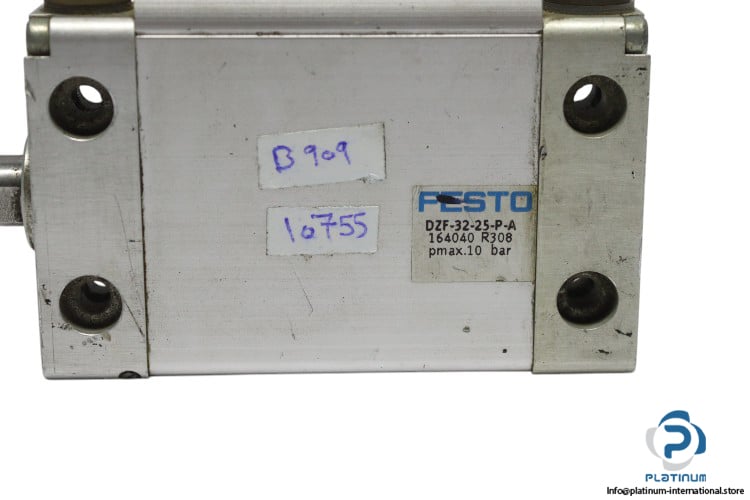

FESTO Flat Cylinder DZF-32-25-P-A

The FESTO Flat Cylinder DZF-32-25-P-A is designed for efficient actuation in pneumatic systems, offering reliable performance in various industrial applications. With a stroke length of 25 mm and a piston diameter of 32 mm, this double-acting cylinder operates between 1 and 10 bar of pressure. Its female-threaded piston rod end and durable steel material ensure long-lasting use, while the G 1/8 pneumatic connection provides flexibility for installation. With a temperature range of -20 to 80°C, this cylinder is ideal for a wide range of operating conditions.

Manufacturer: FESTO

Type: Flat Cylinder

Model: DZF-32-25-P-A

Part No.: 164040

Technical Specifications

• Fluid: Compressed Air
• Stroke Length: 25 mm
• Piston Diameter: 32 mm
• Operating Pressure: 1 / 10 bar
• Operation Mode: Double-Acting
• Piston-Rod End: Female Thread
• Material: Steel
• Pneumatic Connection: G 1/8
• Temperature: -20 / 80 °C
