Festo 164084 Flat Cylinder
Used
In stock5 unitsReady to ship
Flat Cylinder
FESTO DZF-63-50-P-A Flat Cylinder is designed for compact pneumatic applications. With a 50 mm stroke length, 63 mm piston diameter, and double-acting operation, it ensures efficient force transmission and reliable performance. Constructed from anodized wrought aluminium alloy, it offers superior durability and corrosion resistance.1/450mm63mmActuatorAluminiumAnodizedAutomationconnectionCylinderdiameterdouble-actingDZF-63-50-P-AFestoFlatGhigh-precisionIndustrialPistonpneumaPneumaticSpace-SavingStroke
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

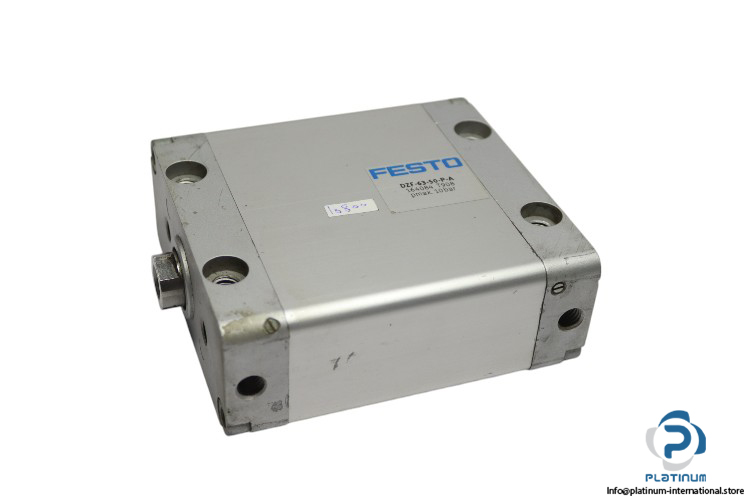

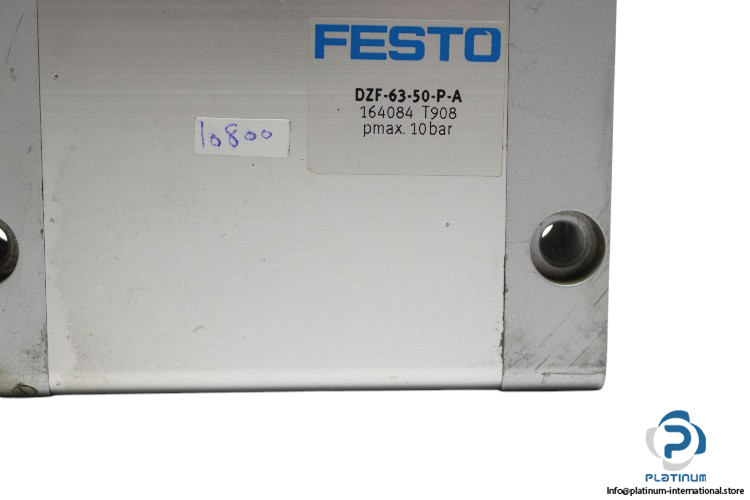

FESTO DZF-63-50-P-A Flat Cylinder
The FESTO DZF-63-50-P-A Flat Cylinder is a high-performance pneumatic actuator designed for space-saving applications while ensuring precision and durability. Built for industrial automation, this double-acting cylinder operates efficiently with compressed air, delivering smooth motion and reliable force transmission.
Manufacturer: FESTO
Type: Flat Cylinder
Model: DZF-63-50-P-A
Part No.: 164084
| Fluid | Compressed Air |
| Stroke Length | 50 mm |
| Piston Diameter | 63 mm |
| Operating Pressure | 1 ... 10 bar |
| Operation Mode | Double-Acting |
| Pneumatic Connection | G 1/4 |
| Material | Anodized Wrought Aluminium Alloy |
| Temperature Range | -20 / 80 °C |
