Festo 1646806 ISO Cylinder
Used
In stock1 unitReady to ship
FESTO DSBG-100-125-PPVA-N3 ISO CYLINDER The FESTO DSBG-100-125-PPVA-N3 ISO Cylinder provides reliable performance with a 100 mm bore, 125 mm stroke, and 12 bar max pressure, ideal for various industrial applications.
ActingboreCylinderCylindersdiameterDoubleg1/2IndustrialMaxOperatingPistonPortPressurereliableRODShapeSquareStrokeTemperature
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

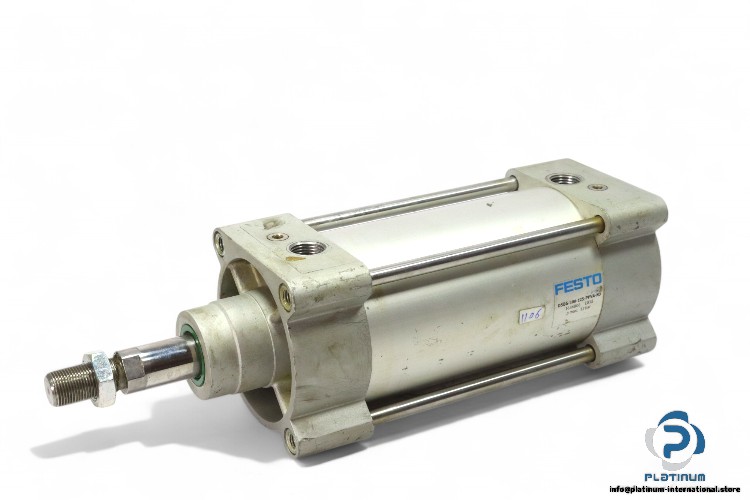

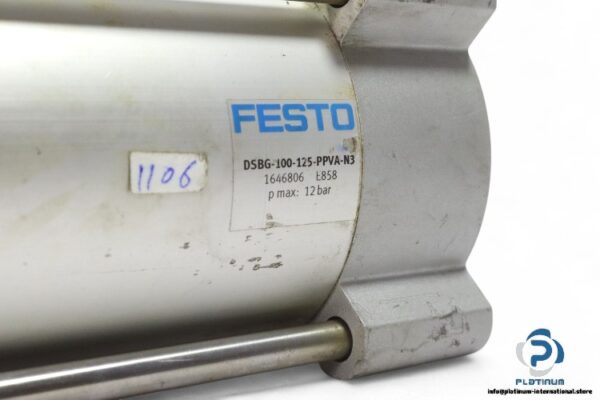

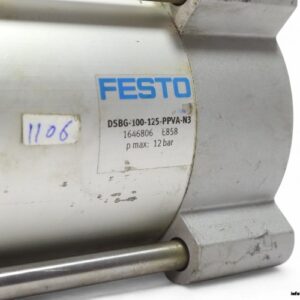

FESTO DSBG-100-125-PPVA-N3 ISO CYLINDER
The FESTO DSBG-100-125-PPVA-N3 ISO Cylinder offers robust and precise performance in various industrial applications. With a 100 mm bore diameter and 125 mm stroke, this cylinder is designed to operate at high efficiency and withstand demanding conditions.
Manufacturer: FESTO
Type: ISO CYLINDER
Model: DSBG-100-125-PPVA-N3
Part No.: 1646806
Technical Specifications
- Bore Diameter: 100 mm
- Stroke: 125 mm
- Rod Diameter: 25 mm
- Mode of Operation: Double acting
- Shape: Square
- Rod Direction: One Side
- Piston Rod End: Male
- Max Temperature: 80 °C
- Max Operating Pressure: 12 bar
- Port Size: G1/2
