Festo 165073 Shut OFF Valve
New
In stock1 unitReady to ship
Shut Off Valve
FESTO HEE-1/4-D-MINI-230 Shut Off Valve is an electrically actuated piston gate valve designed for industrial compressed air applications. With a pressure range of 2.5 to 16 bar, a nominal flow rate of 1500 l/min, and a robust die-cast aluminum housing, it ensures precise and reliable operation. Includes FESTO 670825 Solenoid Coil.15001650732.5-16670825AirbarcoilCompressedElectricalFestoGateIndustriall/minOffPilot-ControlledPistonShutsolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

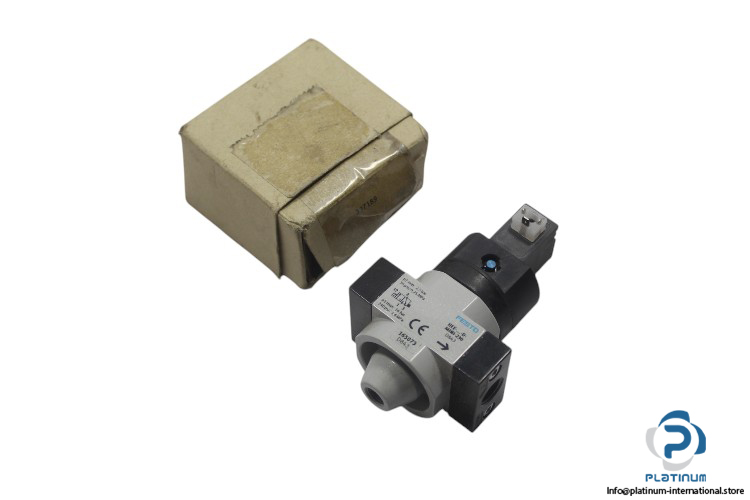

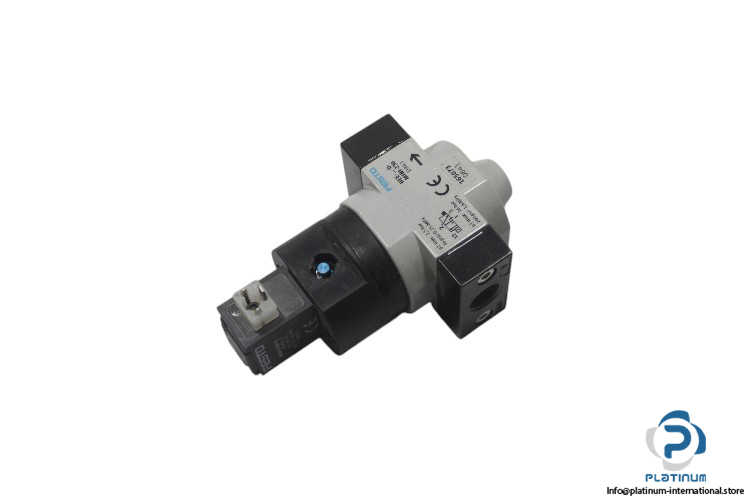

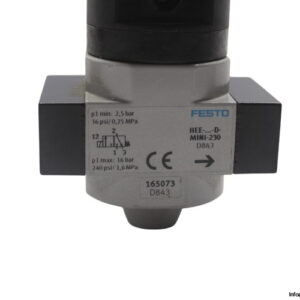

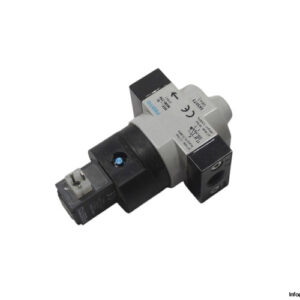

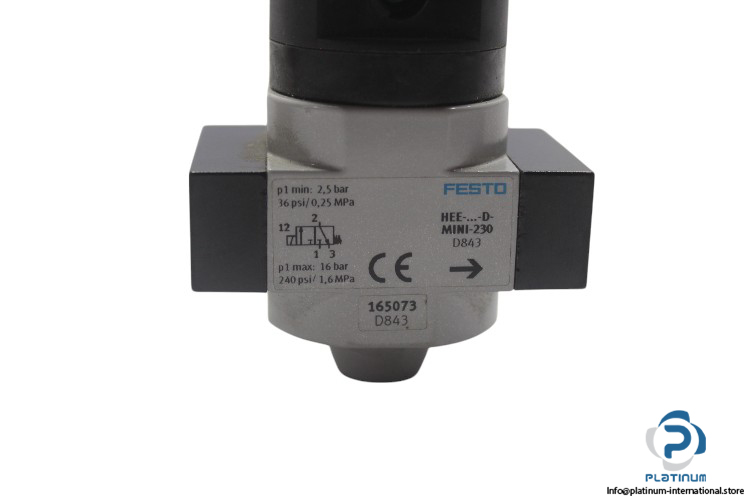

FESTO HEE-1/4-D-MINI-230 Shut Off Valve
The FESTO HEE-1/4-D-MINI-230 Shut Off Valve is an electrically actuated piston gate valve designed for efficient control of compressed air systems. With a robust die-cast aluminum housing and a pilot-controlled mechanism, it operates reliably under pressures ranging from 2.5 to 16 bar. This valve ensures high flow rates and precise shut-off capabilities in industrial automation systems.
- Manufacturer: FESTO
- Type: Shut Off Valve
- Model: HEE-1/4-D-MINI-230
- Part No: 165073
Technical Specifications
- Structural Design: Piston gate valve
- Actuation Type: Electrical
- Reset Method: Mechanical spring
- Type of Control: Pilot-controlled
- Operating Pressure: 2.5 bar … 16 bar
- Standard Nominal Flow Rate: 1500 l/min
- Operating Medium: Compressed air
- Ambient Temperature: -10 °C … 60 °C
- Housing Material: Die-cast aluminum
- Port Size: G1/4

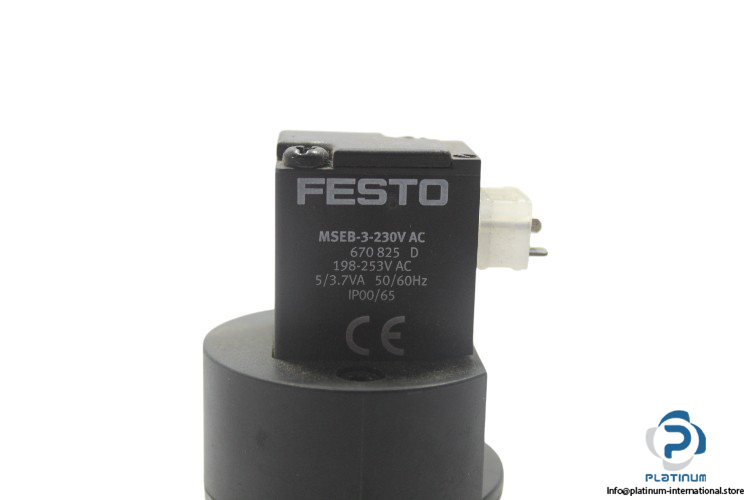

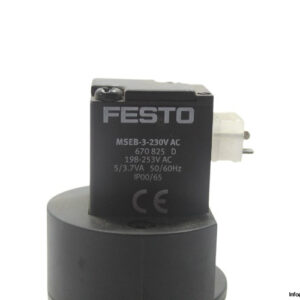

Attached Component: FESTO 670825 Solenoid Coil
- Manufacturer: FESTO
- Type: Solenoid Coil
- Model: MSEB-3-230V AC
- Part No: 670825
- Coil Characteristics: 230 V AC: 50/60 Hz, initial power 5.0 VA, holding power 3.7 VA
