Festo 170204 Double Solenoid Valve
New
In stock1 unitReady to ship
35,00$
DOUBLE SOLENOID VALVE
FESTO CPE14-M1H-5/3G-1/8 double solenoid valve with MSZD-3-24 DC coil provides 5/3-way pneumatic control with closed mid-position and 750 l/min flow rate.5/3AirAluminumcoilControlCPE14-M1H-5/3G-1/8dcdie-castDoubleElectricalFestoG1/8IndustrialMSZD-3-24PneumaticsolenoidThreadValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

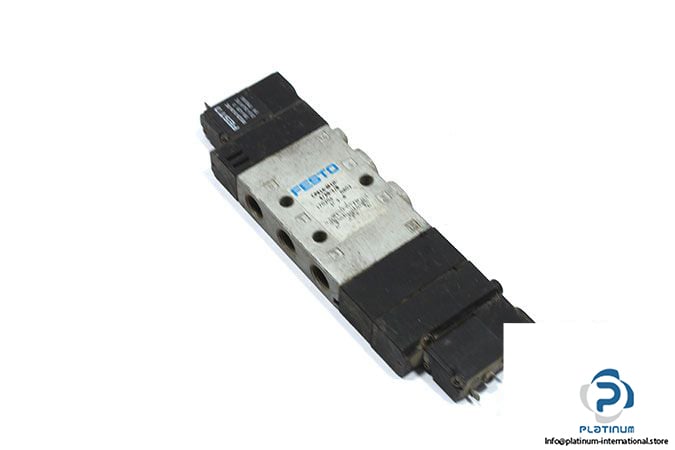

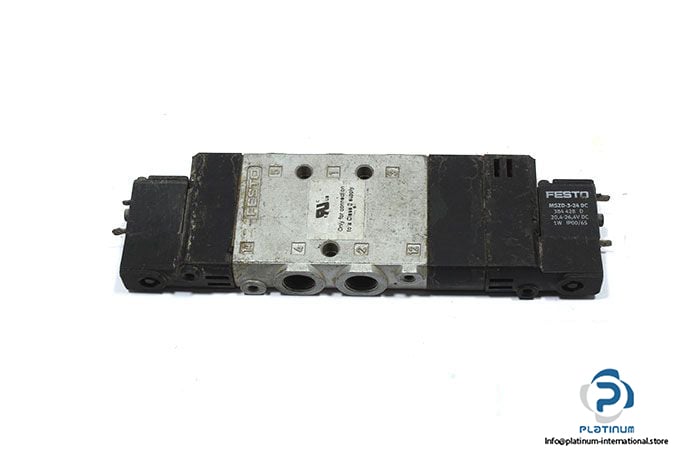

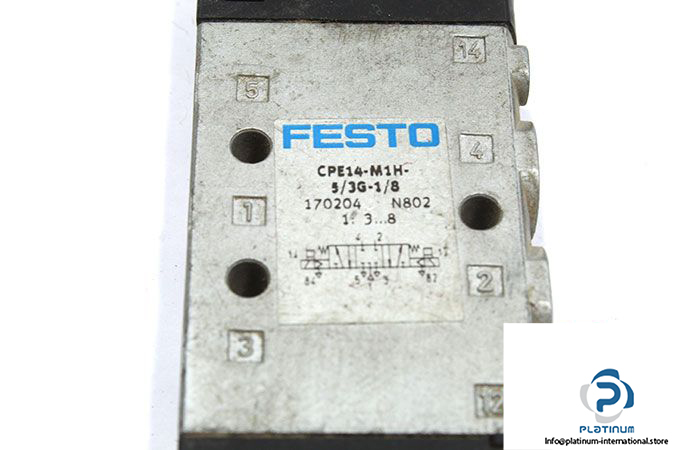

FESTO CPE14-M1H-5/3G-1/8 DOUBLE SOLENOID VALVE WITH MSZD-3-24 DC COIL
The FESTO CPE14-M1H-5/3G-1/8 is a compact and high-performance 5/3-way double solenoid valve designed with a piston slide for optimal control in pneumatic systems. This unit features electrical actuation and comes with a FESTO MSZD-3-24 DC solenoid coil for dependable operation.
Manufacturer: FESTO
Type: Double Solenoid Valve
Model: CPE14-M1H-5/3G-1/8
Part No.: 170204
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/3-way valve, closed in mid-position |
| Type of Actuation | Electrically |
| Operating Pressure | 3 ... 8 bar |
| Nominal Flow Rate | 750 l/min |
| Pneumatic Connection | G1/8 Female thread |
| Material | Die-cast aluminum |
| Ambient Temperature | -5 / 50 °C |

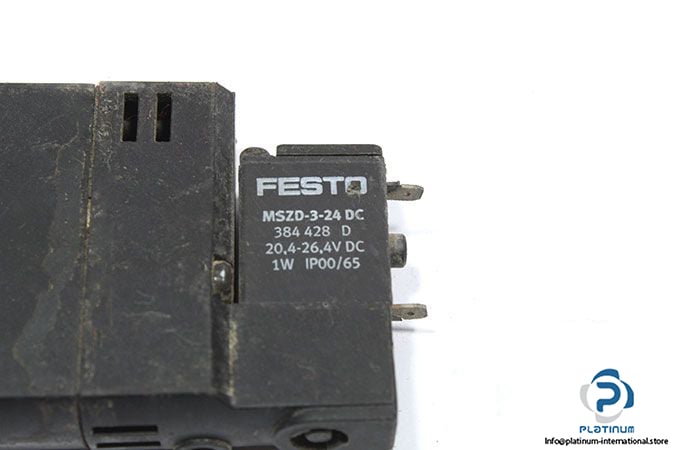

| Solenoid Coil Attachment | FESTO MSZD-3-24 DC |
| Part No. | 384428 |
| Supply Voltage | 20.4 ... 26.4 V DC |
| Power Consumption | 1 W |
| Protection Class | IP00 / IP65 |
