Festo 170216 Double Solenoid Valve With Coil
Used
In stock1 unitReady to ship
Double Solenoid Valve
Festo CPE14-M1H-5/3G-QS8 5/3-way double solenoid valve with piston slide design, 2“10 bar pressure range, 680 l/min flow rate, and G1/8 connection, supplied with MSZD-3-24 DC solenoid coil.1702163844285/3680AircoilControlCPE14-M1H-5/3G-QS8dcDoubleFestoG1/8Industriall/minMSZD-3-24PistonPneumaticSlidesolenoidVValveWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

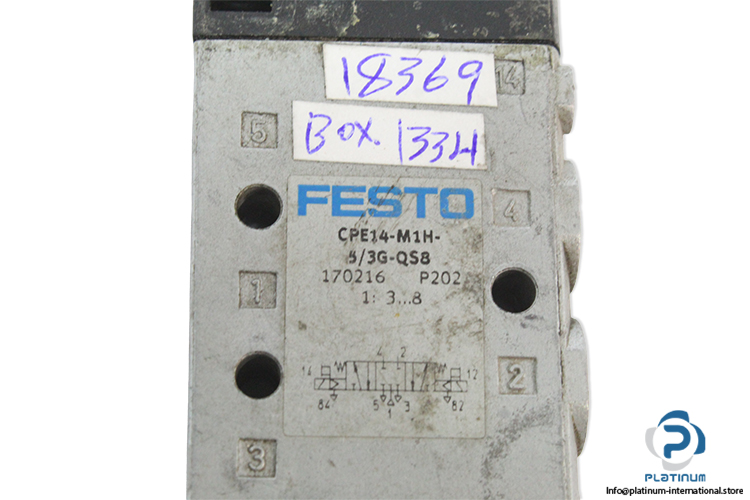

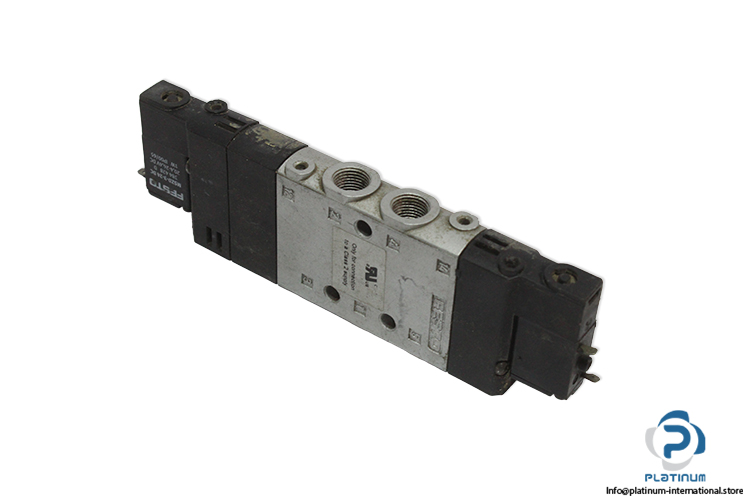

Festo CPE14-M1H-5/3G-QS8 Double Solenoid Valve
The Festo CPE14-M1H-5/3G-QS8 is an industrial double solenoid valve designed for precise pneumatic control applications. It features a piston slide design and is suitable for air systems requiring reliable switching performance.
Manufacturer: Festo
Type: Double Solenoid Valve
Model: CPE14-M1H-5/3G-QS8
Part No.: 170216

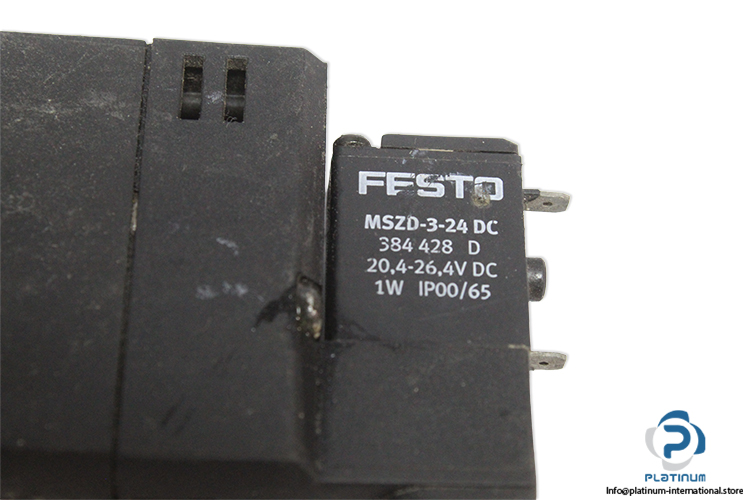

Attachment “ Solenoid Coil
| Fluid | Air |
| Design | Piston Slide |
| Function | 5/3 Way |
| Type Of Actuation | Electrically |
| Operating Pressure | 2 / 10 bar |
| Nominal Flow Rate | 680 l/min |
| Pneumatic Connection | G1/8 |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -5 / 50 °C |
| Part No. | 384428 |
| Supply Voltage | 20,4 / 26,4 V DC |
| Power Consumption | 1 W |
| Protection Class | IP00/65 |
