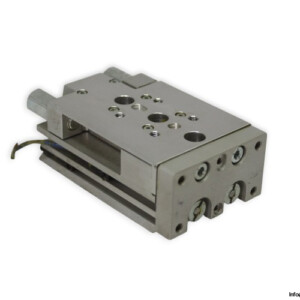

Festo 170556 Mini Slide Actuator
New
In stock1 unitReady to ship
Mini Slide Actuator
The Festo SLT-10-30-P-A mini slide actuator features a 30 mm stroke, 10 mm piston, and 1“10 bar pressure range with double-acting operation for compact automation.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

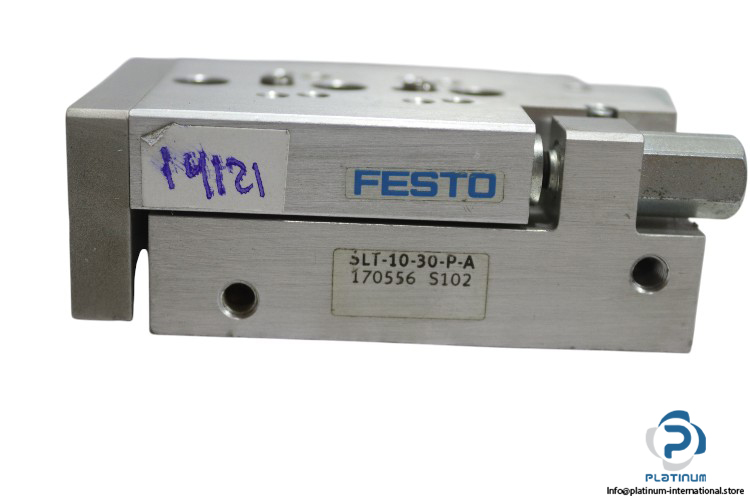

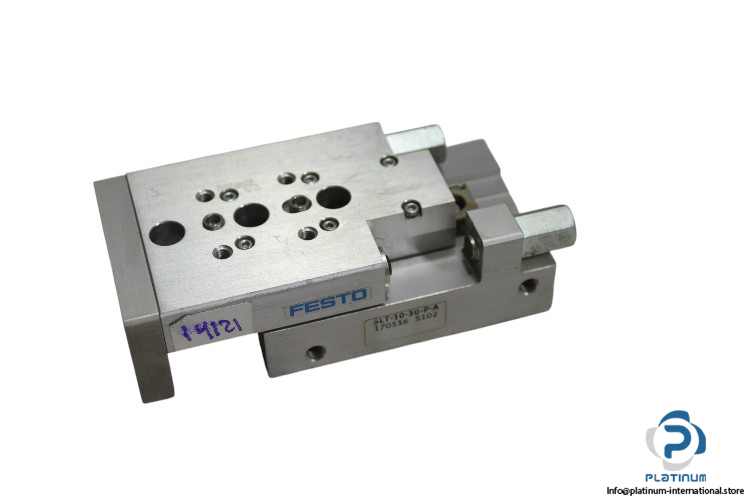

Festo SLT-10-30-P-A Mini Slide Actuator
The Festo SLT-10-30-P-A (Part No. 170556 S102) is a compact and precise mini slide actuator ideal for limited-space industrial automation setups. With a double-acting mode of operation and high-pressure handling up to 10 bar, it provides smooth and reliable linear motion.
Manufacturer: Festo
Type: Mini Slide Actuator
Model: SLT-10-30-P-A
Part No.: 170556 S102
| Stroke | 30 mm |
| Adjustable End-Position Range/Length | 4 mm |
| Piston Diameter | 10 mm |
| Operating Pressure | 1 ... 10 bar |
| Mode of Operation | Double-acting |
| Ambient Temperature | -20 ... 60 °C |
| Mounting Type | With through hole |
| Pneumatic Connection | M5 |
