Festo 170681 On/Off Valve With Pressure Regulator
Used
In stock1 unitReady to ship
On/Off Valve With Pressure Regulator
Festo HE-D-MINI on/off valve with integrated pressure regulator for manual control and regulation of compressed air in MINI size pneumatic systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

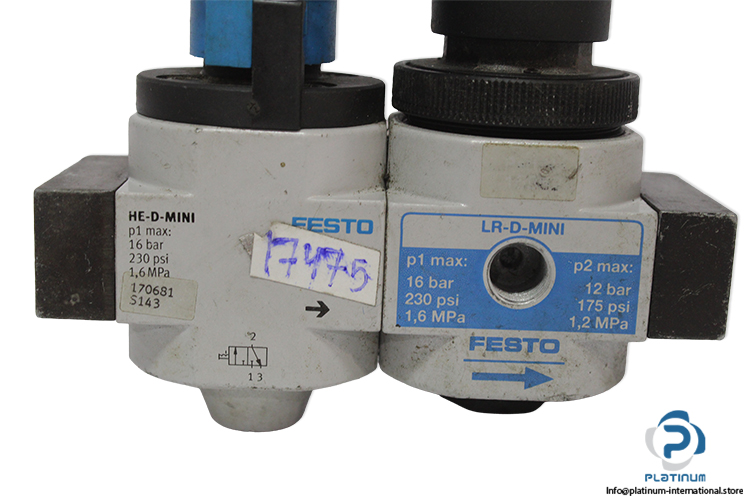

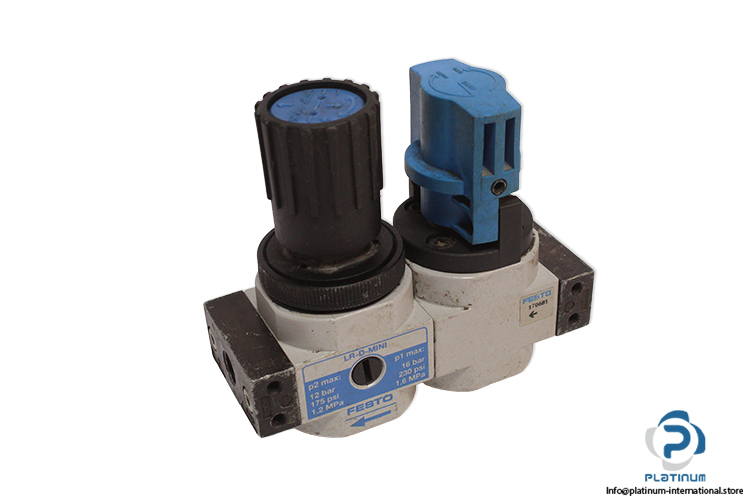

Festo HE-D-MINI On/Off Valve With Pressure Regulator
A compact on/off valve with integrated pressure regulation manufactured by Festo, designed for manual control of compressed air in industrial pneumatic systems. The unit combines a piston gate valve with a pressure regulator, providing reliable shut-off, pressure control, and stable airflow in MINI size installations.
Manufacturer: Festo
Type: On/Off Valve With Pressure Regulator
Model: HE-D-MINI
Part No.: 170681
Code: S143
| Medium | Compressed Air |
| Design | Piston Gate Valve |
| Valve Function | 3/2 Bistable |
| Type of Actuation | Manual |
| Operating Pressure | 0 to 16 bar |
| Pneumatic Connection | G 1/8 |
| Material | Die-Cast Aluminum |
| Ambient Temperature | -10 to 60 °C |
| Attachment “ FESTO LR-D-MINI PRESSURE REGULATOR Manufacturer | Festo |
| Media | Air |
| Size | Mini |
| Actuator Lock | Rotary Knob With Detent |
| Operating Pressure | 1 to 16 bar |
| Pressure Regulation Range | 0.5 to 12 bar |
| Pneumatic Connection | G 1/8 |
| Flow Rate | 800 l/min |
| Housing Material | Die-Cast Aluminum |
| Ambient Temperature | -10 to 60 °C |
