Festo 170686 Branching Module With Pressure Switch
New
In stock1 unitReady to ship
Branching Module
FESTO FRM-D-MAXI Branching Module is a durable and high-precision pneumatic component with a die-cast zinc body, designed for air distribution at 0-16 bar pressure. It includes the FESTO PEV-1/4-B-OD Pressure Switch, providing reliable pressure monitoring with a 1-12 bar range.0/16175250AirANDbarBranchingCompressedconnectionsDistributionFestoG1/4G3/4high-performanceIndustrialModulemonitoringPneumaticPressureSwitchSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

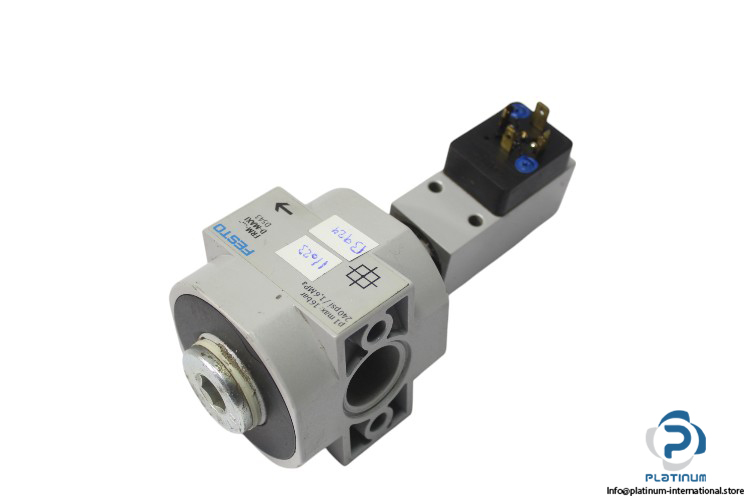

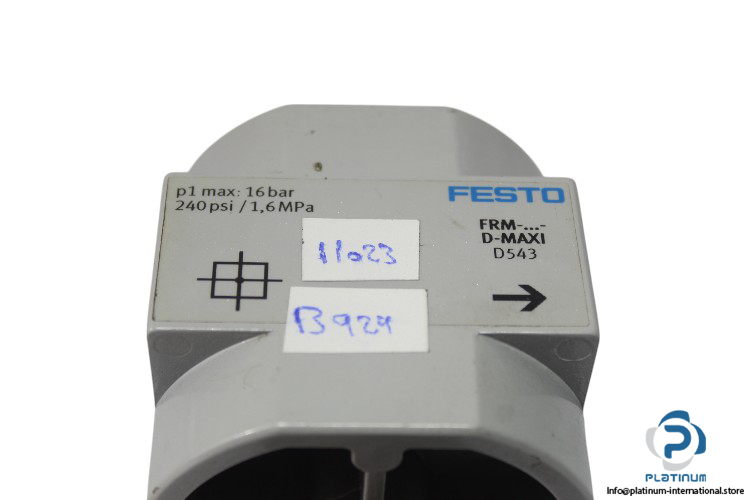

FESTO FRM-D-MAXI Branching Module with Pressure Switch
The FESTO FRM-D-MAXI Branching Module is a robust and high-performance pneumatic component designed for precise air distribution in industrial applications. Made from durable die-cast zinc, this module operates efficiently at pressures ranging from 0 to 16 bar. It comes equipped with the FESTO PEV-1/4-B-OD Pressure Switch, ensuring accurate pressure monitoring for enhanced system control and reliability.
- Manufacturer: FESTO
- Type: Branching Module
- Model: FRM-D-MAXI
- Part No.: 170686
Technical Specifications
- Operating Pressure: 0 bar … 16 bar
- Operating Medium: Compressed Air
- Housing Material: Die-cast Zinc
- Pneumatic Connection 3: G3/4
- Pneumatic Connection 4: G1/4

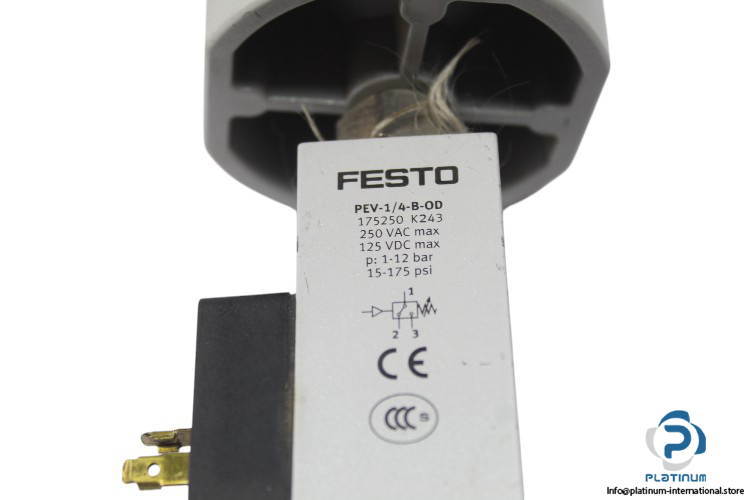

Attached Pressure Switch “ FESTO PEV-1/4-B-OD
- Manufacturer: FESTO
- Type: Pressure Switch
- Model: PEV-1/4-B-OD
- Part No.: 175250
- Fluid: Air, Water
- Measurement Method: Pneumatic/Electric Pressure Transducer
- Operating Pressure: 1 / 12 bar
- Connection: G ¼, Threaded
- Supply Voltage: 250 V AC, 125 V DC
- Fluid Temperature Range: -20 / 80°C
