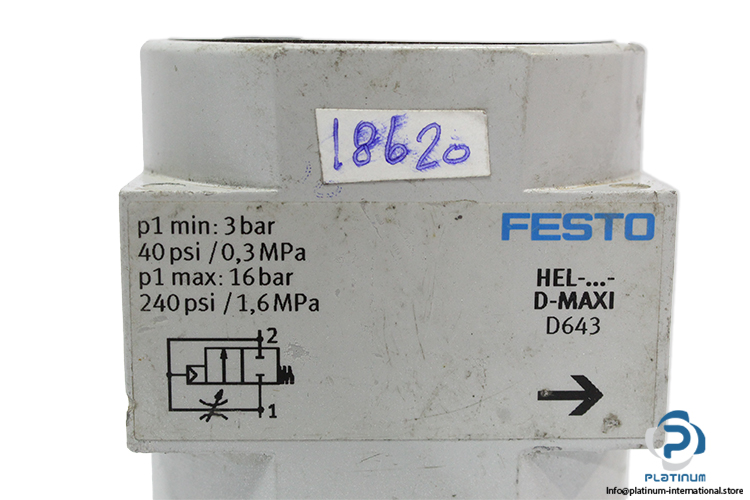

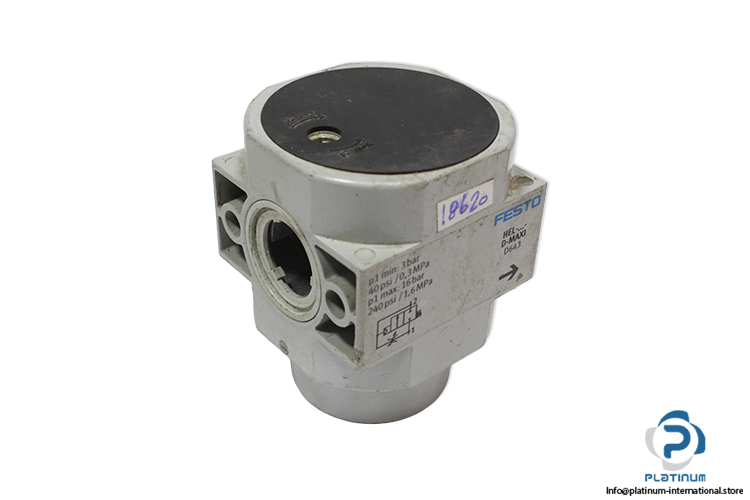

Festo 170692 On/Off Valve
On/Off Valve FESTO HEL-D-MAXI pneumatic on/off valve with piston gate design, soft sealing, and operating pressure range from 3 to 16 bar, suitable for compressed air systems.
Manufacturer: FESTO
Type: On/off valve
Model: HEL-...-D-MAXI / HEL-D-MAXI
Part no: 170692
Exhaust air function
With flow control option
Actuation type
Pneumatic
Sealing principle
Soft
Mounting position
Any
Manual override
None
Structural design
Piston gate valve
Reset method
Mechanical spring
Type of control
Direct
Flow direction
Non-reversible
Symbol
00991513
Valve function
2/2, closed, monostable
Operating pressure
3 bar ... 16 bar
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Inert gas
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
2 - Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Air quality class at the output
Compressed air as per ISO 8573-1:2010 [7:4:4]
Inert gas
Ambient temperature
-10 °C ... 60 °C
Seals material
NBR
Housing material
Die-cast aluminum
| Part No. | 170692 |
| Condition | used |
| Specification | Value |
|---|---|
| Weight | 0,38 kg |
| Type of Product | On/Off Valve |
| Manufacturer | FESTO |
| Model | HEL-...-D-MAXI / HEL-D-MAXI |
| Shelf No. | 260303 |
