Festo 170834 Guided Actuator
Used
In stock1 unitReady to ship
Guided Actuator
The Festo DFM-16-25-P-A-GF guided actuator offers precise control with a 16mm piston, 25mm stroke, and double-acting operation. Designed with a sliding guide and M5 pneumatic connections, it operates efficiently in varying pressure conditions.16mm25mmActuatorAutomationdouble-actingFestoGuideGuidedIndustrialPistonPneumaticProximitySensorSlidingStroke
New
In stock
This product is also available brand new
View New Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

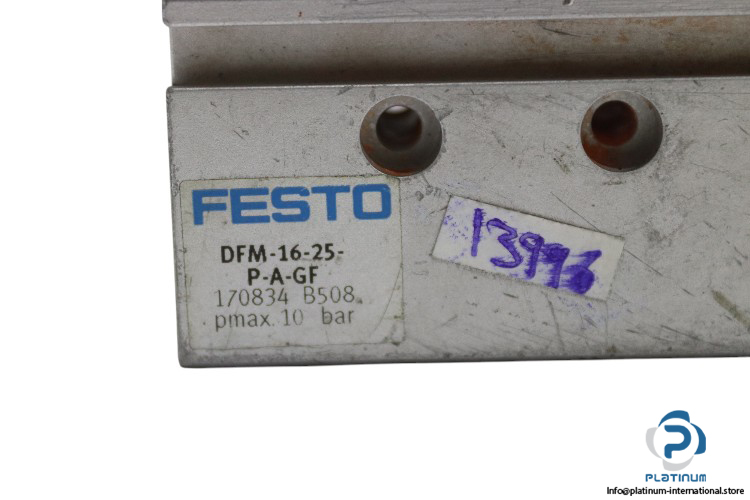

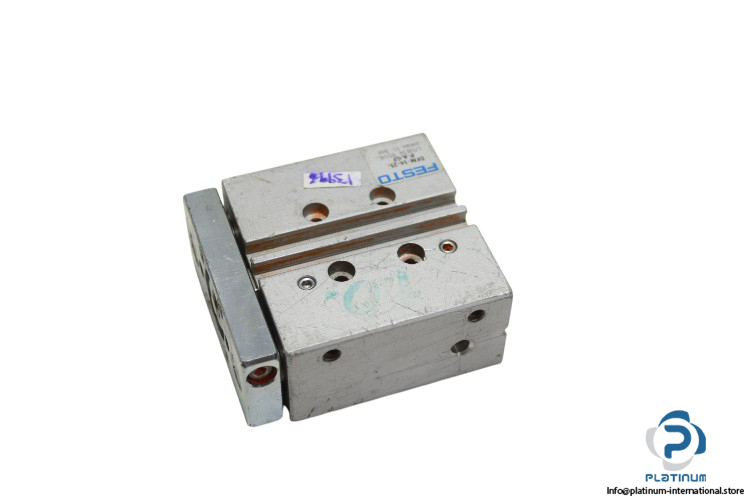

Festo DFM-16-25-P-A-GF Guided Actuator
The Festo DFM-16-25-P-A-GF is a high-performance guided actuator designed for precision movement and control in industrial automation applications. Featuring a double-acting operation mode and a sliding guide design, it offers reliable and smooth performance under varying pressure conditions.
Manufacturer: FESTO
Type: Guided Actuator
Model: DFM-16-25-P-A-GF
Part No.: 170834
Technical Data:
- Operating Pressure: 2 / 10 bar
- Distance of Center of Gravity of Payload to Yoke Plate (xs): 50 mm
- Piston Diameter: 16 mm
- Stroke: 25 mm
- Design: Guide
- Guide: Sliding Guide
- Mode of Operation: Double-Acting
- Position Sensing: For Proximity Sensor
- Ambient Temperature: -20 / 80 °C
- Pneumatic Connections: M5
- Material: Wrought aluminum alloy
