Festo 170929 Guided Actuator
Used
In stock1 unitReady to ship
guided actuator
The Festo Guided Actuator DFM-32-20-P-A-KF (Part No. 170929) offers reliable, double-acting linear motion with a 20 mm stroke and a 32 mm piston diameter for industrial applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

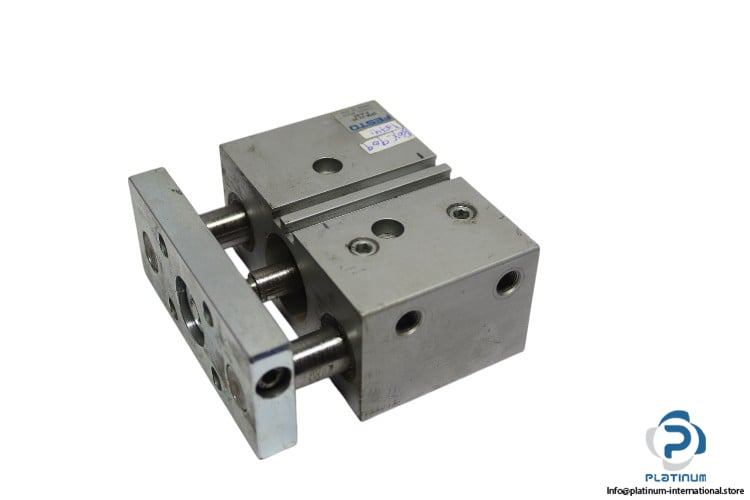

FESTO GUIDED ACTUATOR
The Festo Guided Actuator (Model: DFM-32-20-P-A-KF, Part No. 170929) is a reliable solution for precise and smooth linear motion. Featuring a recirculating ball bearing guide and a double-acting mode of operation, this actuator ensures high performance in demanding applications. With a stroke length of 20 mm, it is designed to handle compressed air with a max operating pressure of 10 bar. The actuator also includes cushioning at both ends for shock absorption and proximity sensing for position feedback.
Manufacturer: Festo
Type: Guided Actuator

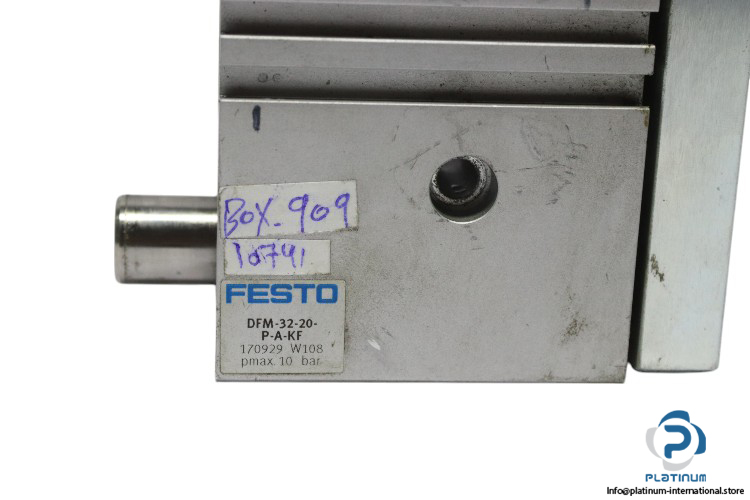

Model: DFM-32-20-P-A-KF
Part No.: 170929
Technical Specifications
- Stroke Length: 20 mm
- Piston Diameter: 32 mm
- Guide: Recirculating ball bearing guide
- Structural Design: Guide
- Operating Medium: Compressed air
- Max. Operating Pressure: 10 bar
- Mode of Operation: Double acting
- Cushioning: Elastic cushioning rings/pads at both ends
- Position Sensing: For proximity sensing
- Pneumatic Connection: G1/8
- Housing Material: Wrought aluminum alloy
- Ambient Temperature: -5 °C to 60 °C
