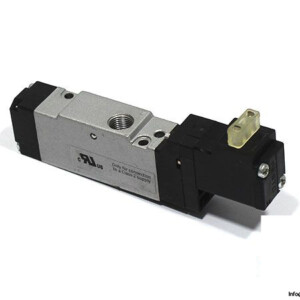

Festo 173126 Single Solenoid Valve
New
In stock4 unitsReady to ship
45,00$
SINGLE SOLENOID VALVE
FESTO MEH-3/2-1/8-P-B valve with 3/2 monostable function and 24 V DC coil ensures reliable air control in demanding pneumatic systems.
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

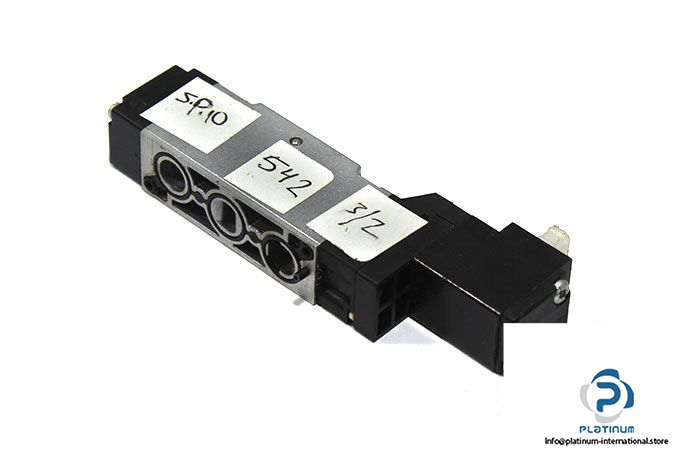

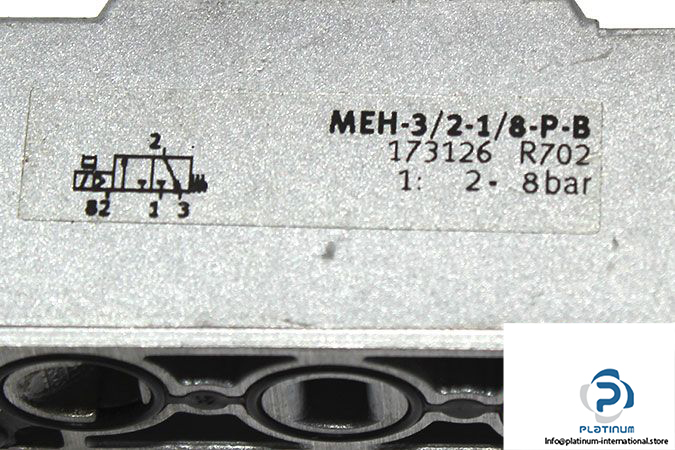

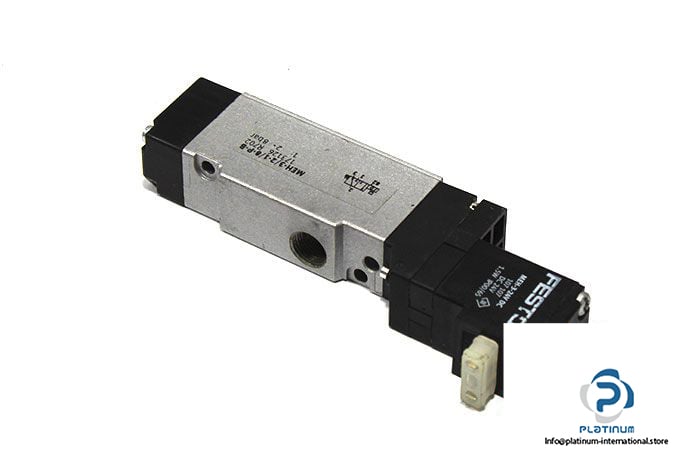

FESTO MEH-3/2-1/8-P-B SINGLE SOLENOID VALVE WITH COIL
The FESTO MEH-3/2-1/8-P-B is a robust and reliable single solenoid valve designed for high-performance pneumatic applications. Featuring a monostable 3/2 closed function and piston slide design, this valve is ideal for precise air control. It comes equipped with the FESTO MEH-3-24V DC solenoid coil for efficient 24 V DC operation.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MEH-3/2-1/8-P-B
Part No.: 173126
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston slide |
| Valve Function | 3/2 closed, monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 2 / 8 bar |
| Nominal Flow Rate | 600 l/min |
| Material | Die-cast aluminium |
| Pneumatic Connection | Sub-base / G1/8 |
| Ambient Temperature | -5 / 50 °C |

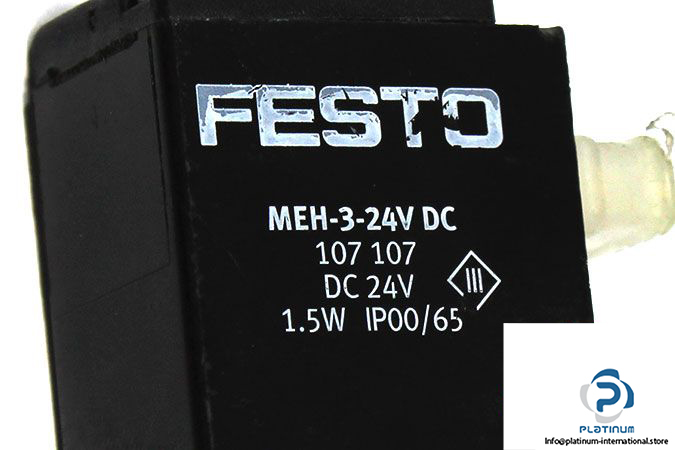

| Attachment | FESTO MEH-3-24V DC SOLENOID COIL |
| Part No. | 107107 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
