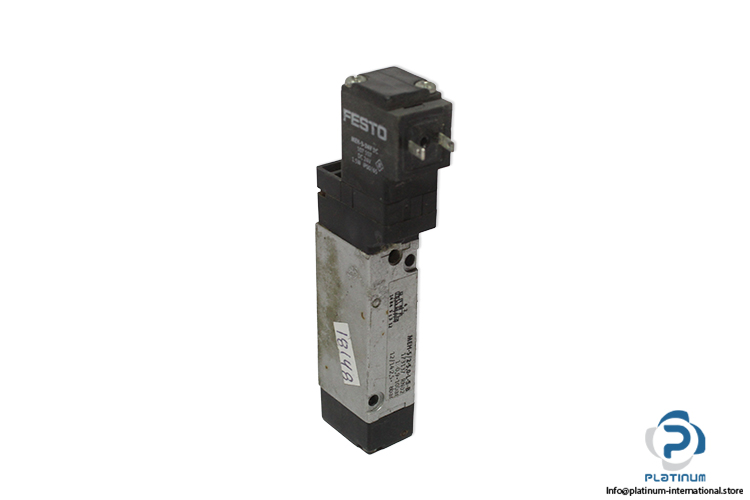

Festo 173137 Single Solenoid Valve
Used
In stock1 unitReady to ship
Solenoid Valve
Festo MEH-5/2-5,0-L-S-B single solenoid valve with 5/2 monostable function, 700 l/min flow rate, and piston slide design, supplied with 24V DC solenoid coil.0-L-S-B17313724v5/2700AircoildcFestoIndustriall/minMEHMEH-3-24VMEH-5/2-5MonostablePistonPneumaticSlidesolenoidValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

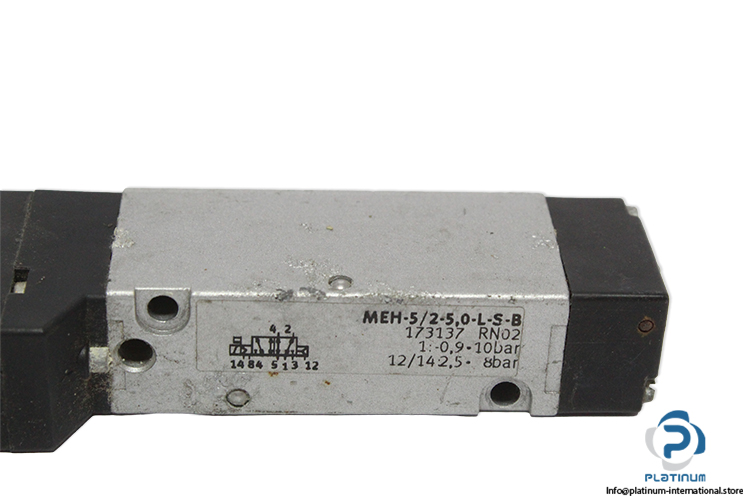

Festo MEH-5/2-5,0-L-S-B Single Solenoid Valve
The Festo MEH-5/2-5,0-L-S-B is a single solenoid valve designed for precise control of compressed air in pneumatic systems. Featuring piston slide design and electrically actuated operation, it ensures reliable switching performance in industrial automation applications.
Manufacturer: Festo
Type: Single Solenoid Valve
Model: MEH-5/2-5,0-L-S-B
Part No.: 173137
Attachment

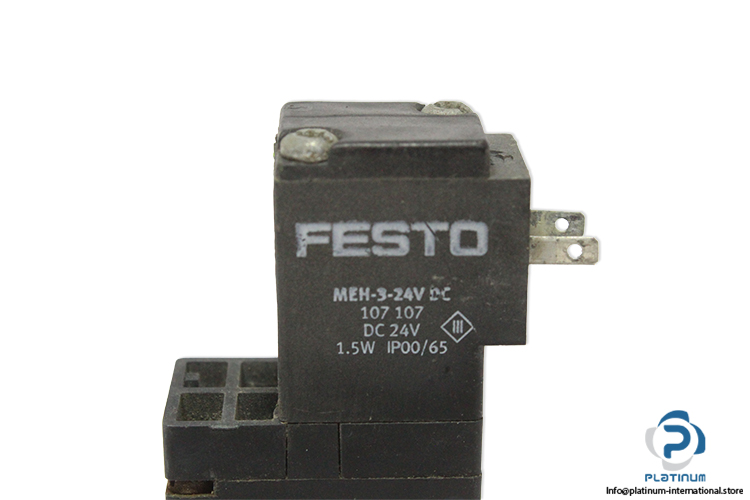

Festo 107 107 Solenoid Coil
| Fluid | Compressed Air |
| Design | Piston Slide |
| Type Of Actuation | Electrically |
| Valve Function | 5/2 Monostable |
| Operating Pressure | -0.9 ... 10 bar |
| Pilot Pressure | 2.5 ... 8 bar |
| Flow Rate | 700 l/min |
| Ambient Temperature | -5 ... 50 °C |
| Pneumatic Connection | 9.4 mm Plug |
| Material | Die-Cast Aluminum |
| Part No. | 107 107 |
| Supply Voltage | 24 V DC |
| Power Consumption | 1.5 W |
| Protection Class | IP00/65 |
