Festo 173406 Single Solenoid Valve
Used
In stock1 unitReady to ship
55,00$
SINGLE SOLENOID VALVE
FESTO MEH-5/2-5,0-I-B valve with MEH-3-0.9 coil provides high-efficiency 5/2 monostable control for air systems, featuring robust die-cast aluminium body and sub-base connection.0-I-B5/2coilconnectionControlFestoIndustrialMEH-3-0.9MEH-5/2-5MonostablePneumaticSinglesolenoidSub-BaseValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

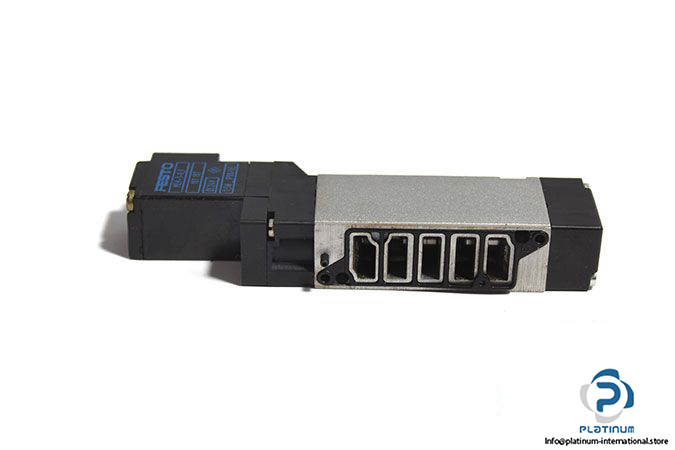

FESTO MEH-5/2-5,0-I-B SINGLE SOLENOID VALVE WITH COIL
The FESTO MEH-5/2-5,0-I-B is a high-performance single solenoid valve designed for pneumatic automation systems. With its robust piston slide design and 5/2 monostable function, it ensures efficient flow control in demanding environments. The unit comes with the FESTO MEH-3-0.9 solenoid coil for reliable electrical actuation.
Manufacturer: FESTO
Type: Single Solenoid Valve

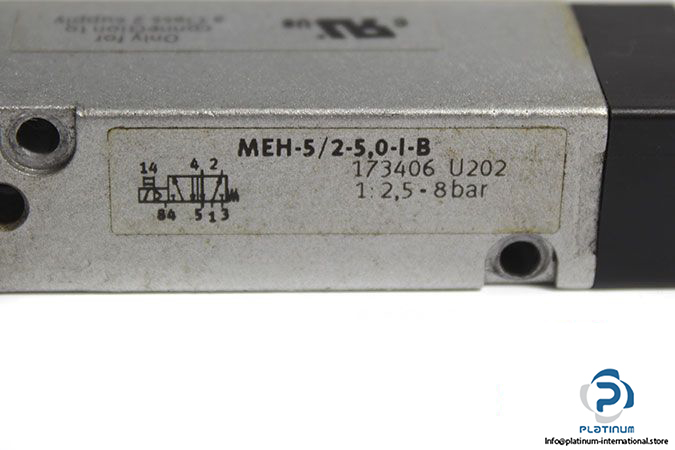

Model: MEH-5/2-5,0-I-B
Part No.: 173406
Coil Technical Information
| Fluid | Air |
| Design Structure | Piston slide |
| Valve Function | 5/2 monostable |
| Type of Actuation | Electrically |
| Operating Pressure | 3 / 8 bar |
| Pilot Pressure | 2.5 ... 8 bar |
| Nominal Flow Rate | 700 l/min |
| Pneumatic Connection | Sub-base |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 / 50 °C |

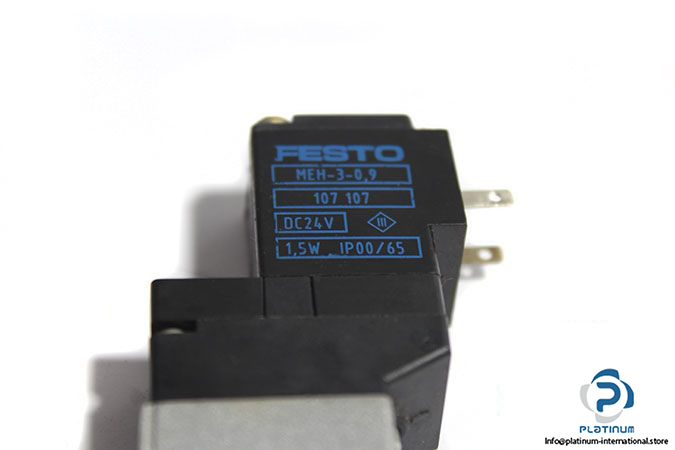

| Attachment | FESTO 107107 SOLENOID COIL |
| Part No. | 107107 |
| Supply Voltage | 24 VDC |
| Power Consumption | 1.5 W |
| Protection Class | IP65 |
