Festo 173940 AIR Solenoid Valve
New
Available on request
AIR SOLENOID VALVE
FESTO CPA14-M1H-5LS air solenoid valve with MSZC-3-21 DC coil features a 5/2 monostable function, high flow rate, and reliable sub-base pneumatic connection.5/2AircoilComponentsCPA14-M1H-5LSdcFestoIndustrialMonostableMSZC-3-21PistonPneumaticSlidesolenoidSub-BaseValve
Used
In stock 75,00$
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

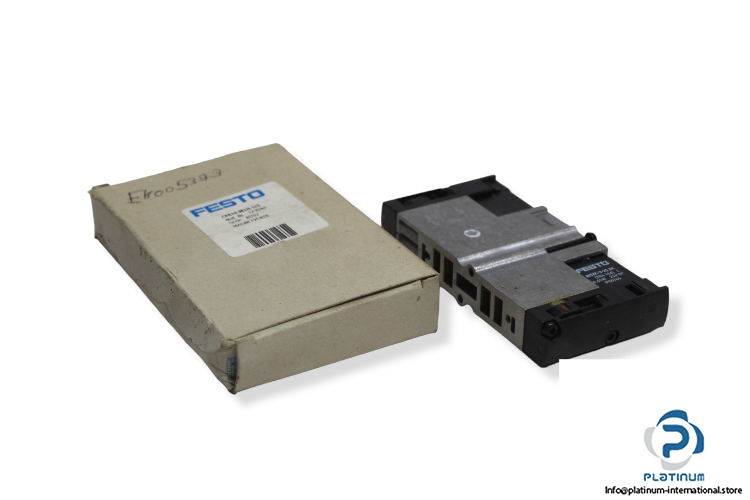

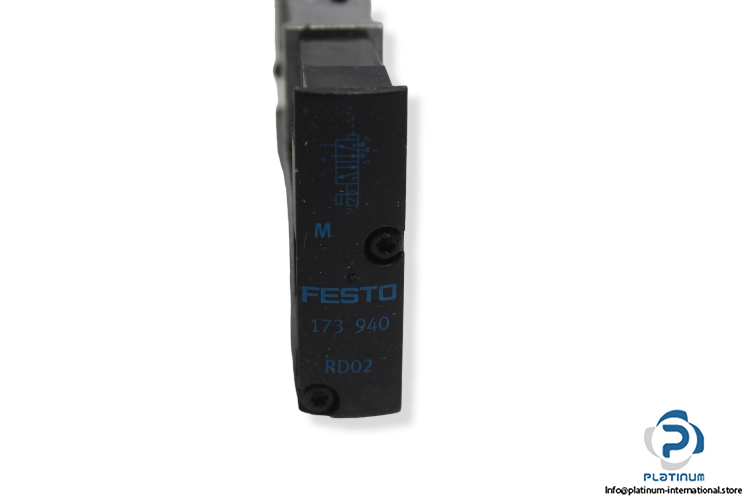

FESTO CPA14-M1H-5LS AIR SOLENOID VALVE WITH MSZC-3-21 DC COIL
The FESTO CPA14M1H5LS is a high-performance 5/2 monostable air solenoid valve engineered for precision pneumatic control. Featuring an electrically actuated piston slide design and robust die-cast aluminum body, it ensures reliable operation in demanding industrial environments. Includes FESTO MSZC-3-21 DC coil for optimal activation performance.
Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPA14-M1H-5LS
Part No.: 173940
Solenoid Coil Technical Information
| Fluid | Air |
| Design | Piston slide |
| Function | 5/2 monostable |
| Type of Actuation | Electrically |
| Operating Pressure | -0.9 ... 10 bar |
| Pilot Pressure | 3 ... 8 bar |
| Nominal Flow Rate | 600 l/min |
| Pneumatic Connection | Sub-base |
| Material | Die-cast aluminium |
| Ambient Temperature | -5 / 50 °C |
| Attachment | FESTO MSZC-3-21 DC SOLENOID COIL |
| Part No. | 384164 |
| Supply Voltage | 21 V DC |
| Power Consumption | 0.65 W |
| Protection Class | IP00 / IP65 |
