FESTO 175135 LINEAR Drive
Used
In stock1 unitReady to ship
Linear Actuator
FESTO DGPL-32-560 linear actuator with 560 mm stroke, double-acting operation, recirculating ball bearing guide, and adjustable cushioning for precise industrial motion control.32560ActingActuatorAluminumBallbearingCylinderDgplDoubleDriveFestoGuideIndustrialLinearMotionPneumaticPPVRecirculatingSystem
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

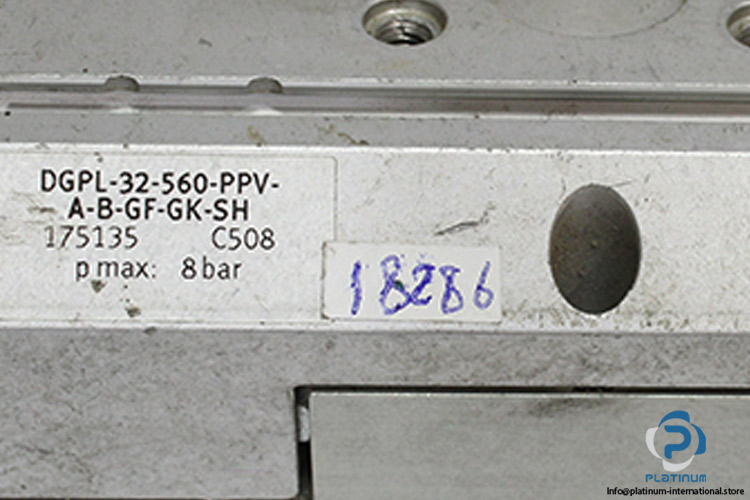

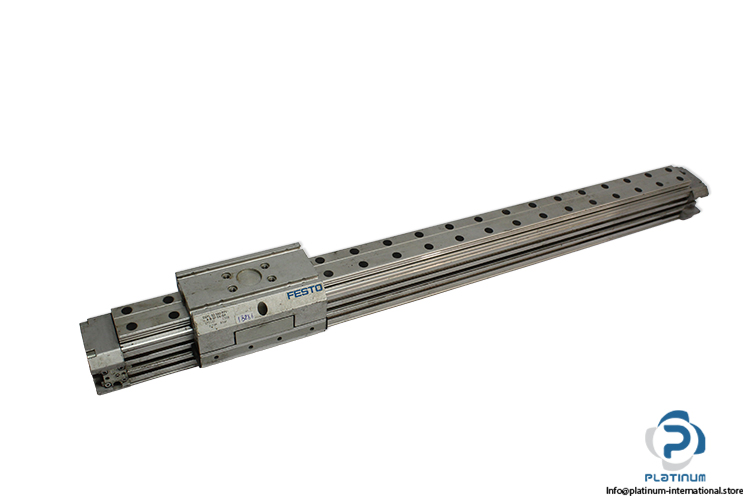

FESTO DGPL-32-560-PPV-A-B-GF-GK-SH Linear Actuator
The FESTO DGPL-32-560-PPV-A-B-GF-GK-SH linear actuator is a high-performance linear drive engineered for precision motion and reliable operation in industrial automation systems. Designed with a robust aluminum housing and advanced recirculating ball bearing guide, it ensures smooth and accurate movement even under demanding conditions.
Manufacturer: FESTO
Type: Linear Actuator / LINEAR Drive
Model: DGPL-32-560-PPV-A-B-GF-GK-SH
Part No.: 175135
| Stroke Length | 560 mm |
| Piston Diameter | 32 mm |
| Operating Medium | Compressed Air |
| Max. Operating Pressure | 8 bar |
| Mode Of Operation | Double-Acting |
| Guide | Recirculating Ball Bearing Guide |
| Cushioning | Adjustable End-Position Cushioning At Both Ends |
| Position Sensing | For Proximity Sensing |
| Housing Material | Aluminum |
| Pneumatic Connection | G1/8 |
| Ambient Temperature | -10 °C / 60 °C |
