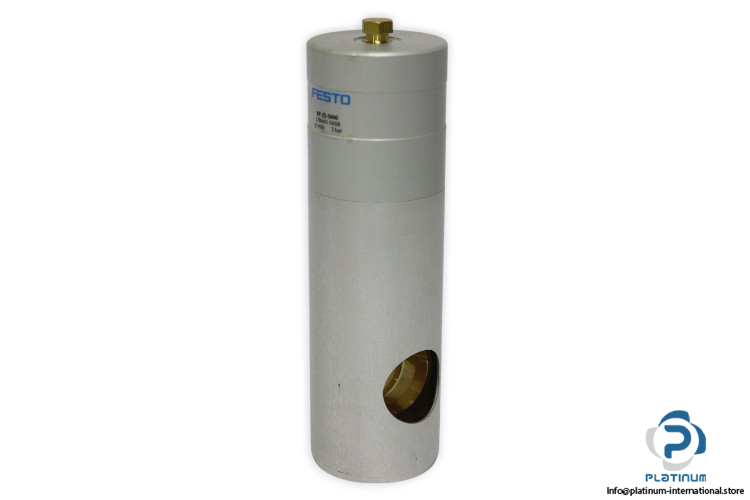

Festo 178460 Clamping Cartridge
New
In stock2 unitsReady to ship
CLAMPING CARTRIDGE
Festo KP-25-5000 is a spring-actuated clamping cartridge with 5000¯N force, designed for secure air-powered clamping of 25¯mm round materials.5000NActuatedAircartridgeClampClampingFestoForceIndustrialKP-25-5000materialMechanismPistonPneumaticRODRoundtiltingWedge
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

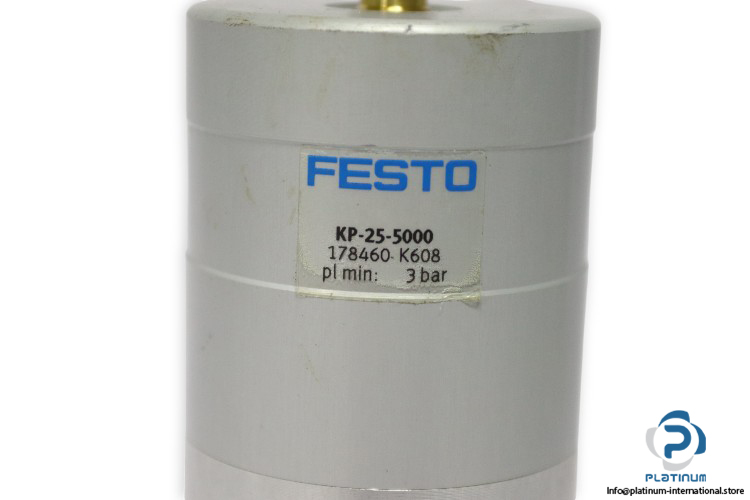

FESTO KP-25-5000 CLAMPING CARTRIDGE
The Festo KP-25-5000 clamping cartridge is designed for high-force, spring-actuated clamping applications using compressed air. Engineered with a tilting wedge mechanism, it provides secure holding with reliable performance in demanding industrial settings.
Manufacturer: Festo
Type: Clamping Cartridge
Model: KP-25-5000
Part No.: 178460
Ref. Code: K608
| Operating Pressure | up to 10¯bar; release pressure ‰¥¯3¯bar |
| Design | Tilting wedge mechanism |
| Variants | Piston rod at one end |
| Fluid | Air |
| Housing Material | Anodized aluminum |
| Jaw Material | Brass |
| Seal Material | NBR & TPE‘U |
| Round Material to Be Clamped | 25 mm |
| Clamping Force | 5000¯N (spring-actuated) |
| Ambient Temperature | -10 to +80¯°C |
