Festo 18200 Valve Terminals With 2 Valves

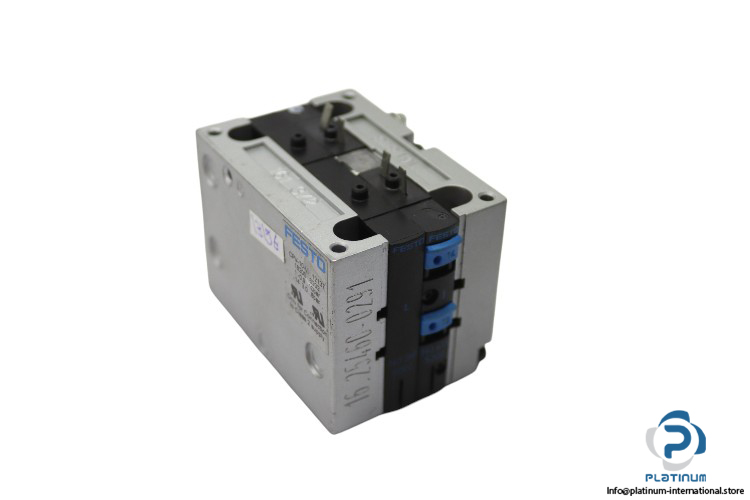

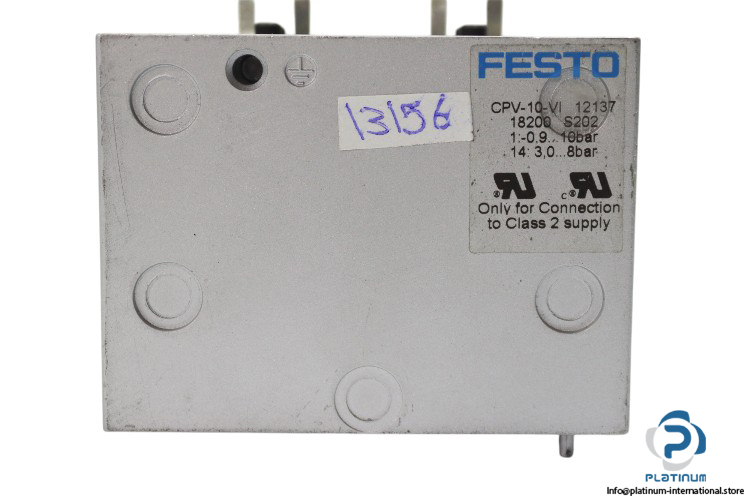

Festo CPV-10-VI Valve Terminals With 2 Valves

The Festo CPV-10-VI valve terminal is a high-performance solution featuring two electromagnetically actuated piston spool valves, designed to handle air solenoid valve functions. With a nominal flow rate of 400 l/m and various pneumatic connections, this valve terminal is ideal for controlling pneumatic systems with a broad operating pressure range of -0.9 to 10 bar.

Manufacturer: FESTO

Type: Valve Terminals With 2 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve
• Valve Functions:

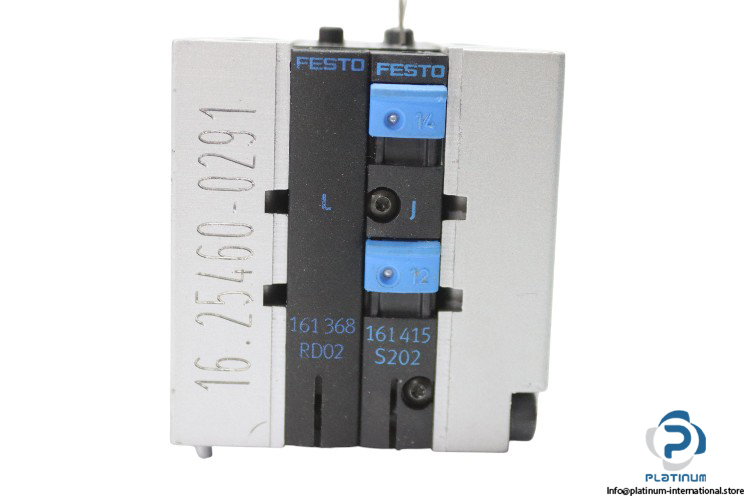

  • 1x Air Solenoid Valve (FESTO 161368)
  • 1x Air Solenoid Valve (FESTO 161415)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply Ports (1/11): G1/8
  • Exhaust Ports (3/5): G3/8
  • Working Ports (2/4): M7
  • Pilot Air Supply Ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / 10 bar
  • Port (2): 3 / 8 bar
• Ambient Temperature: -5 / +50 °C
• Operating Voltage: 24 VDC
