Festo 18200 Valve Terminals With 8 Valves
New
In stock3 unitsReady to ship
Valve Terminals with 8 Valves
The Festo CPV-10-VI valve terminal features 8 valves with electromagnetically actuated piston spool design, offering reliable pneumatic control with 400 l/m flow and 24 VDC operating voltage.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

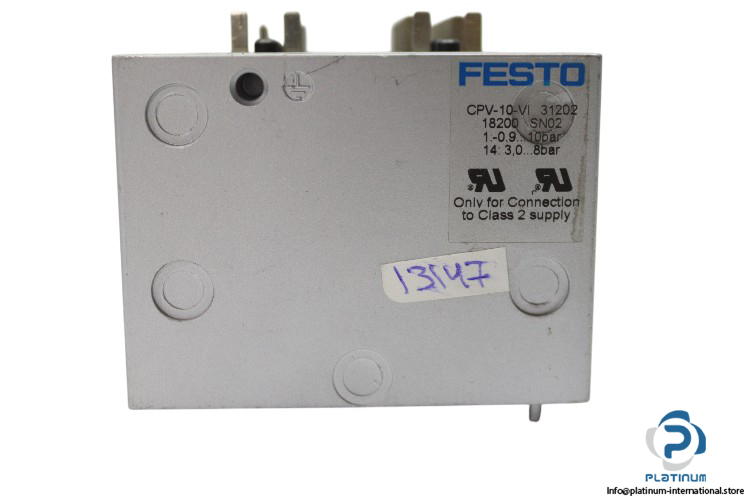

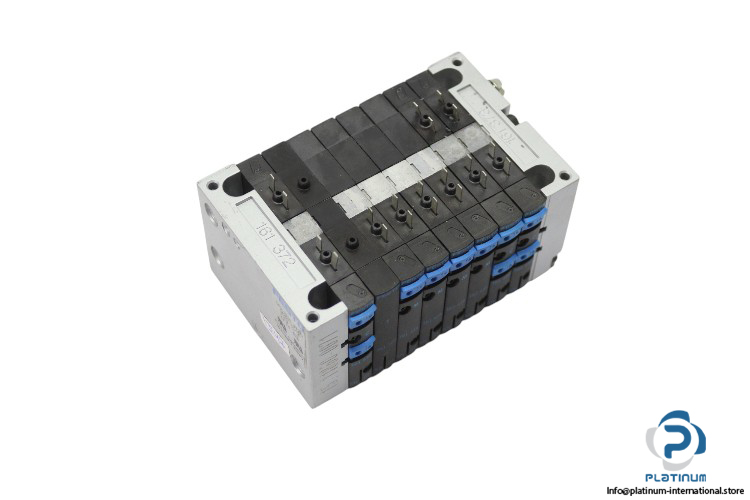

Festo CPV-10-VI Valve Terminals with 8 Valves
The Festo CPV-10-VI valve terminal offers high-performance control for pneumatic systems, featuring a design with electromagnetically actuated piston spool valves. It includes a combination of air solenoid valves for versatile system integration and reliable performance across varying pressure and temperature conditions.
Manufacturer: FESTO
Type: Valve Terminals with 8 Valves
Model: CPV-10-VI
Part No.: 18200
Technical Data:
- Design: Electromagnetically Actuated Piston Spool Valve

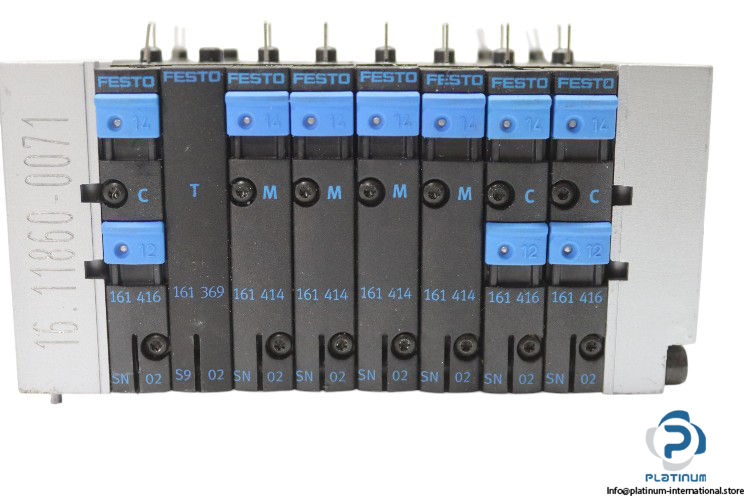

- Valve Functions:
- 3x Air solenoid valve (FESTO 161416)
- 4x Air solenoid valve (FESTO 161414)
- 1x Air solenoid valve (FESTO 161369)
- Width: 10 mm
- Nominal Flow Rate without Fitting: 400 l/m
- Pneumatic Connections:
- Supply ports (1/11): G1/8
- Exhaust ports (3/5): G3/8
- Working ports (2/4): M7
- Pilot air supply ports (12/14): M5
- Pilot exhaust air ports (82/84): M5
- Operating Pressure:
- Port (1): -0.9 / . 10 bar
- Port (2): 3 / . 8 bar
- Ambient Temperature: -5 / . +50 °C
- Operating Voltage: 24 VDC
