Festo 18200 Valve Terminals With 8 Valves

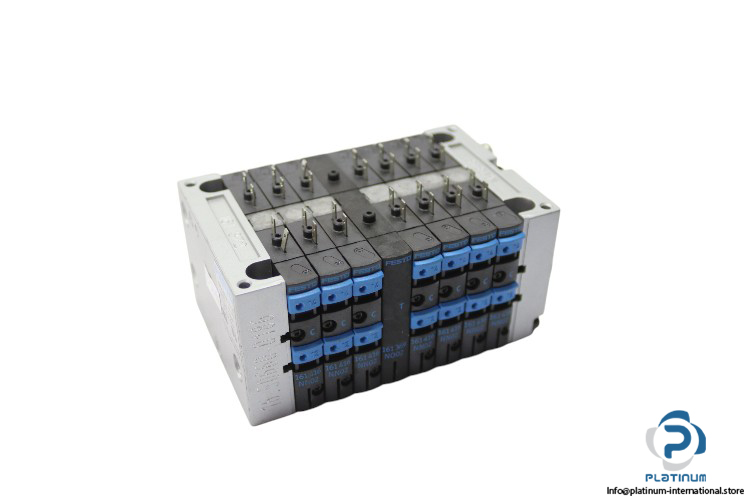

Festo CPV-10-VI Valve Terminals with 8 Valves

The **Festo CPV-10-VI** valve terminal is a highly efficient and compact solution for industrial automation, equipped with 8 valves, including a combination of 7 air solenoid valves and 1 air solenoid valve. Designed for electromagnetically actuated piston spool valves, it provides reliable control of pneumatic systems in various industrial applications.

Manufacturer: FESTO

Type: Valve Terminals with 8 Valves

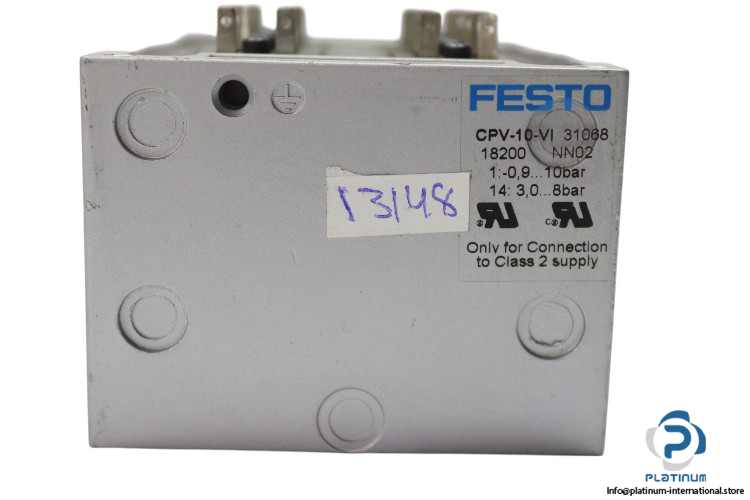

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve

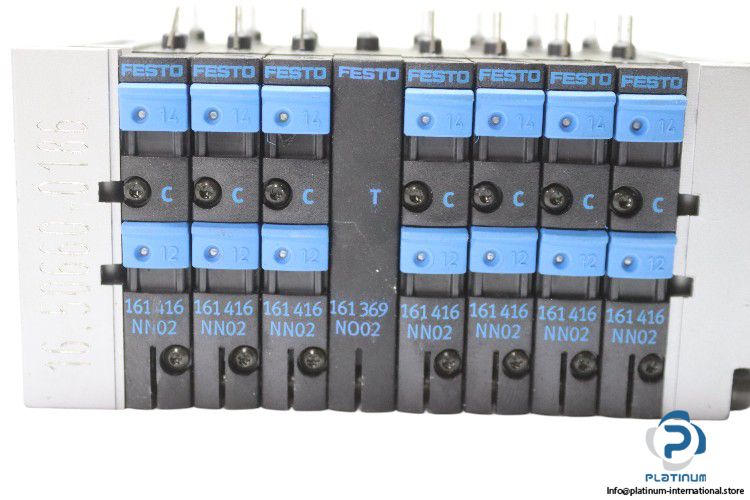

• Valve Functions: 7x Air solenoid valve (FESTO 161416), 1x Air solenoid valve (FESTO 161369)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply Ports (1/11): G1/8
  • Exhaust Ports (3/5): G3/8
  • Working Ports (2/4): M7
  • Pilot Air Supply Ports (12/14): M5
  • Pilot Exhaust Air Ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / . 10 bar
  • Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
