Festo 18200 Valve Terminals With 8 Valves

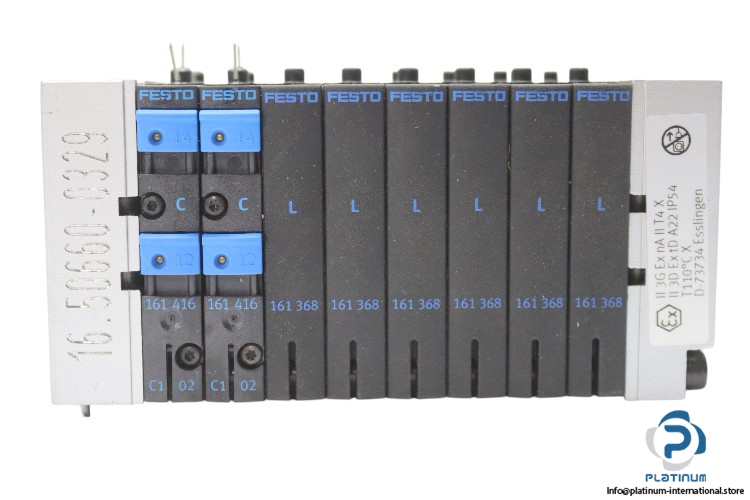

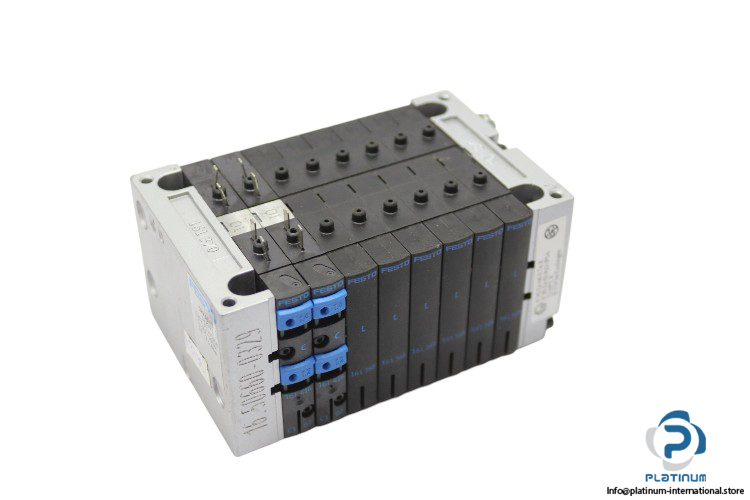

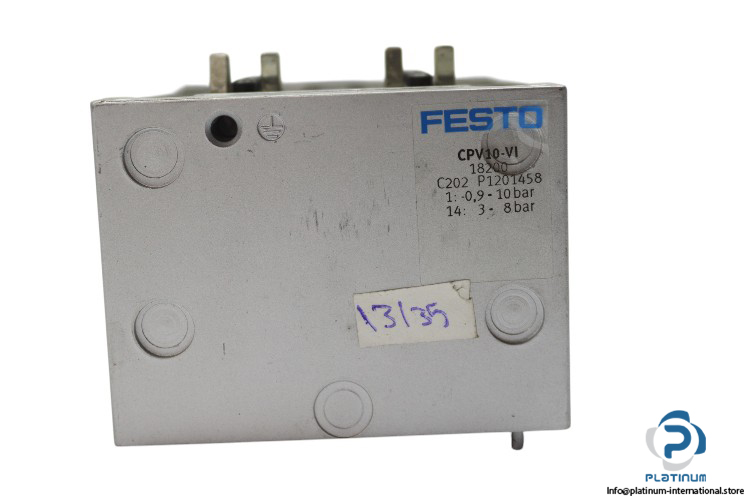

Festo CPV-10-VI Valve Terminals with 8 Valves

The Festo CPV-10-VI valve terminal is an electromagnetically actuated piston spool valve designed for high-performance pneumatic control. With a total of 8 valves, this valve terminal offers reliable air solenoid functions and a nominal flow rate of 400 l/m, making it an ideal choice for automation systems requiring precision and efficiency.

Manufacturer: FESTO

Type: Valve Terminals with 8 Valves

Model: CPV-10-VI

Part No.: 18200

Technical Data:

• Design: Electromagnetically Actuated Piston Spool Valve
• Valve Functions:
  • 6x Air solenoid valve (FESTO 161368)
  • 2x Air solenoid valve (FESTO 161416)
• Width: 10 mm
• Nominal Flow Rate without Fitting: 400 l/m
• Pneumatic Connections:
  • Supply ports (1/11): G1/8
  • Exhaust ports (3/5): G3/8
  • Working ports (2/4): M7
  • Pilot air supply ports (12/14): M5
  • Pilot exhaust air ports (82/84): M5
• Operating Pressure:
  • Port (1): -0.9 / . 10 bar
  • Port (2): 3 / . 8 bar
• Ambient Temperature: -5 / . +50 °C
• Operating Voltage: 24 VDC
