Festo 18200 Valve Terminals With 8 Valves
New
In stock2 unitsReady to ship
Valve Terminals with 8 Valves
The FESTO CPV-10-VI is a valve terminal with 8 electromagnetically actuated piston spool valves. Offering a nominal flow rate of 400 l/m, it supports a variety of pneumatic connections and operates at 24 VDC, ideal for automation systems.248AirAutomationElectricalelectromagneticFestoIndustrialInterfacePistonPneumaticsolenoidspoolterminalTerminalsValveVDC
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

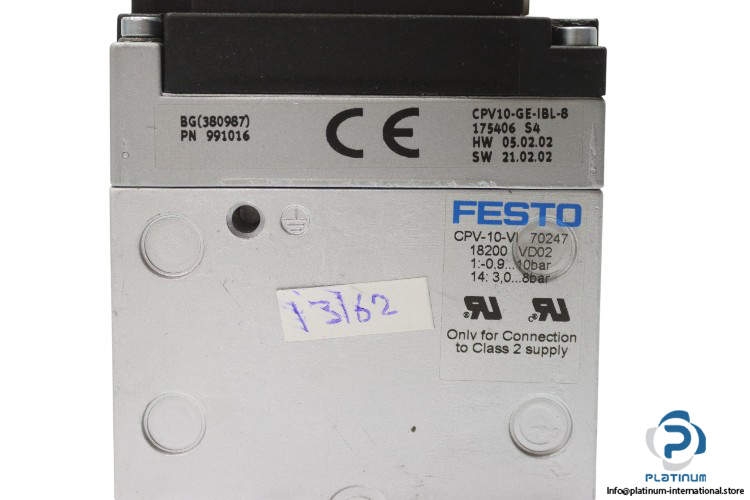

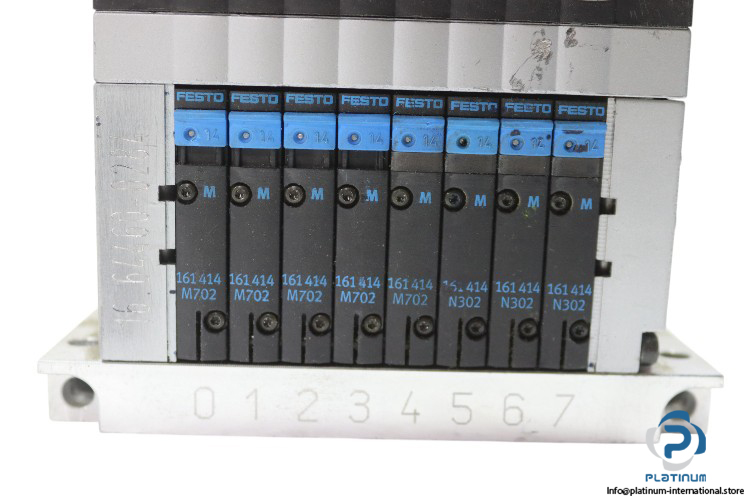

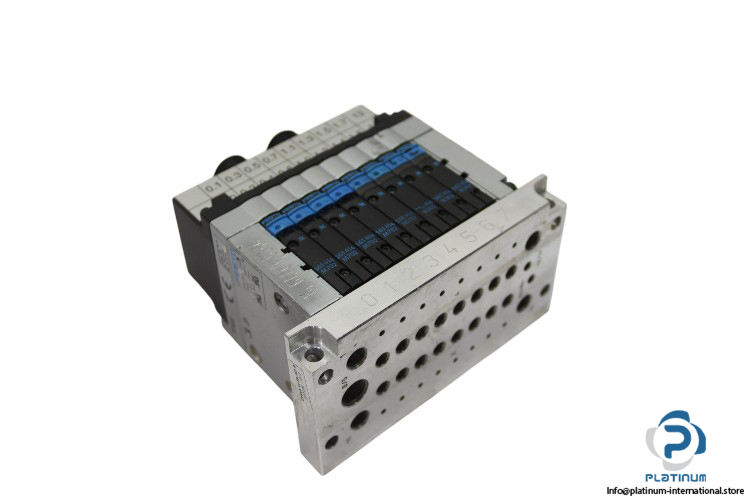

FESTO CPV-10-VI Valve Terminals with 8 Valves
The FESTO CPV-10-VI valve terminal is designed for high-performance automation systems. Featuring 8 electromagnetically actuated piston spool valves, it delivers precise control and efficient operation in industrial pneumatic applications. The system offers a nominal flow rate of 400 l/m, and it is accompanied by the FESTO 175406 electrical interface for enhanced compatibility and functionality.
Manufacturer: FESTO
Type: Valve Terminals with 8 Valves
Model: CPV-10-VI
Part No.: 18200
Technical Data:
- Design: Electromagnetically Actuated Piston Spool Valve
- Valve Functions: 8x Air solenoid valve (FESTO 161414)
- Width: 10 mm
- Nominal Flow Rate without Fitting: 400 l/m
- Pneumatic Connections:
- Supply Ports (1/11): G1/8
- Exhaust Ports (3/5): G3/8
- Working Ports (2/4): M7
- Pilot Air Supply Ports (12/14): M5
- Pilot Exhaust Air Ports (82/84): M5
- Operating Pressure:
- Port (1): -0.9 / . 10 bar
- Port (2): 3 / . 8 bar
- Ambient Temperature: -5 / . +50 °C
- Operating Voltage: 24 VDC
- Attached With: FESTO 175406 Electrical Interface
Electrical Interface (FESTO 175406)
- Process Data Channel (Outputs): 16 bits
- Address Space (Outputs): 8 bits
